Terminal And Reference Value For Power Window Sub-Switch (Front Passenger Side)/With Front Left And Right Power Window Anti-Pinch System

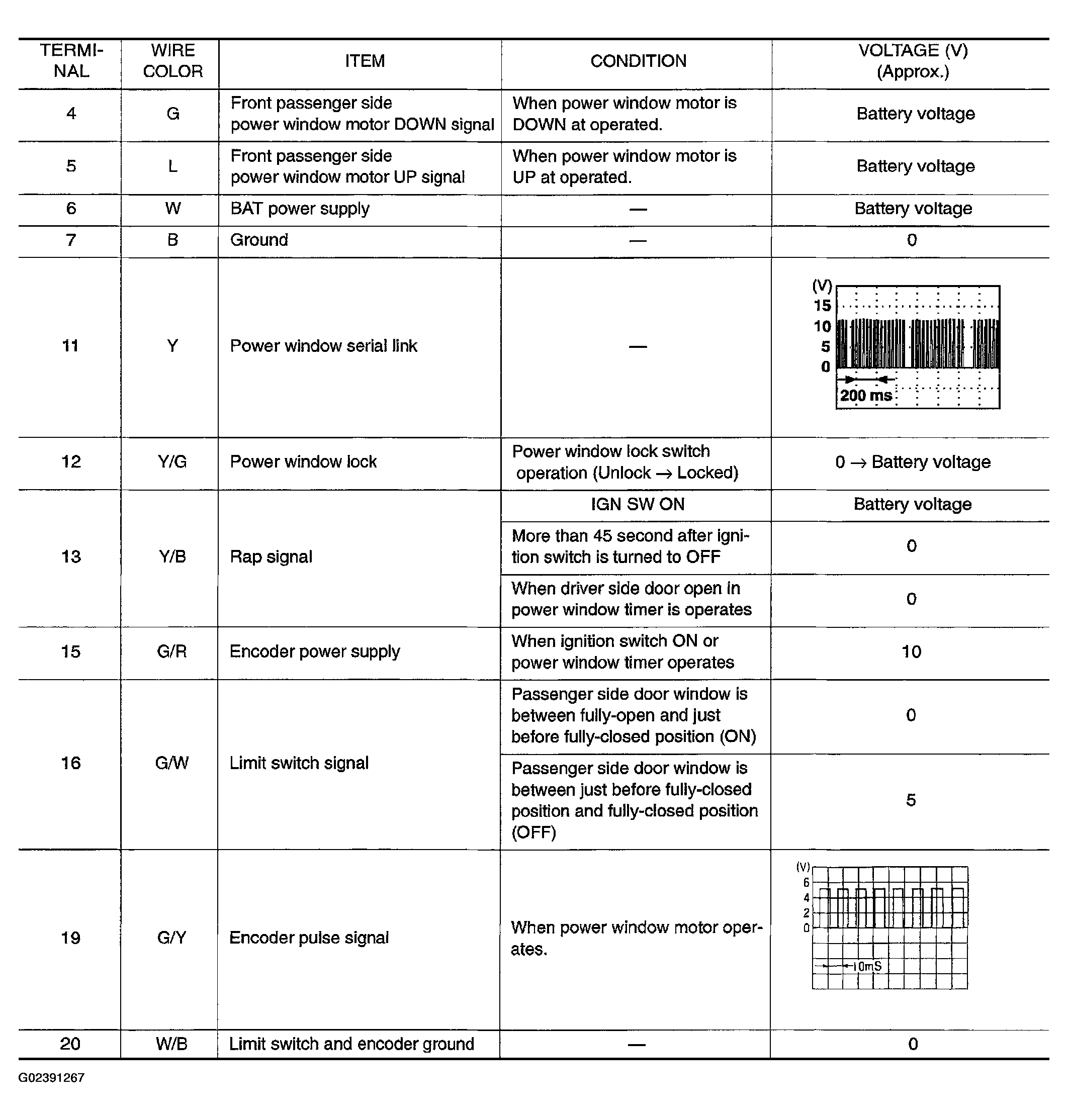

Fig 1: Power Window Sub-Switch (Front Passenger Side) Terminal And Reference Value Table/With Front Left And Right Power Window Anti-Pinch System
G02391267Courtesy of NISSAN MOTOR CO., U.S.A.
