2WD Models

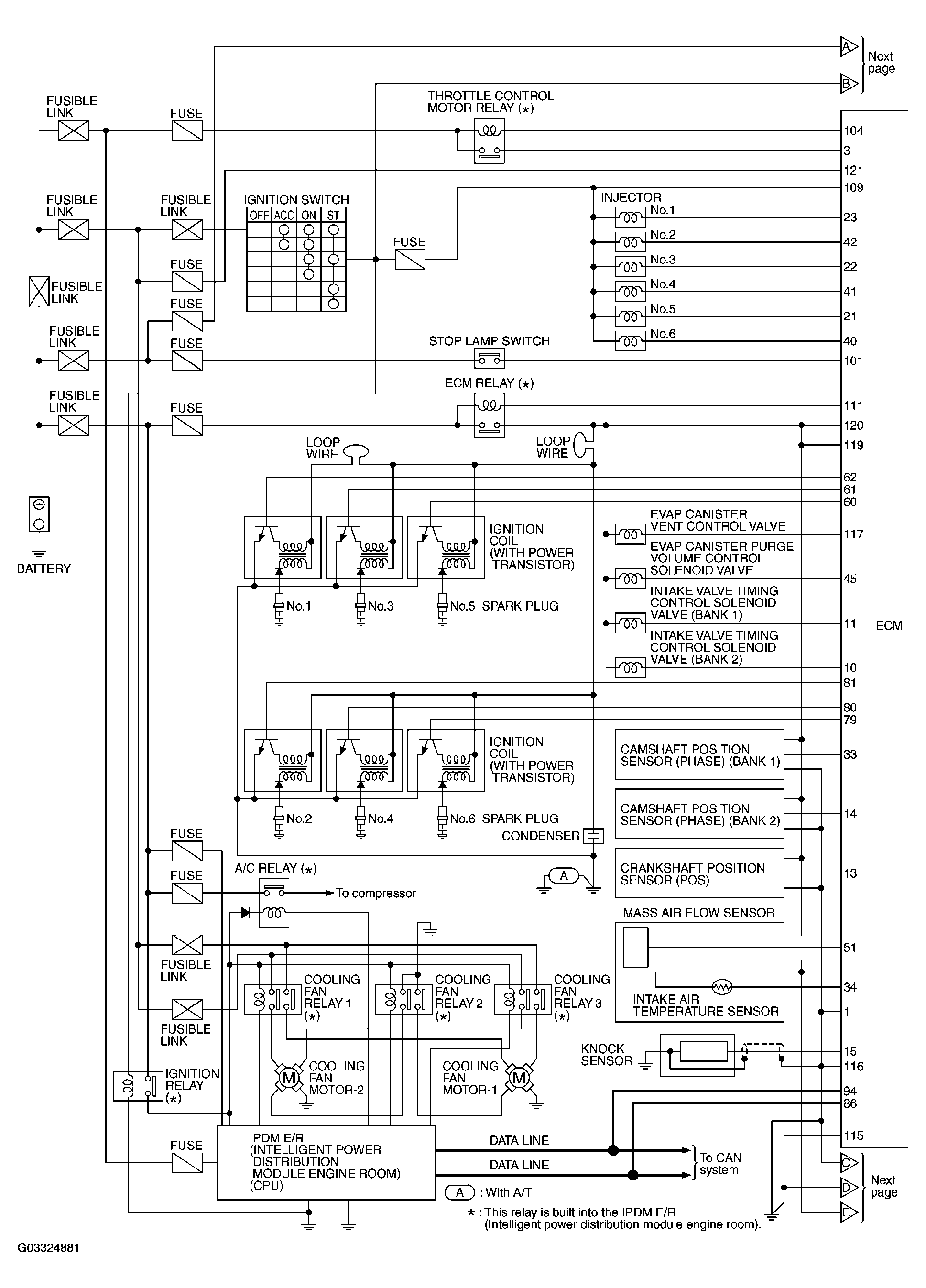

Fig 1: Circuit Diagram 2WD Models (1 Of 2)
G03324881Courtesy of NISSAN MOTOR CO., U.S.A.

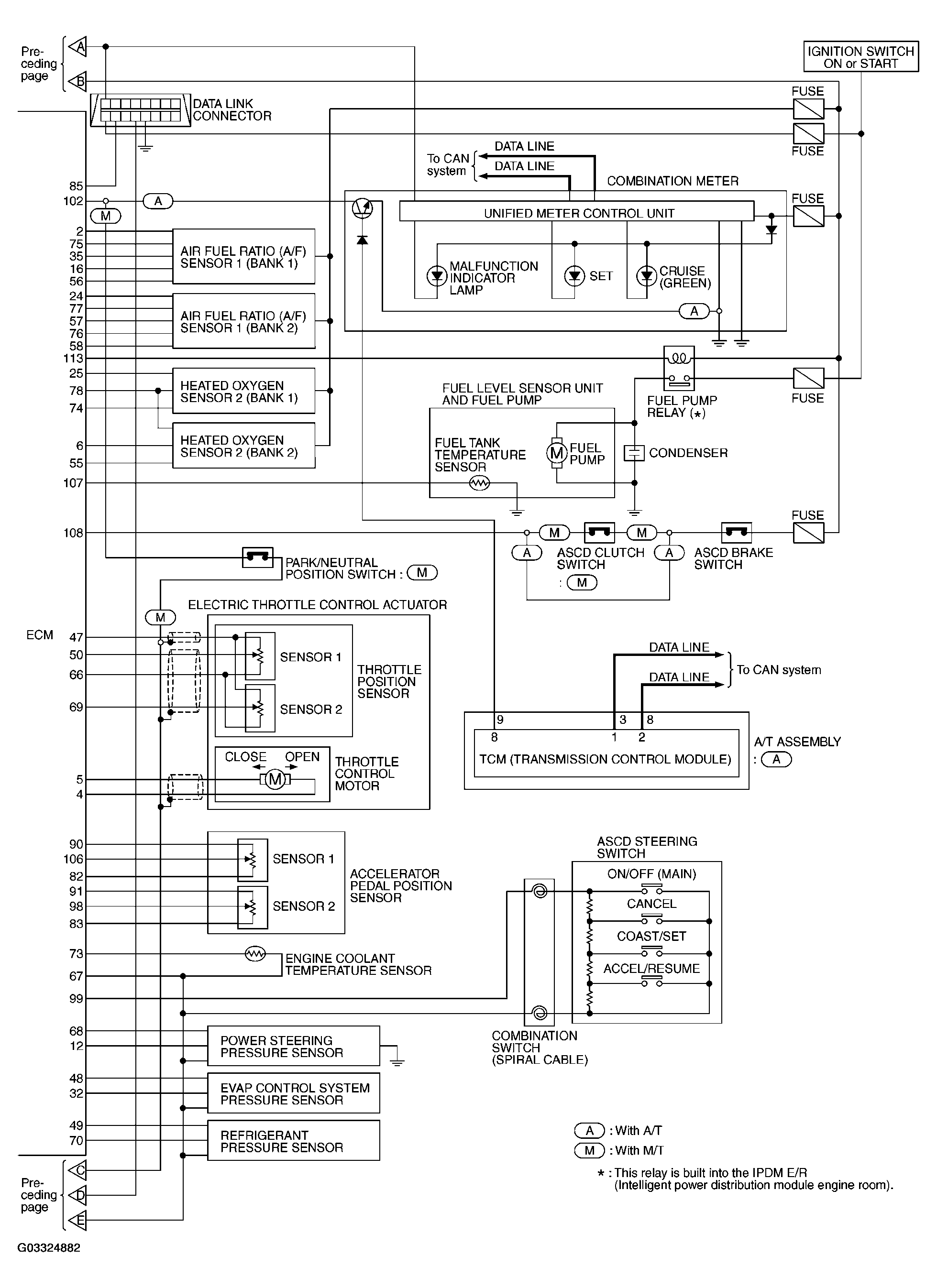

Fig 2: Circuit Diagram 2WD Models (2 Of 2)
G03324882Courtesy of NISSAN MOTOR CO., U.S.A.
