3 Check Reclining Encoder Open Circuit

  1. Disconnect seat control unit LH connector and reclining device LH connector.
  2. Check harness continuity between seat control unit LH connector and reclining LH connector.

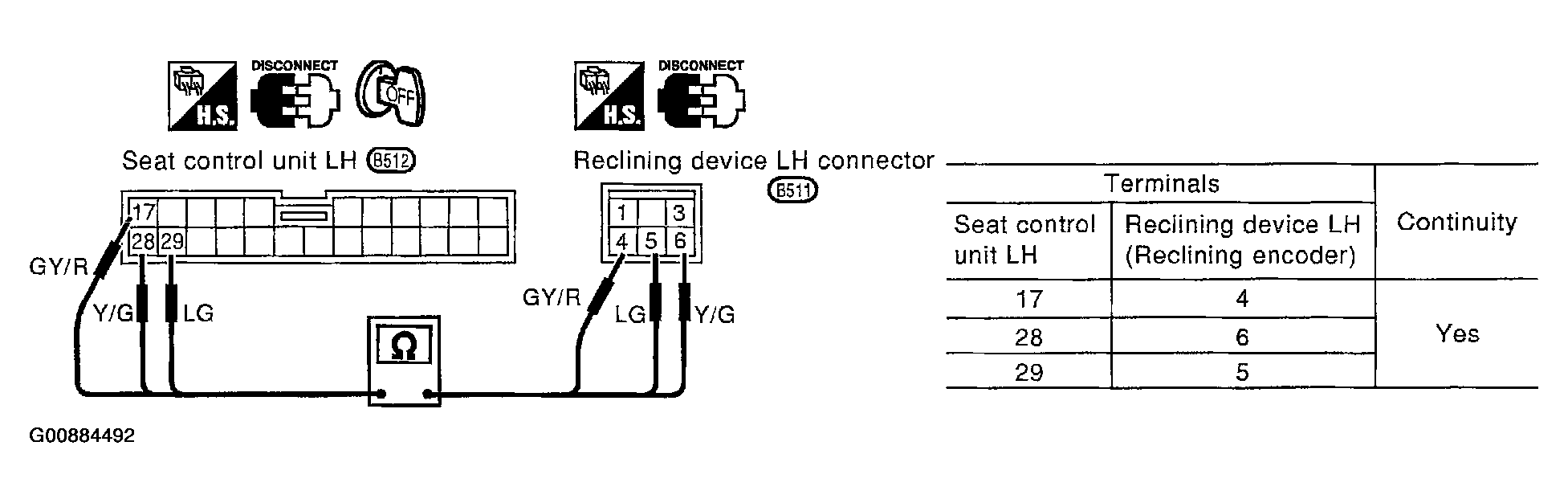

    Fig 1: Checking Reclining Encoder For Open Circuit
    G00884492Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 4.

NG: Repair harness.
