Abs - Service Data And Specifications (SDS)
>>
Service Data And Specifications (SDS)
>>
Abs Wheel Sensor
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Abs Wheel Sensor

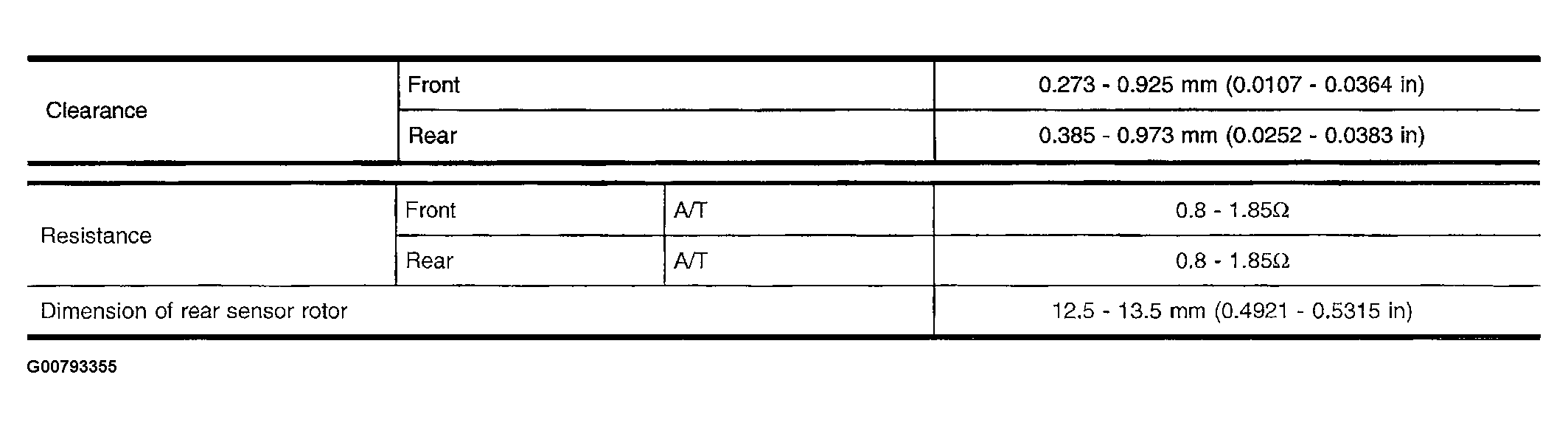

Fig 1: ABS Wheel Sensor Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
