DTC P0705: Park/Neutral Position Switch
>>
Description
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
DTC P0705: Park/Neutral Position Switch: Description: Notes
The park/neutral position (PNP) switch includes a transmission range switch.
The transmission range switch detects the selector lever position and sends a signal to the TCM.

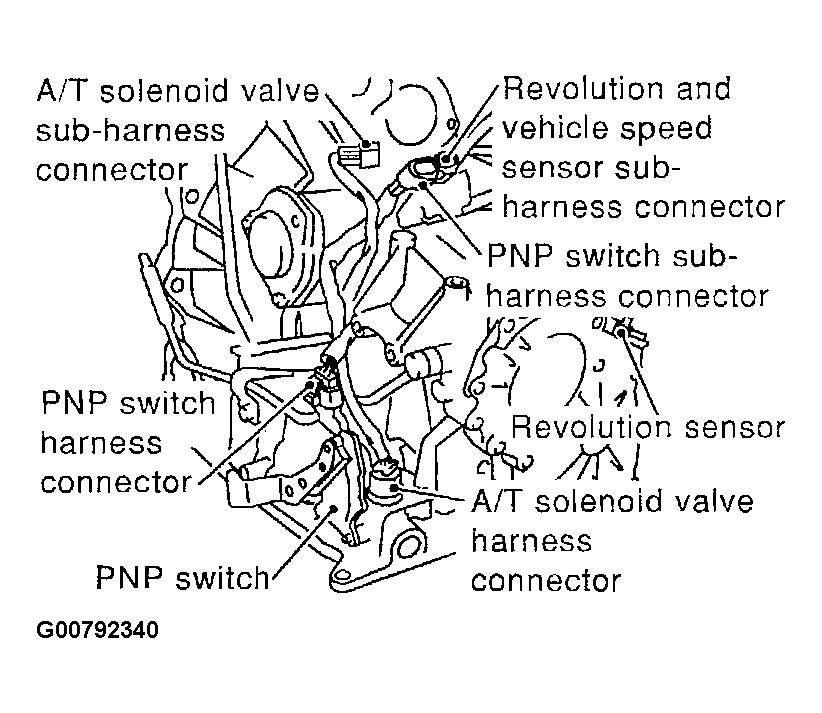

Fig 1: Locating Park/Neutral Position (PNP) Switch System
Courtesy of NISSAN MOTOR CO., U.S.A.
