Vehicle Information System: Notes

  1. Press "INFO" switch to display vehicle information display.

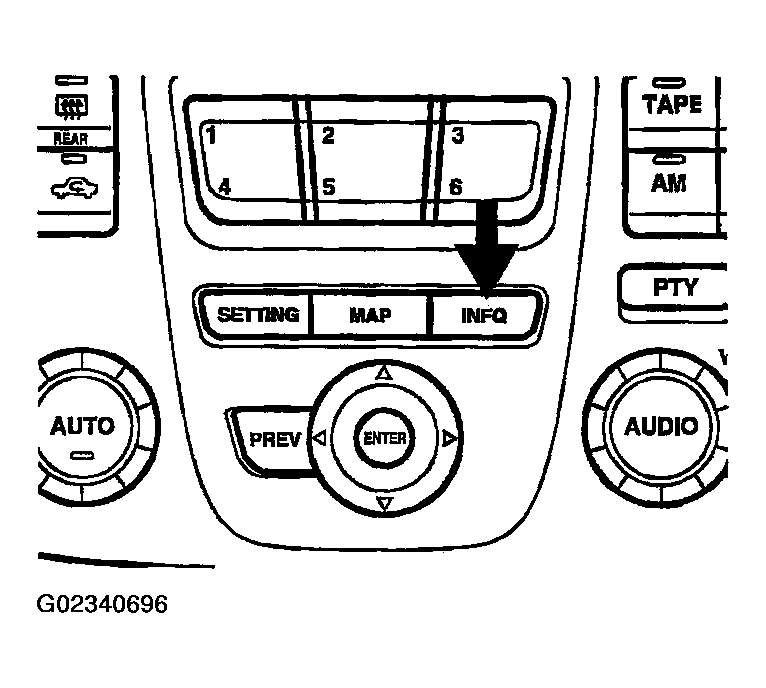

    Fig 1: Locating INFO Switch On Vehicle Information Display
    G02340696Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Select "Trip Computer", "Fuel Economy", "Maintenance" or "Tire Pressure".

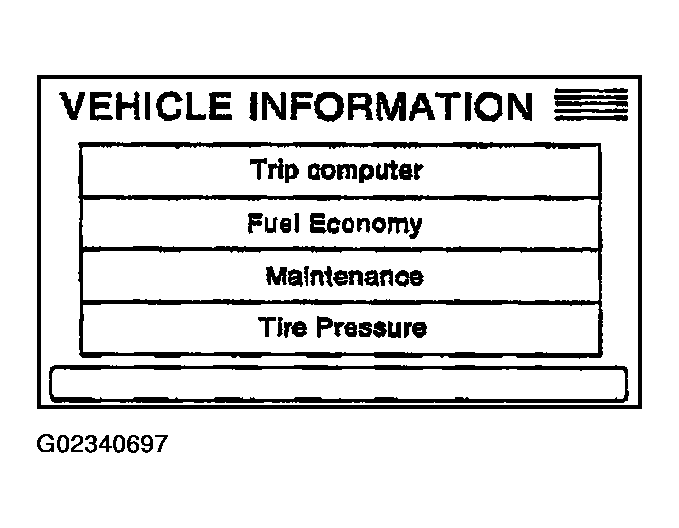

    Fig 2: Identifying Select Vehicle Information Display
    G02340697Courtesy of NISSAN MOTOR CO., U.S.A.

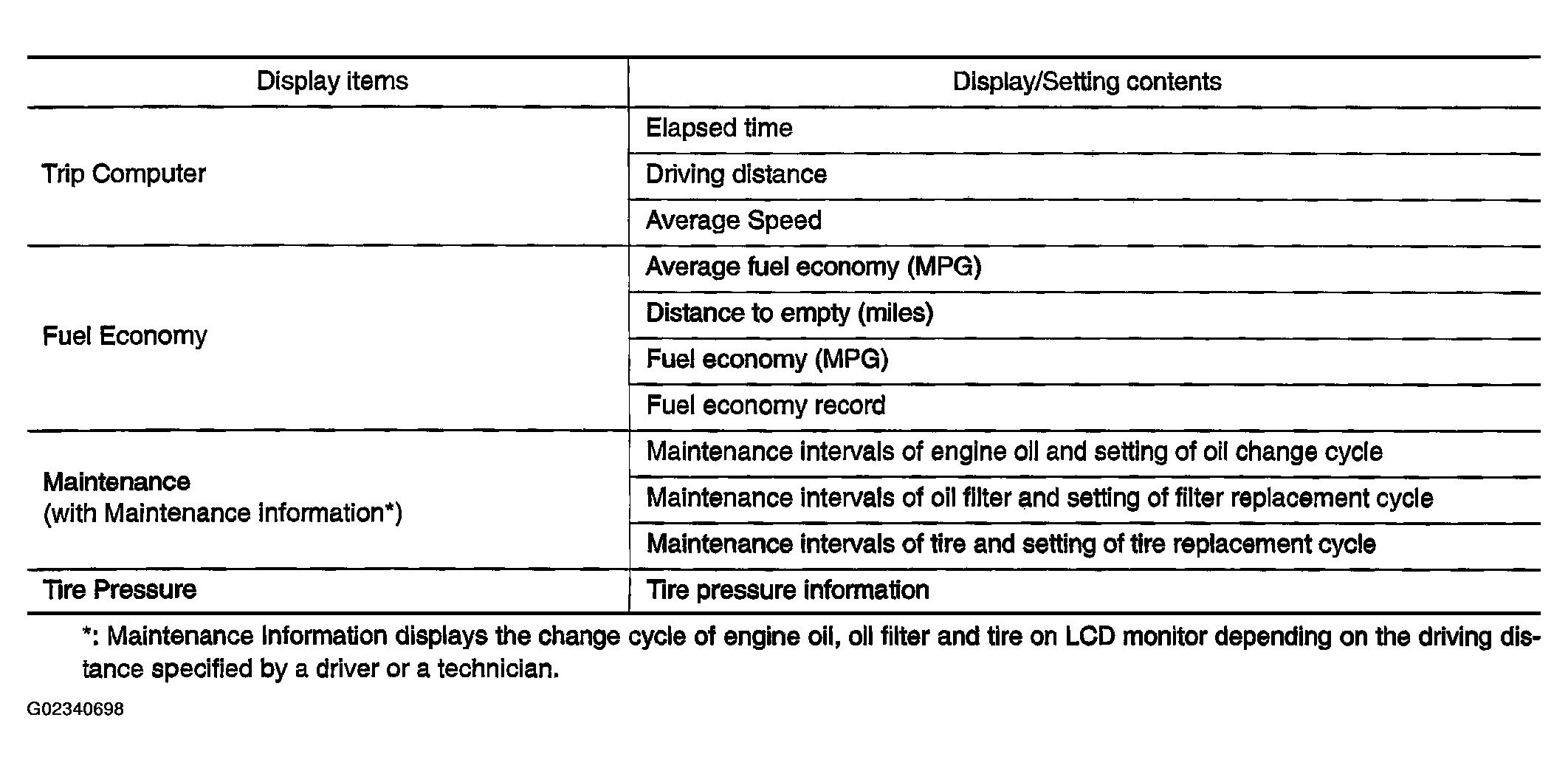

    Fig 3: Select Item Display Chart
    G02340698Courtesy of NISSAN MOTOR CO., U.S.A.
