Disassembly And Assembly

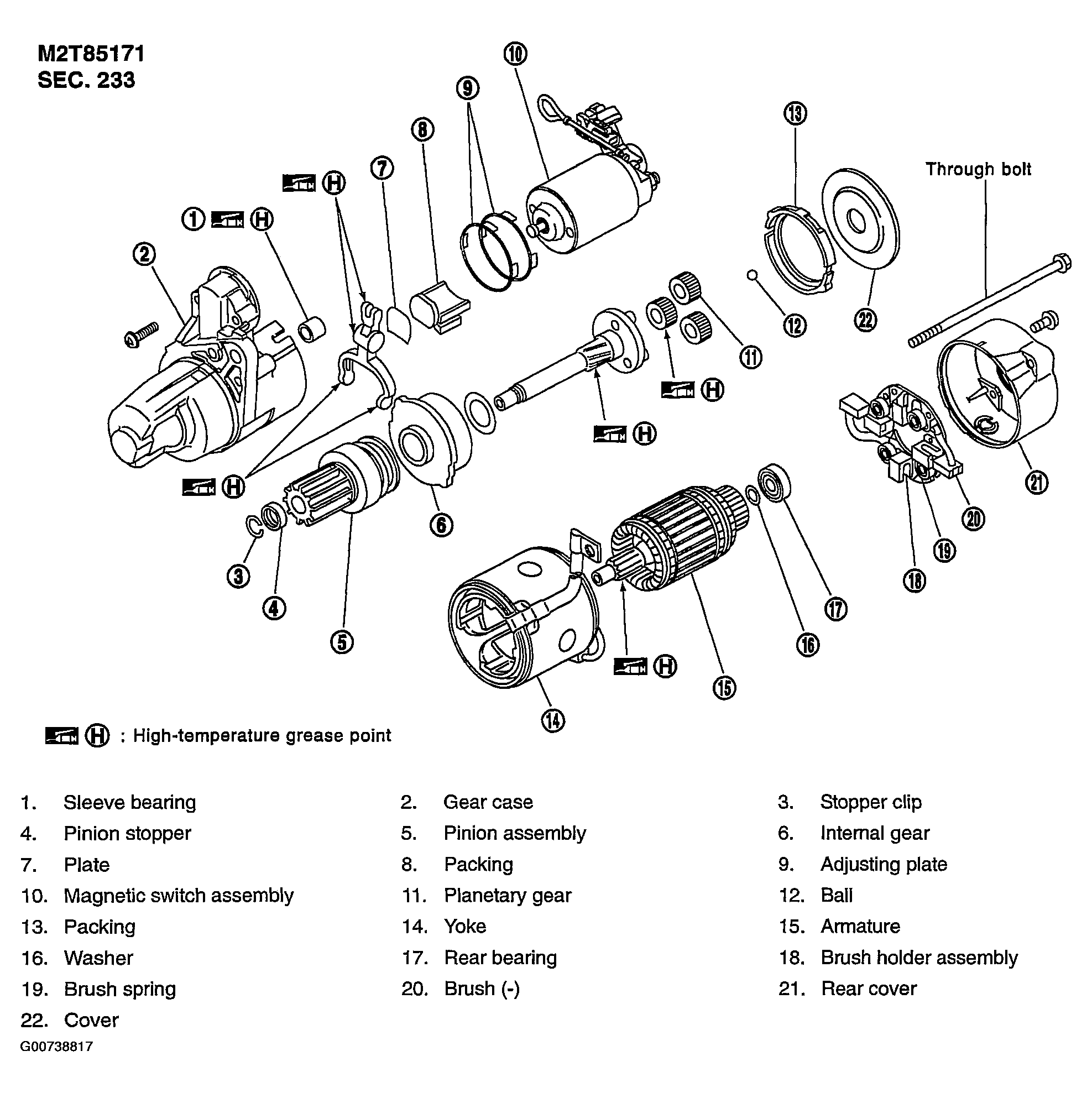

Fig 1: Disassembling & Assembling Starter Motor
G00738817Courtesy of NISSAN MOTOR CO., U.S.A.

Through bolt: 5.6 - 10.4 N.m (0.57 - 1.06 kg-m, 49.5 - 92.0 in-lb)
