Overall Inspection Sequence

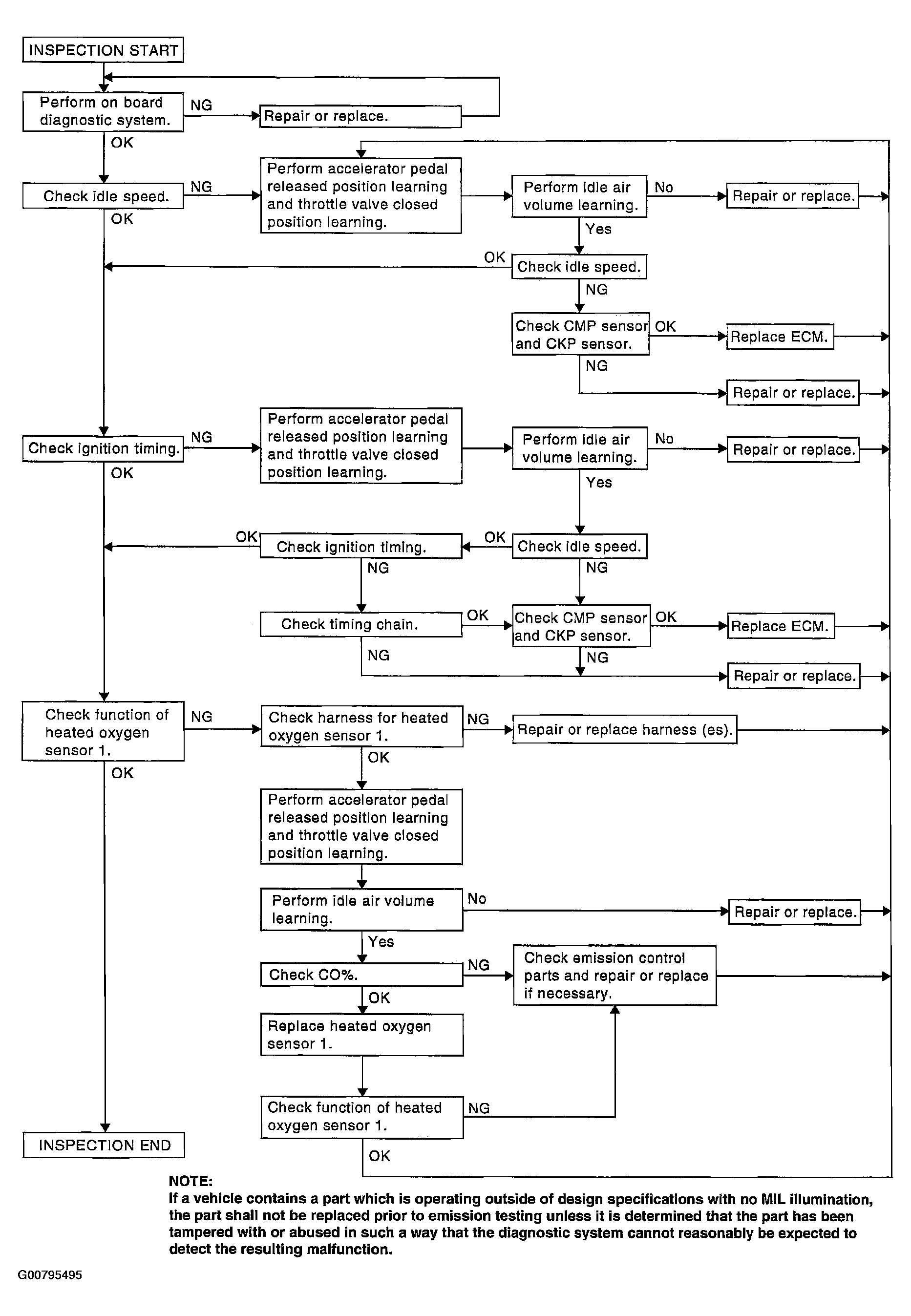

Fig 1: Identifying Overall Inspection Sequence Information
G00795495Courtesy of NISSAN MOTOR CO., U.S.A.
