M45
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control System
>>
Evaporative Emission System
>>
Description
>>
Evaporative Emission Line Drawing
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Evaporative Emission Line Drawing

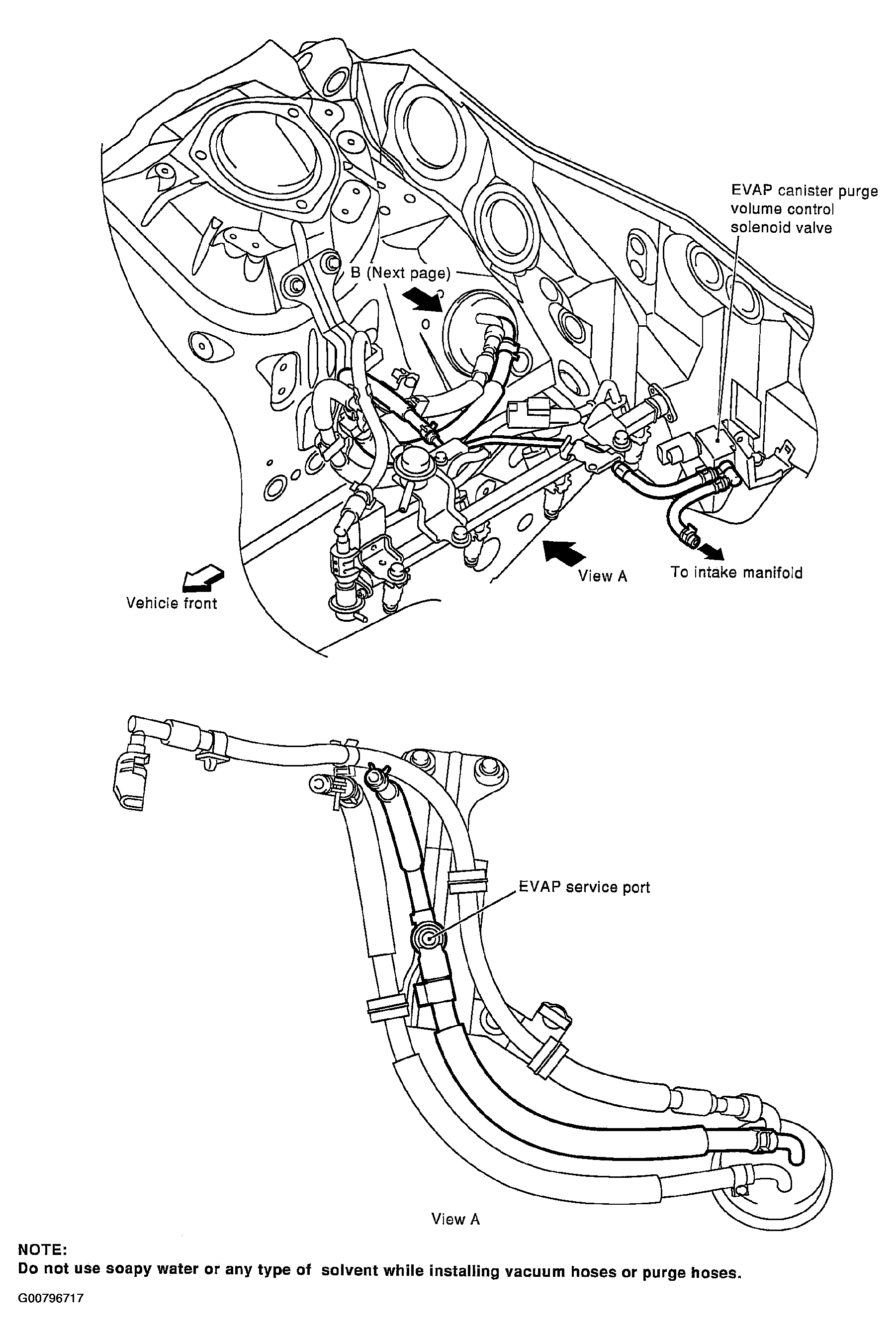

Fig 1: Evaporative Emission System (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
View from under the vehicle

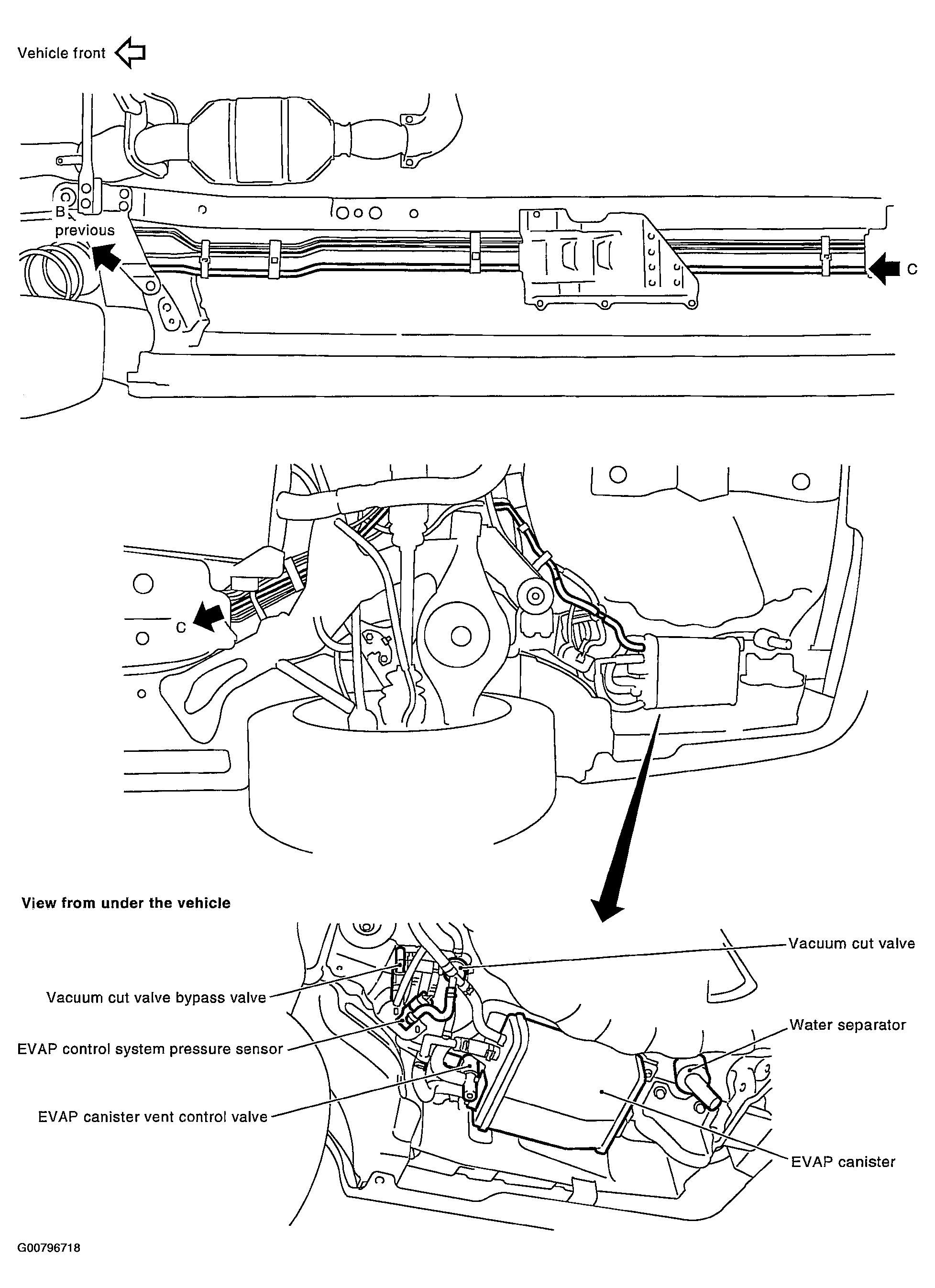

Fig 2: Evaporative Emission System (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
