Removal And Installation: Notes

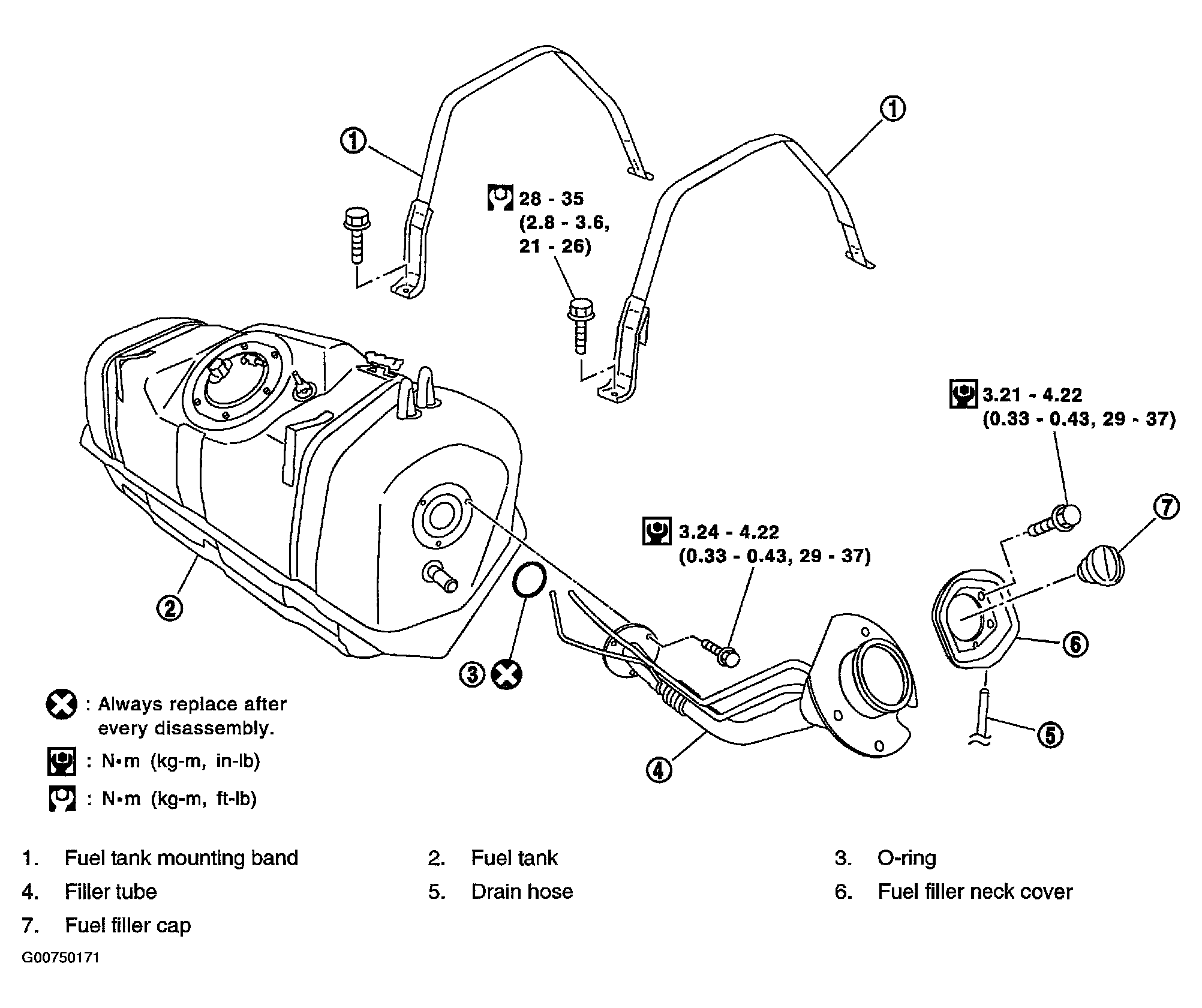

Fig 1: Removal & Installation Of Fuel Tank
G00750171Courtesy of NISSAN MOTOR CO., U.S.A.
