BCM Input/Output Signal Standard
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
BCM Input/Output Signal Standard

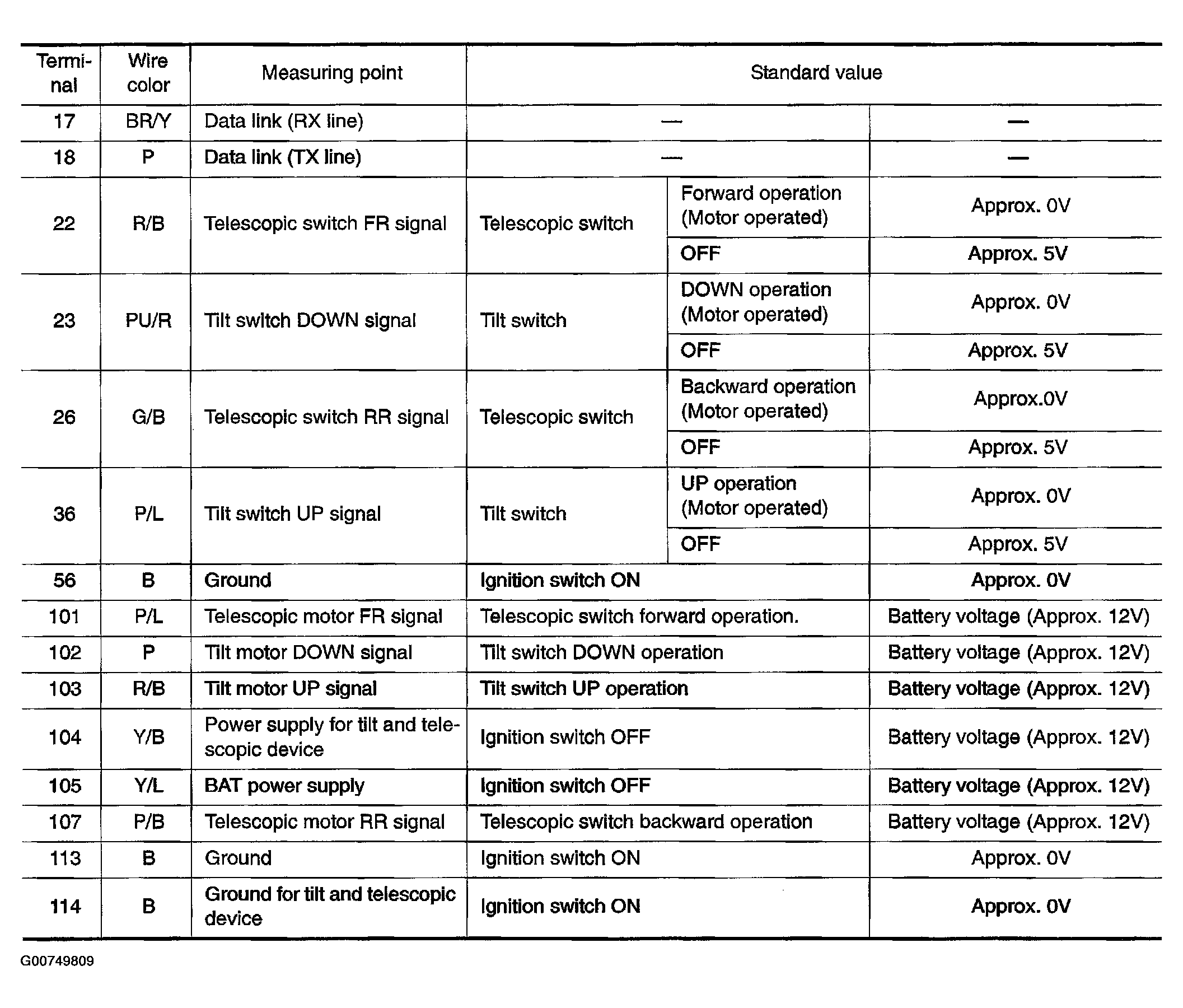

Fig 1: BCM Input/Output Signal Standard
Courtesy of NISSAN MOTOR CO., U.S.A.
