Terminals and Reference Value for Steering Lock Control Unit

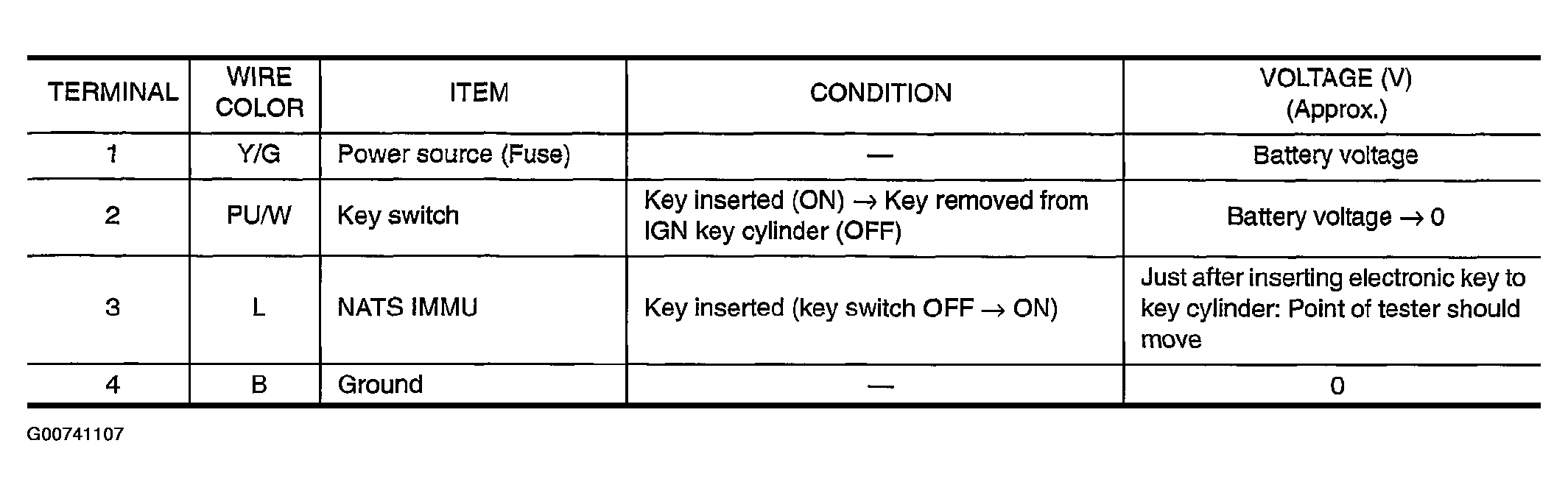

Fig 1: Terminals & Reference Value For Steering Lock Control Unit
Courtesy of NISSAN MOTOR CO., U.S.A.
