Terminals and Reference Value for AV and NAVI Control Unit

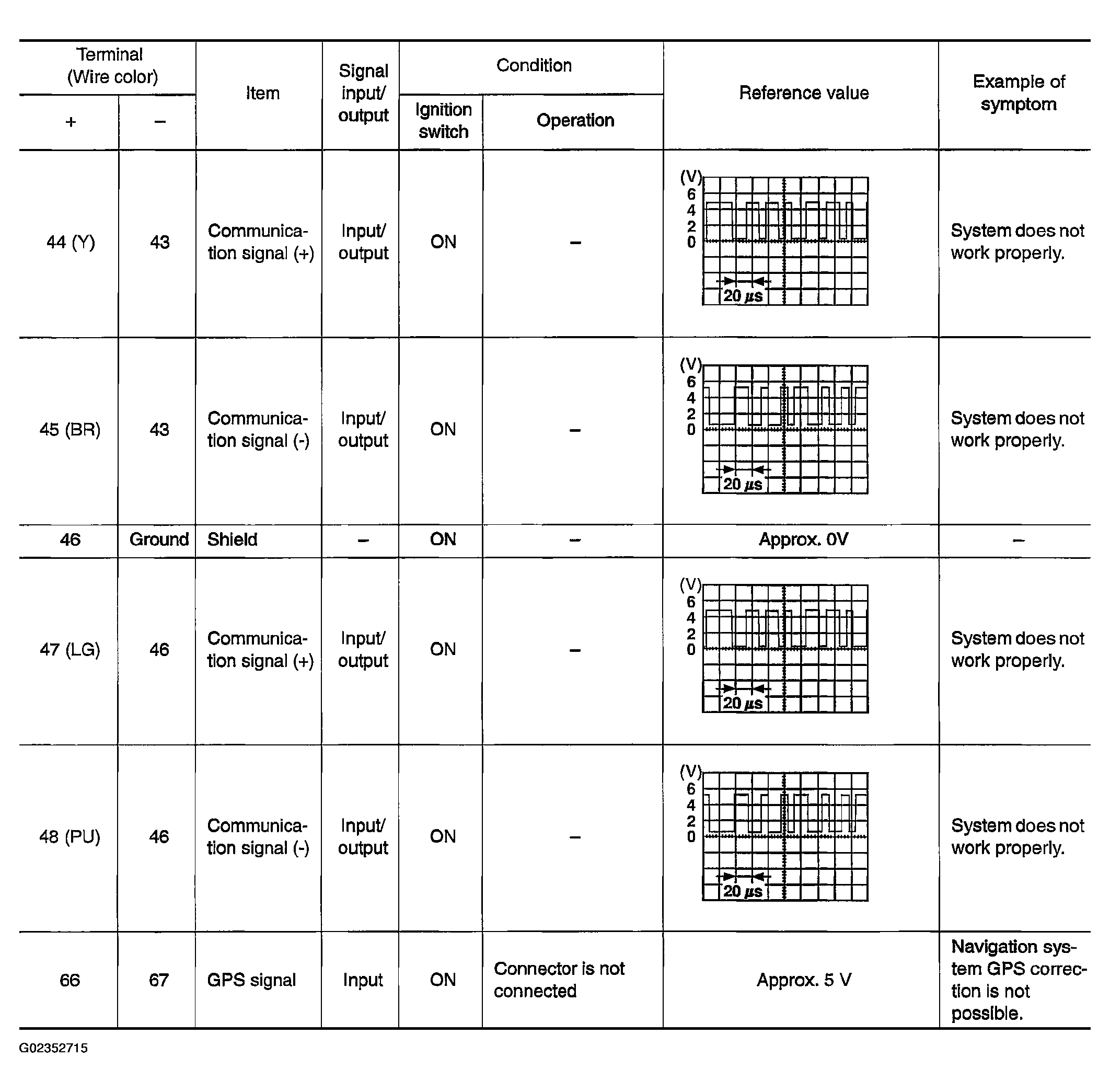

Fig 1: AV And NAVI Control Unit Reference Value And Terminals (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

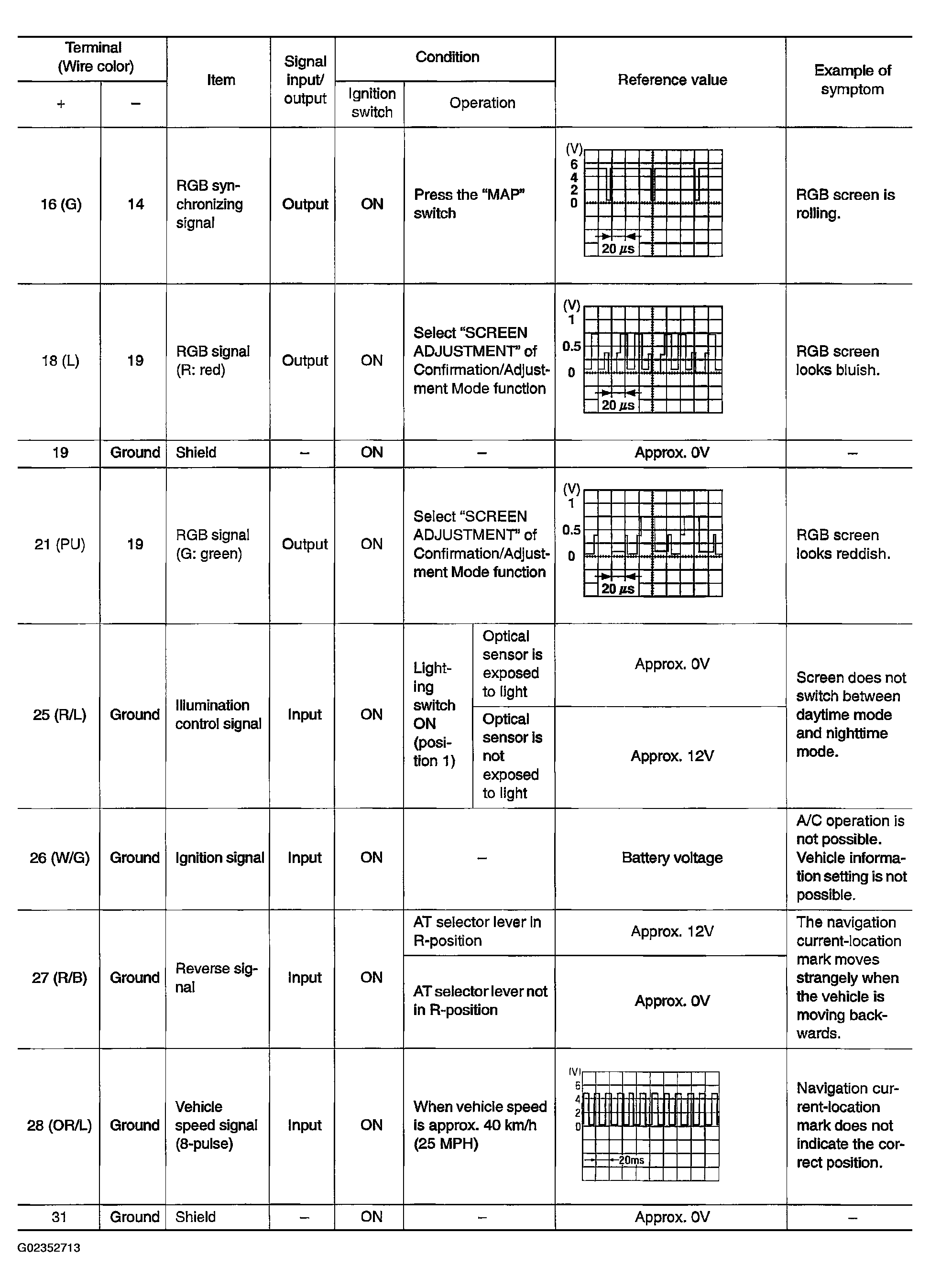

Fig 2: AV And NAVI Control Unit Reference Value And Terminals (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

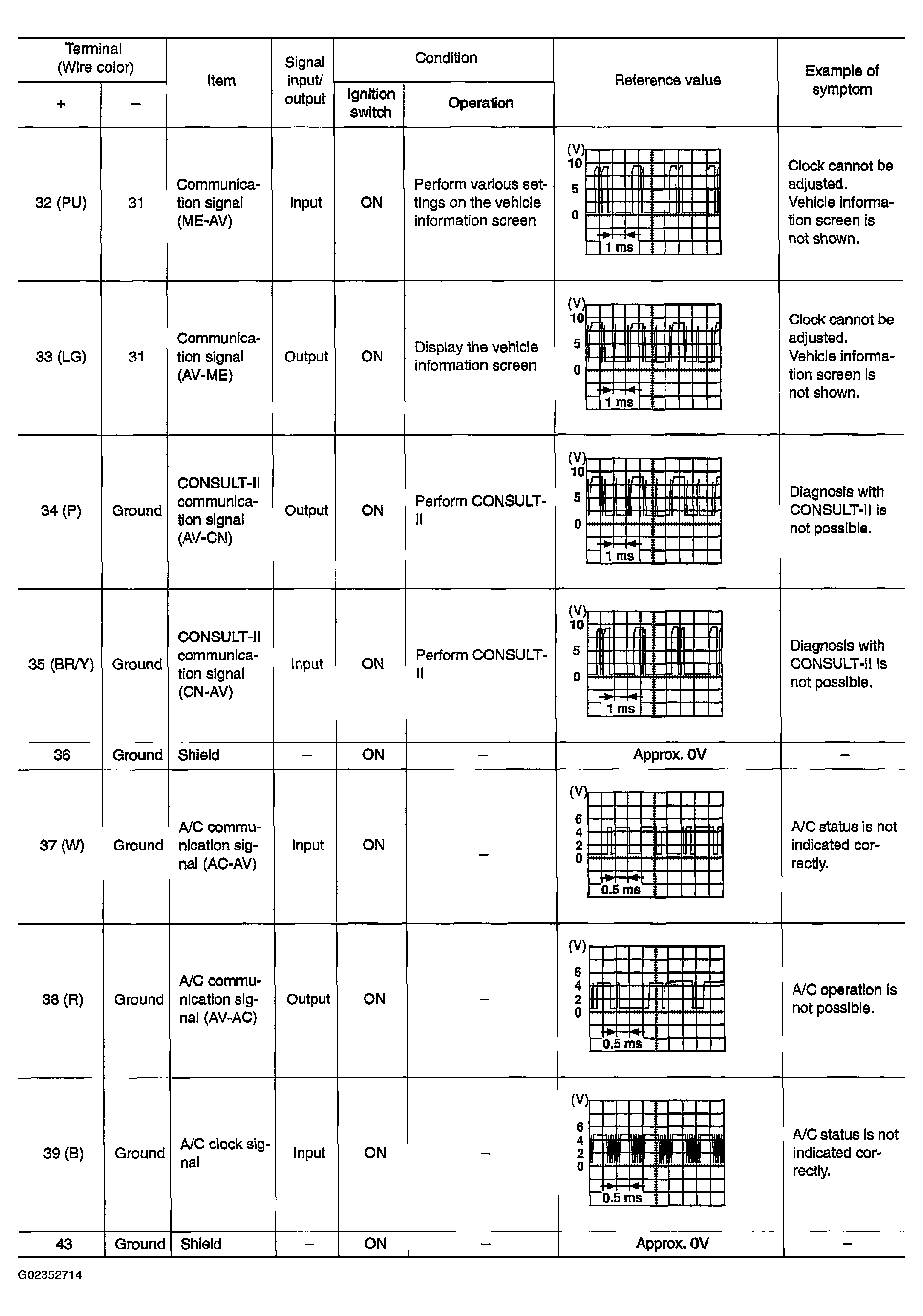

Fig 3: AV And NAVI Control Unit Reference Value And Terminals (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

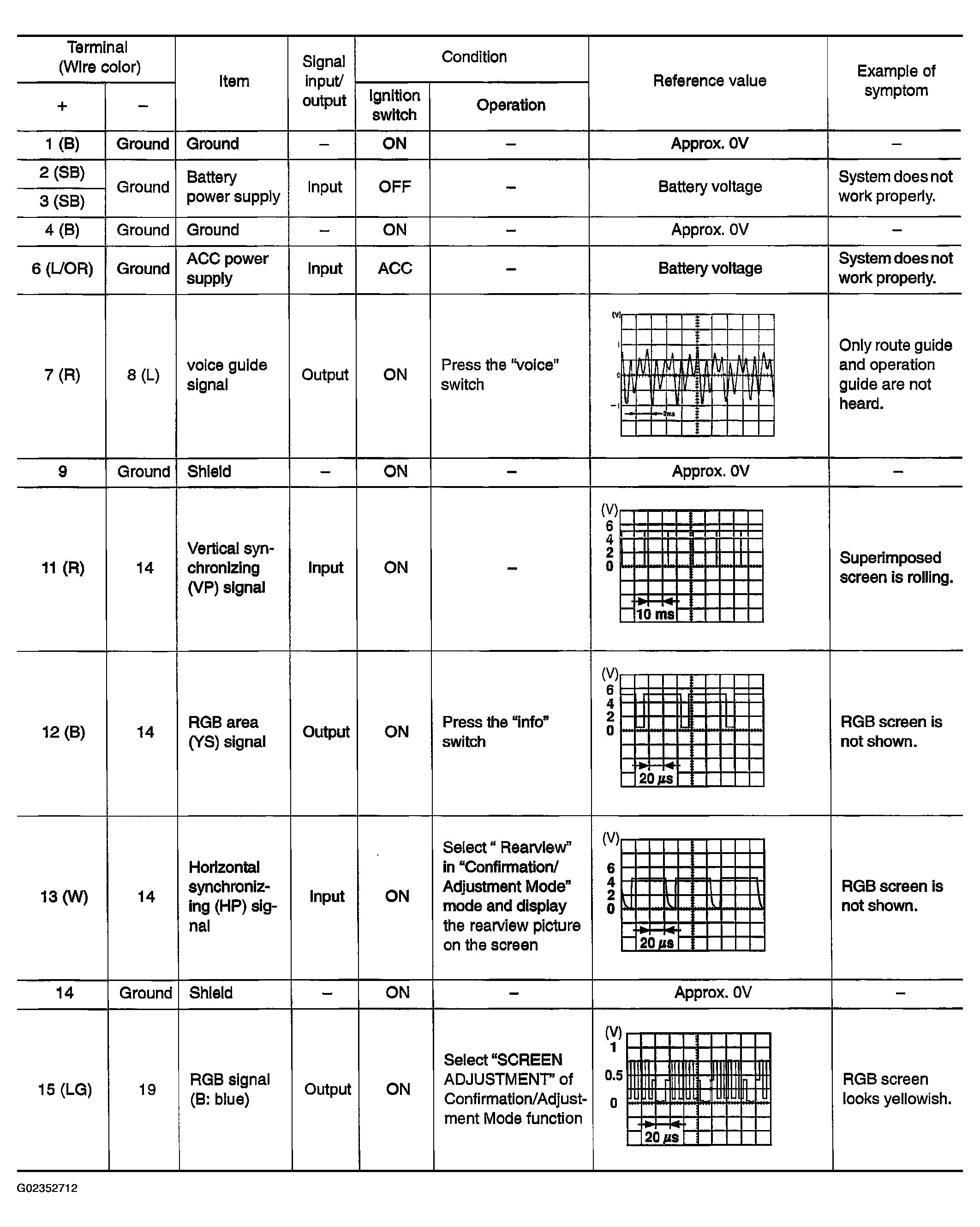

Fig 4: AV And NAVI Control Unit Reference Value And Terminals (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
