2. Cancel Switch Inspection

Check continuity trunk lid opener cancel switch connector M117 terminal 1 and 2.

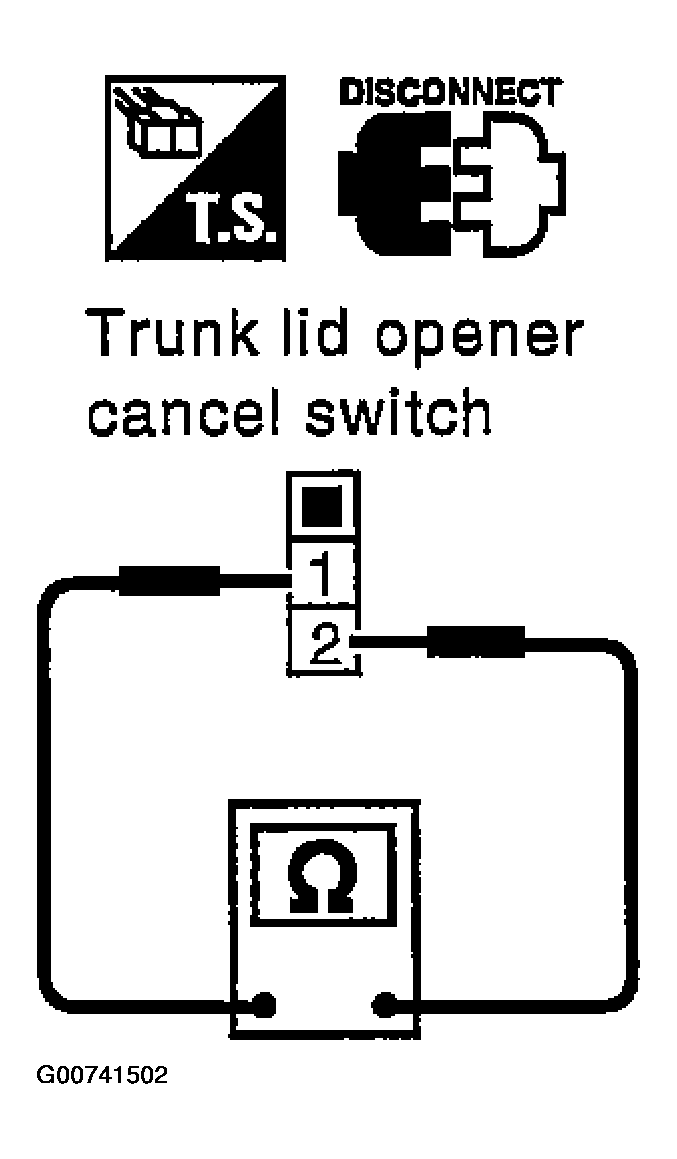

Fig 1: Checking Continuity Trunk Lid Opener Cancel Switch (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Checking Continuity Trunk Lid Opener Cancel Switch (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 3.
2. NG: Replace trunk lid opener cancel switch.
