Terminals And Reference Value For Combination Meter

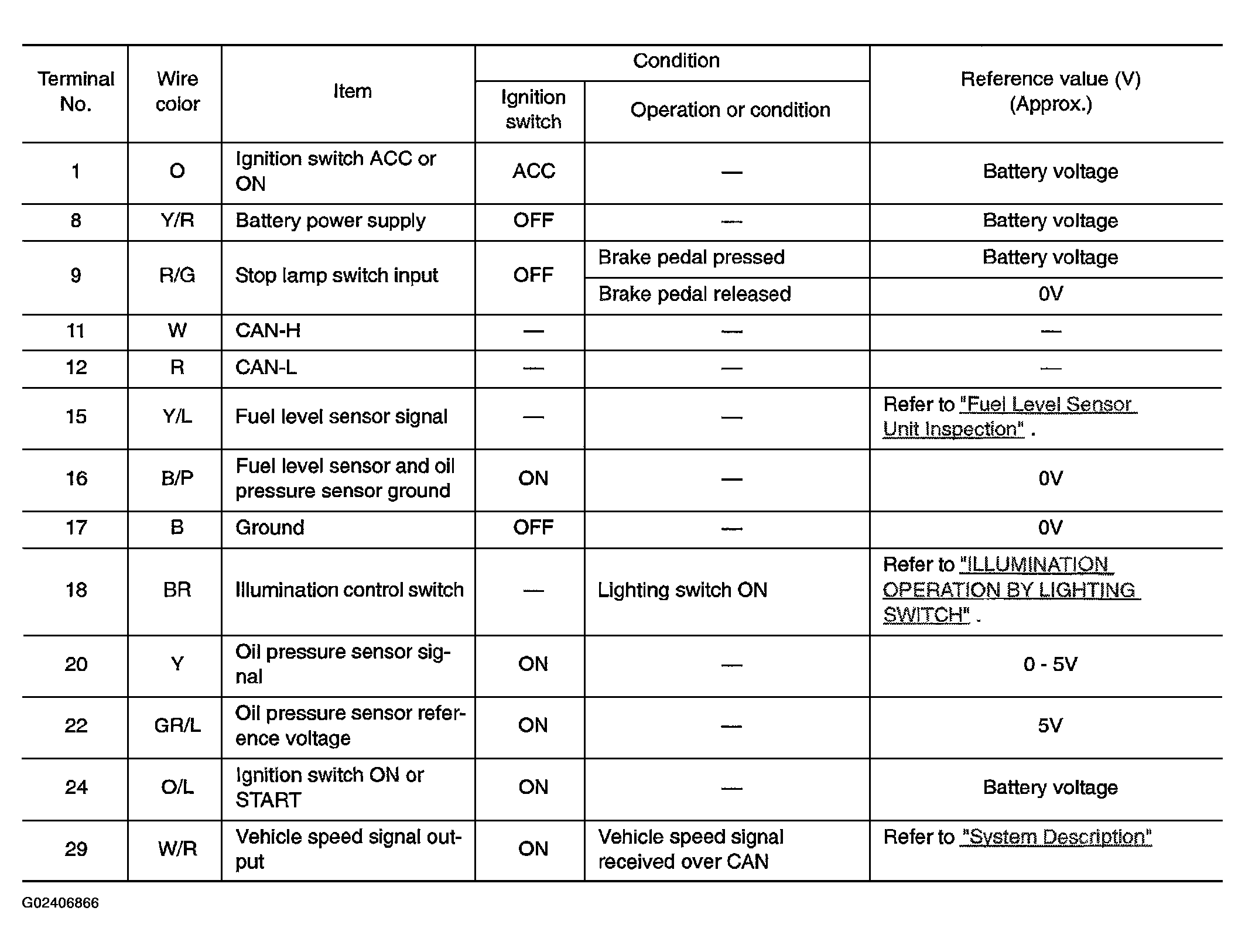

Fig 1: Terminals And Reference Value For Combination Meter Table
Courtesy of NISSAN MOTOR CO., U.S.A.
