Control Valve, TCM and A/T Fluid Temperature Sensor 2: Components

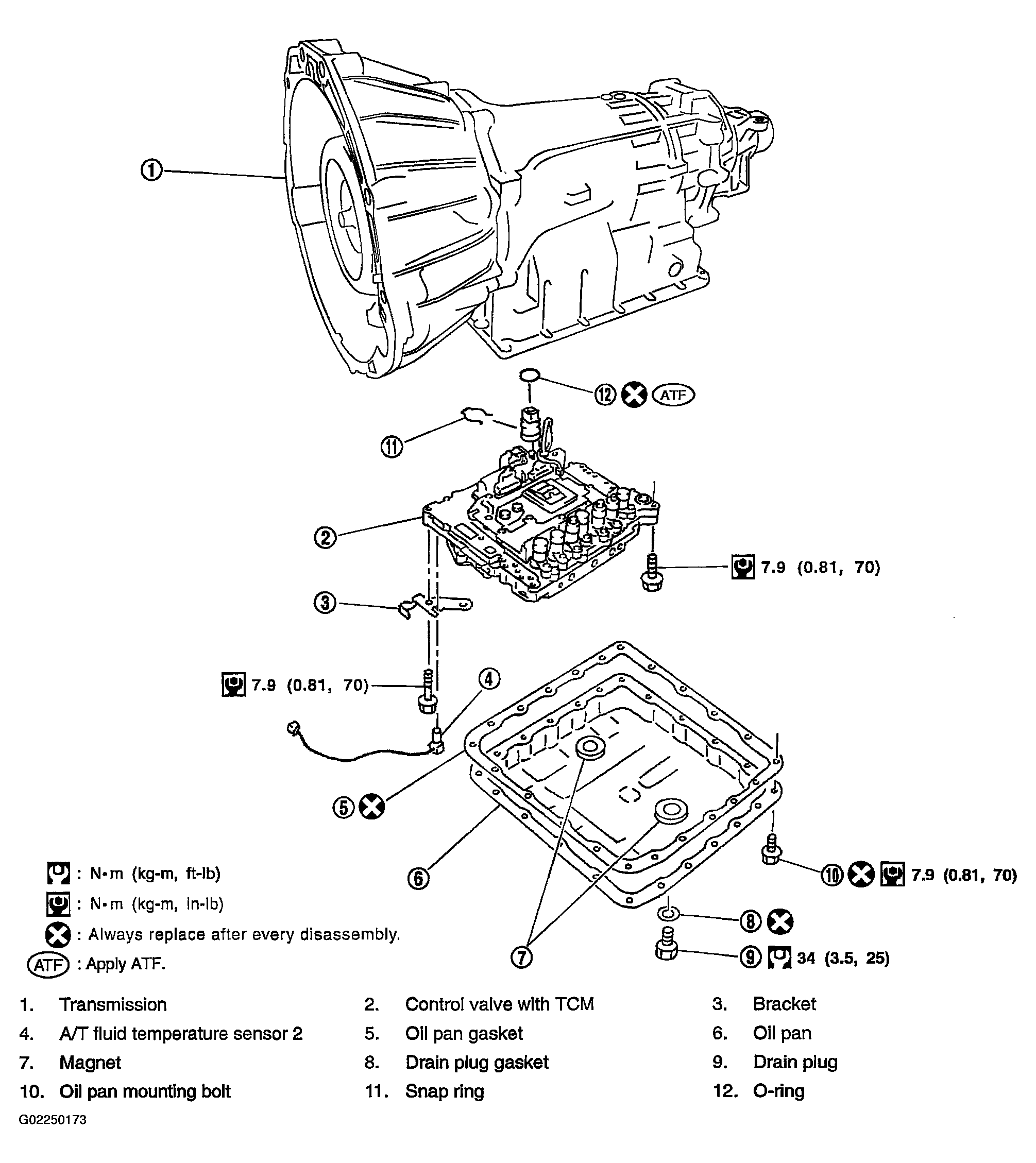

Fig 1: Exploded View And Torque Specifications Of Control Valve With TCM And A/T Fluid Temperature Sensor 2

Courtesy of NISSAN MOTOR CO., U.S.A.
