TCM Inspection Table

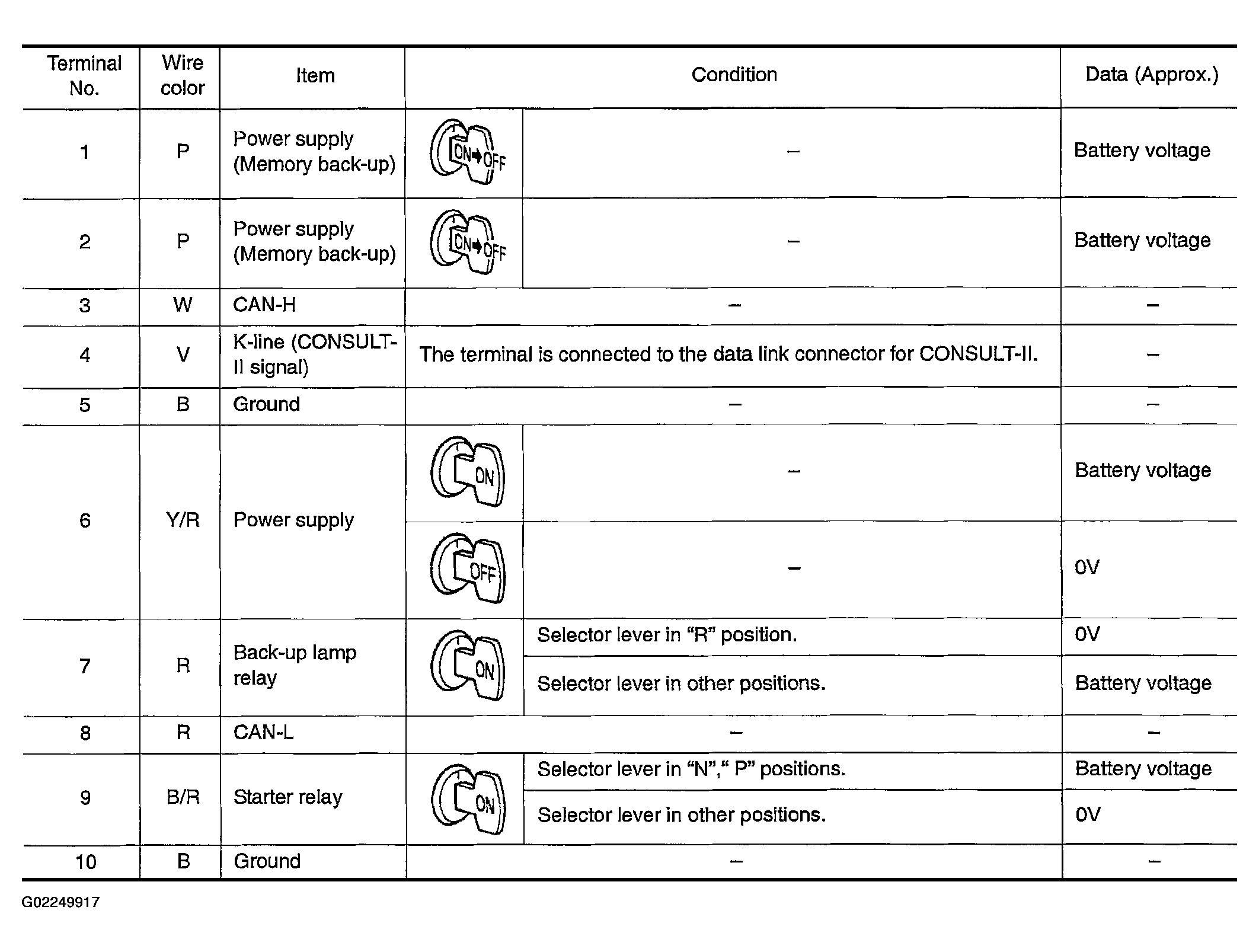

Fig 1: TCM Inspection Table
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
