Terminals and Reference Value for Display Control unit
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Terminals and Reference Value for Display Control unit

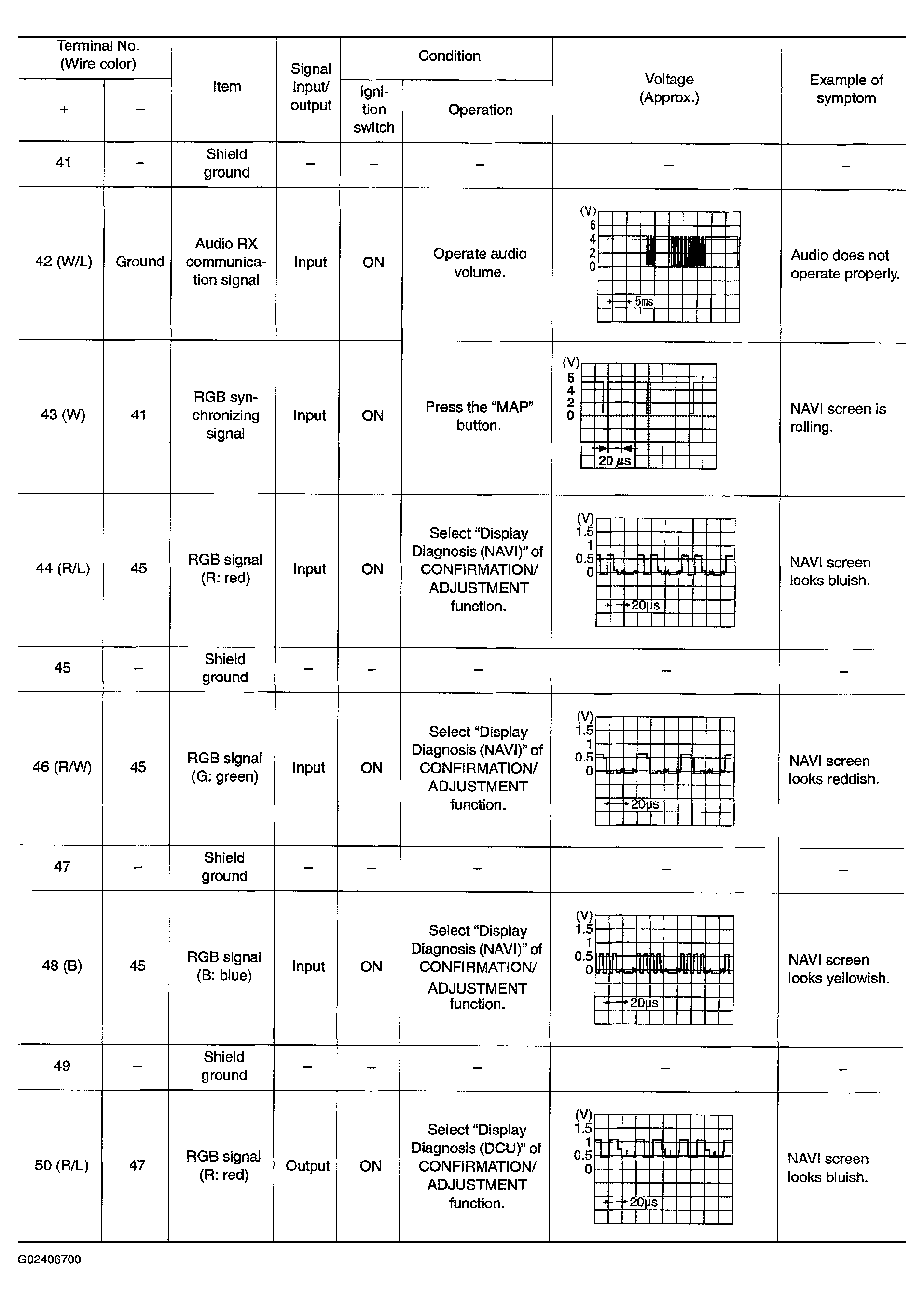

Fig 1: Display Control Unit Terminals And Reference Value Chart (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

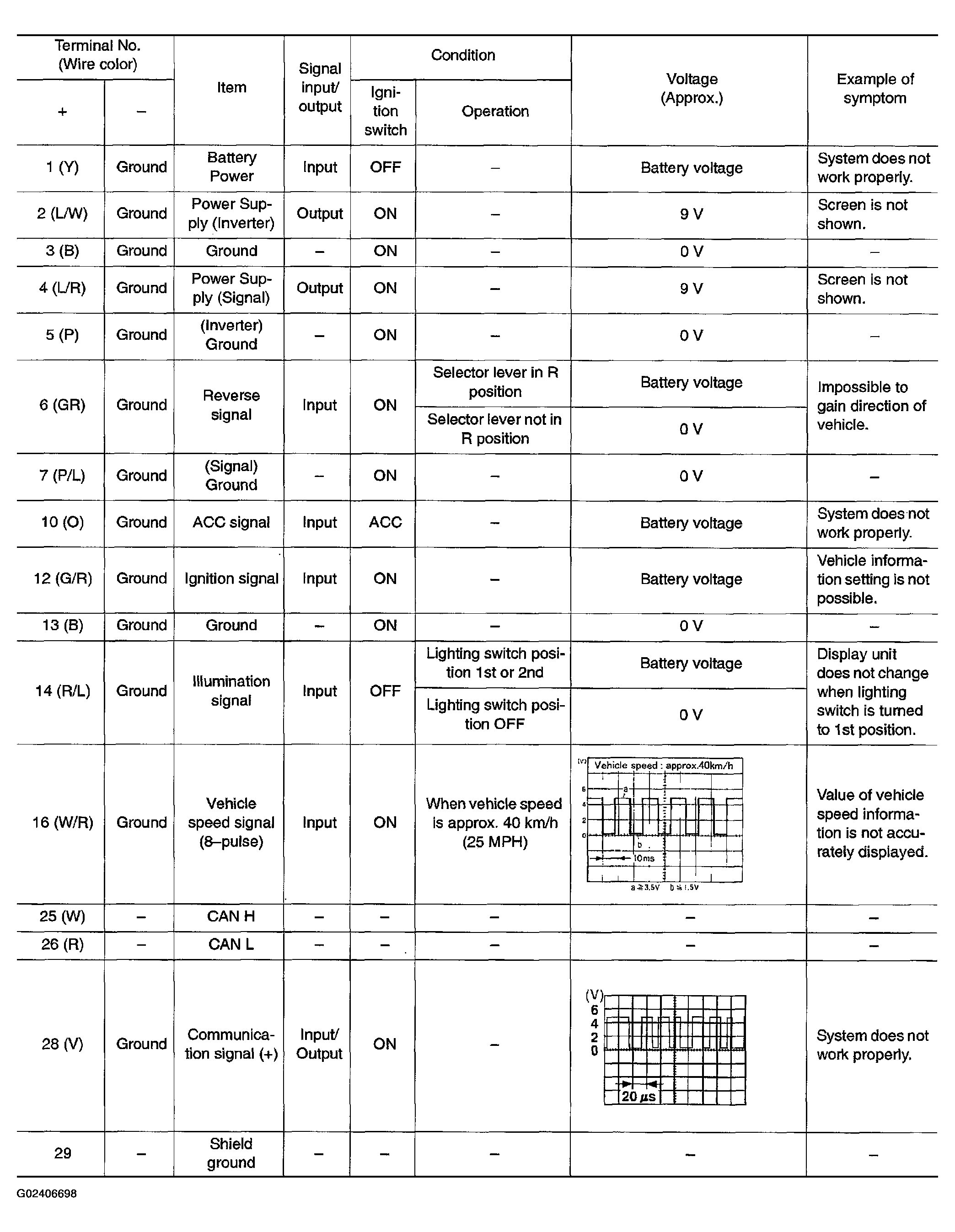

Fig 2: Display Control Unit Terminals And Reference Value Chart (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

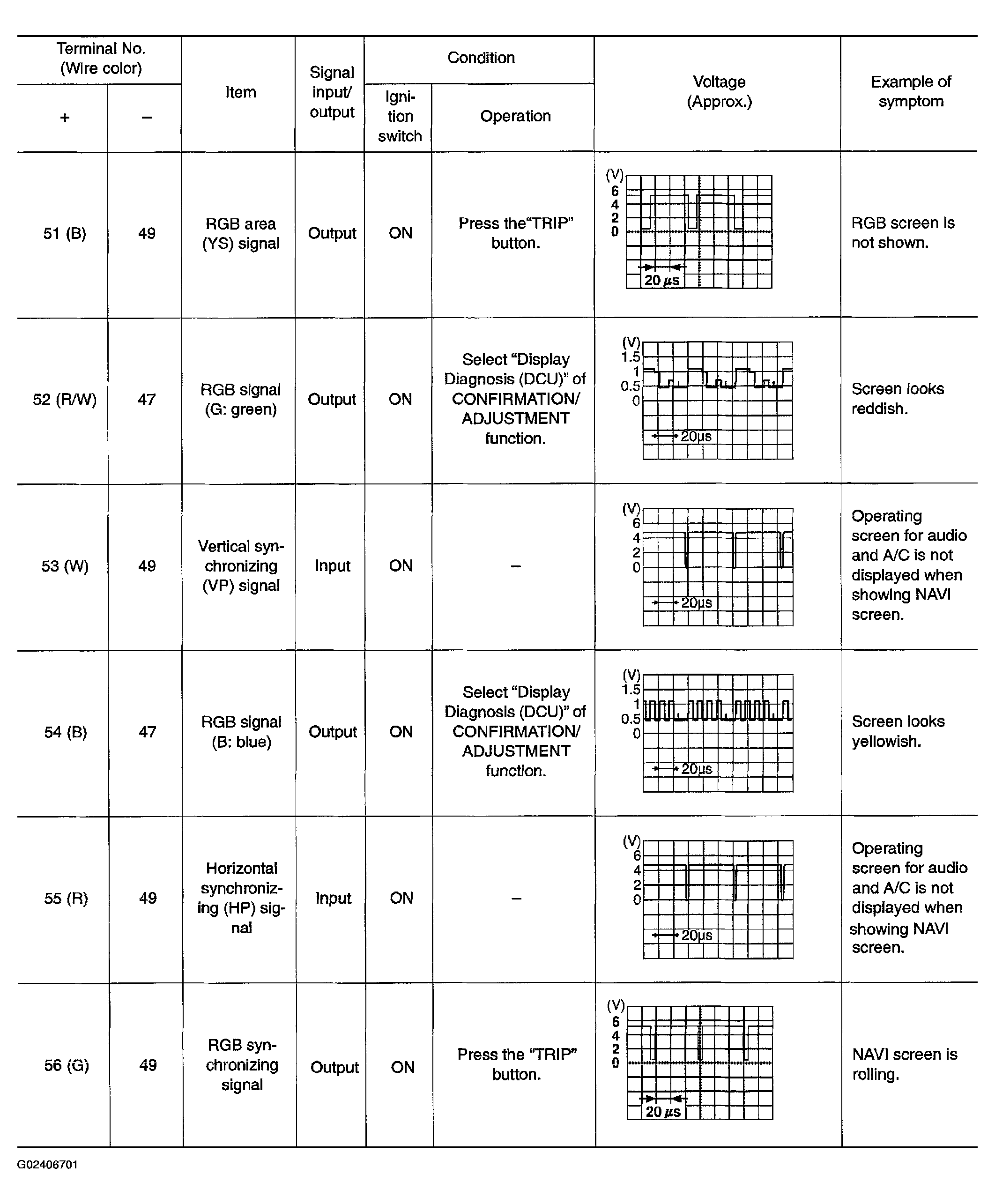

Fig 3: Display Control Unit Terminals And Reference Value Chart (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

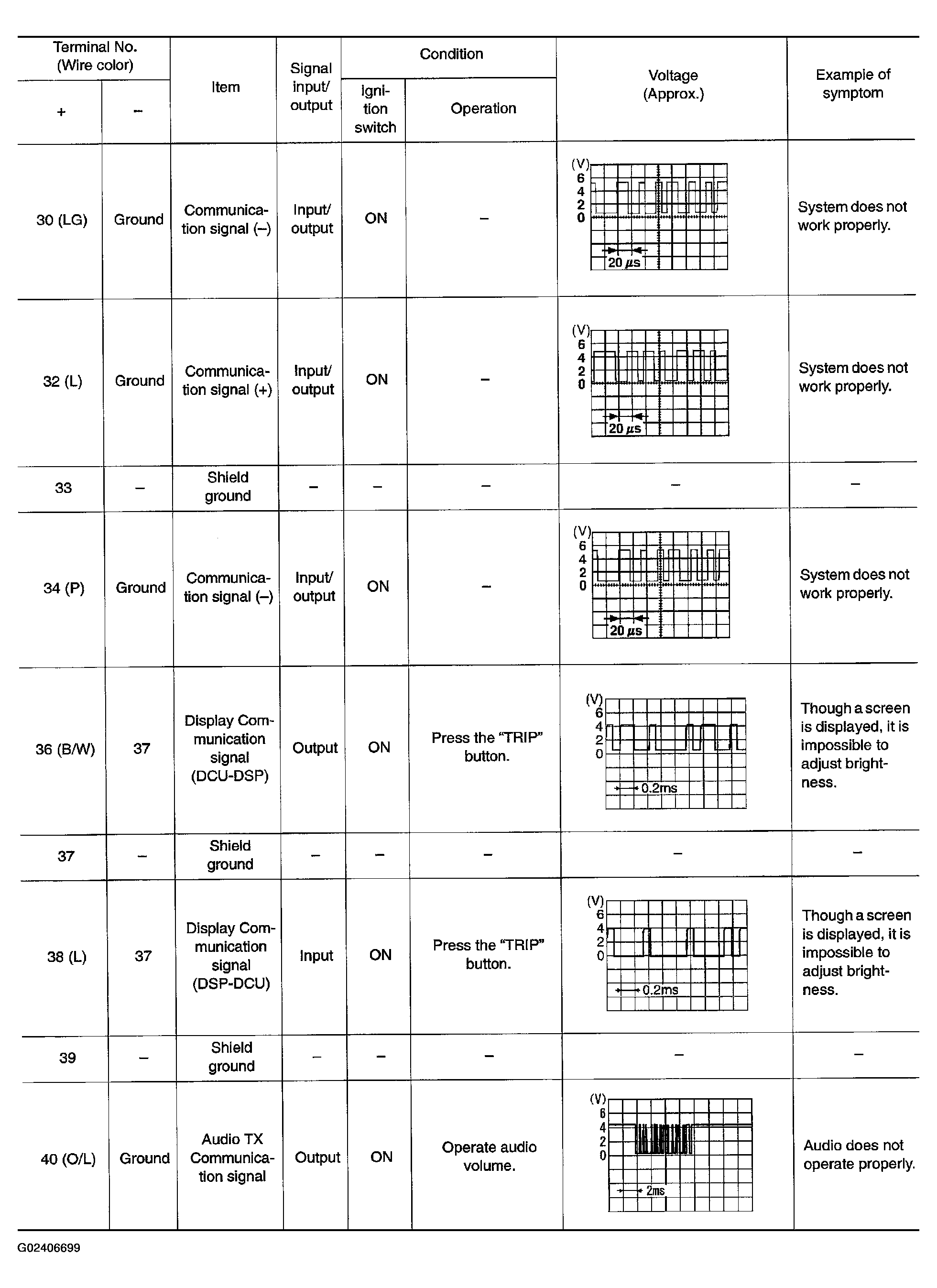

Fig 4: Display Control Unit Terminals And Reference Value Chart (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
