Evaporative Emission Line Drawing

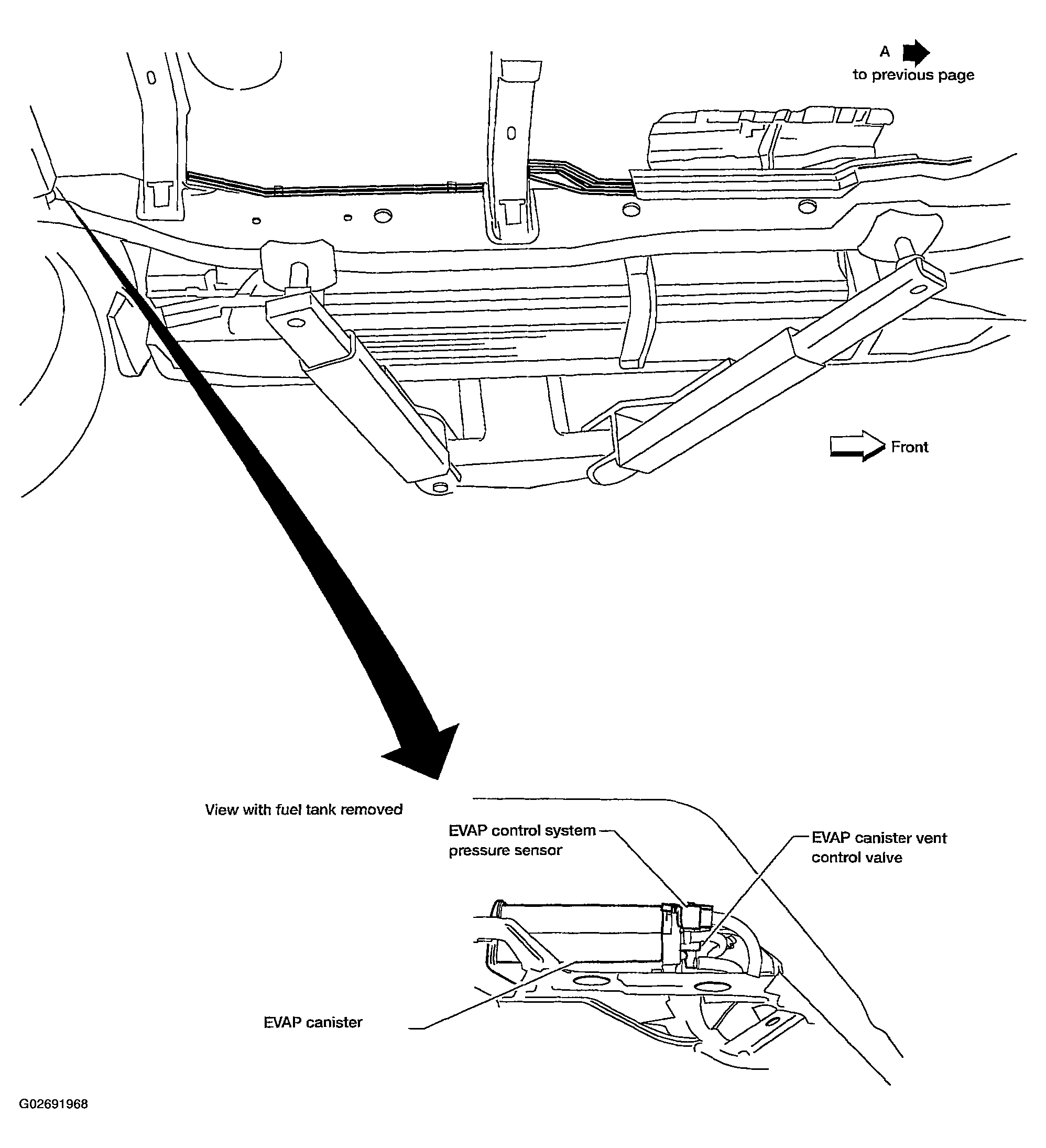

Fig 1: Identifying Evaporative Emission Line Drawing
Courtesy of NISSAN MOTOR CO., U.S.A.

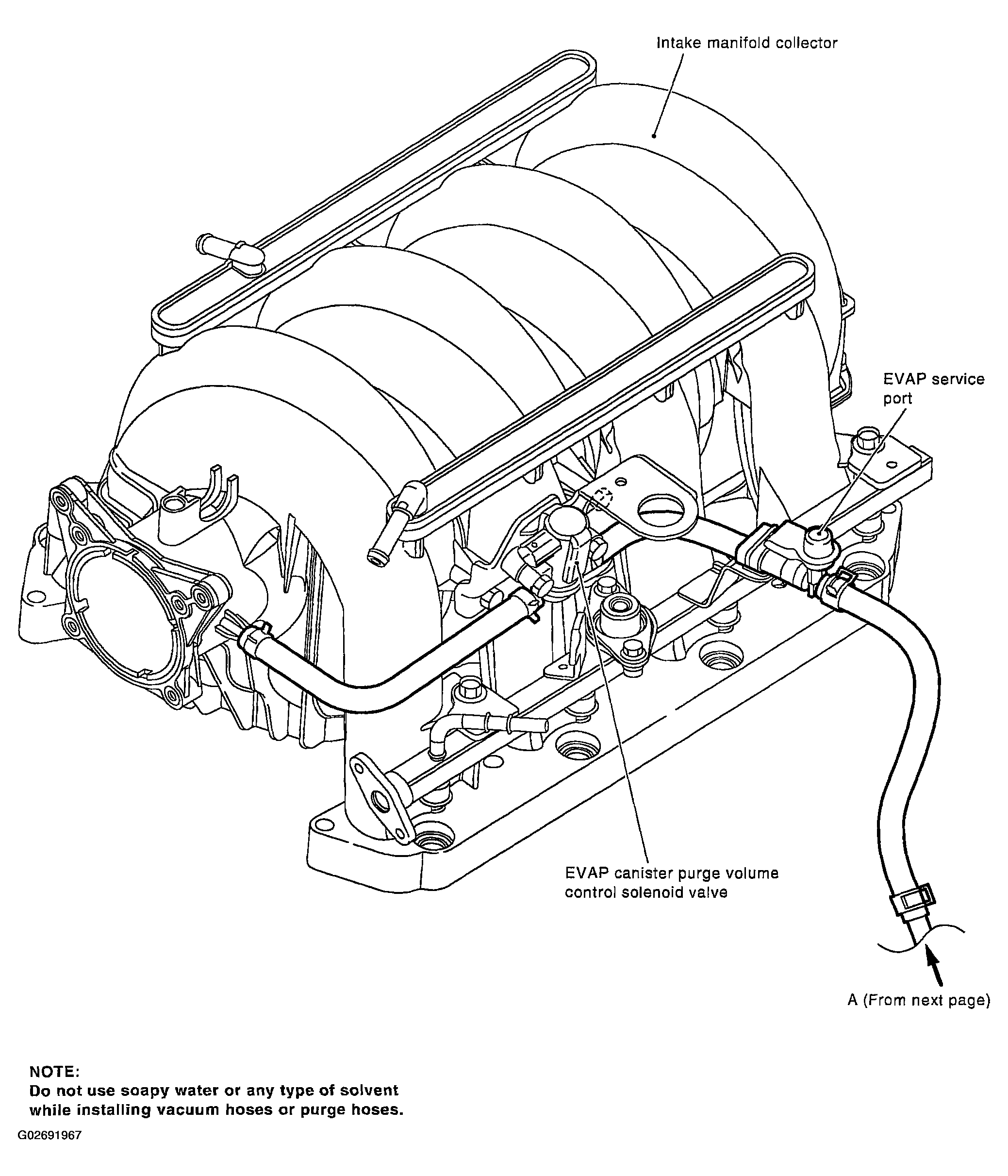

Fig 2: Identifying EVAP Canister System
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
