Schematic/With Front Power Window Anti-Pinch System

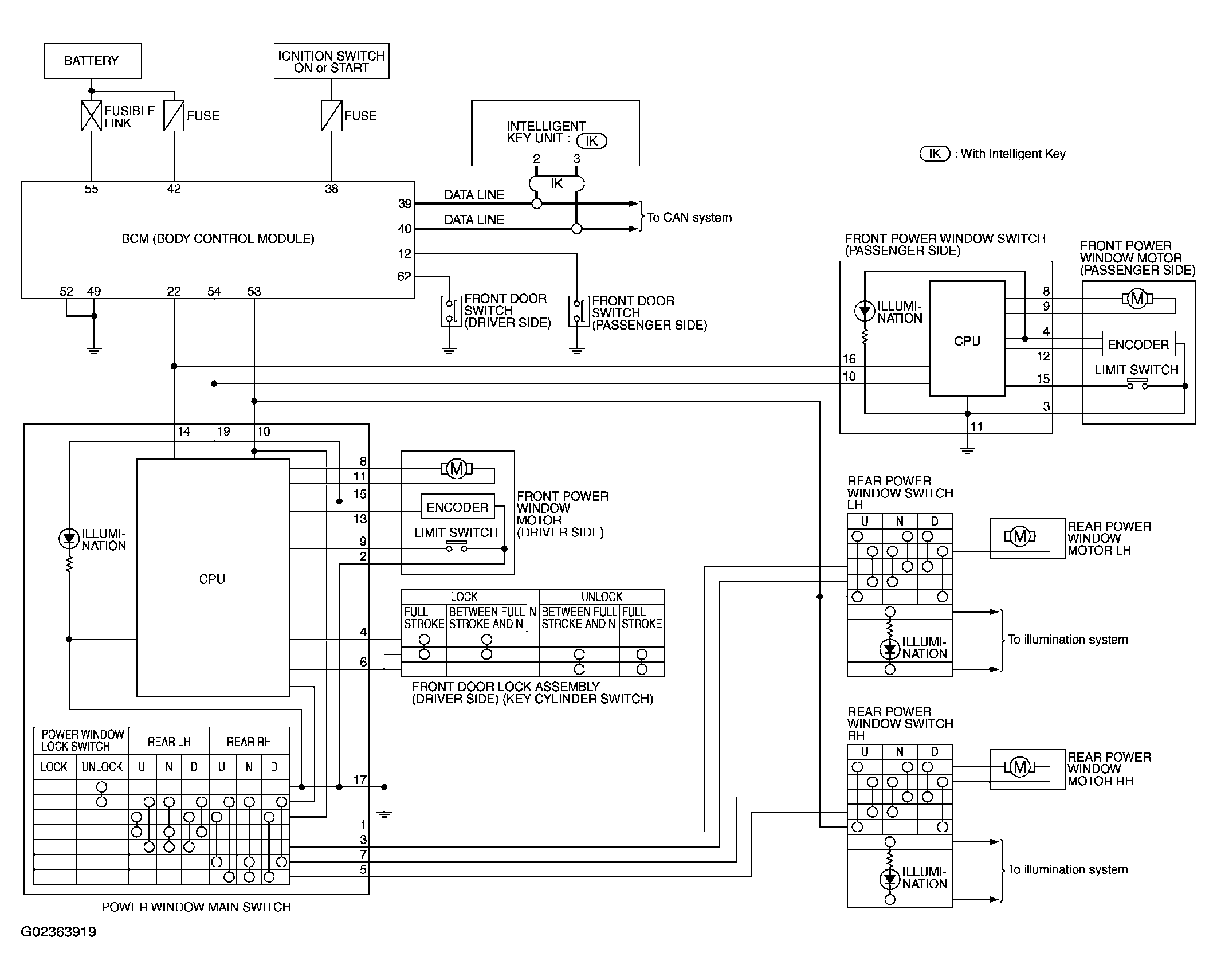

Fig 1: Schematic/With Front Power Window Anti-Pinch System
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
