Rear Window Defogger: Schematic

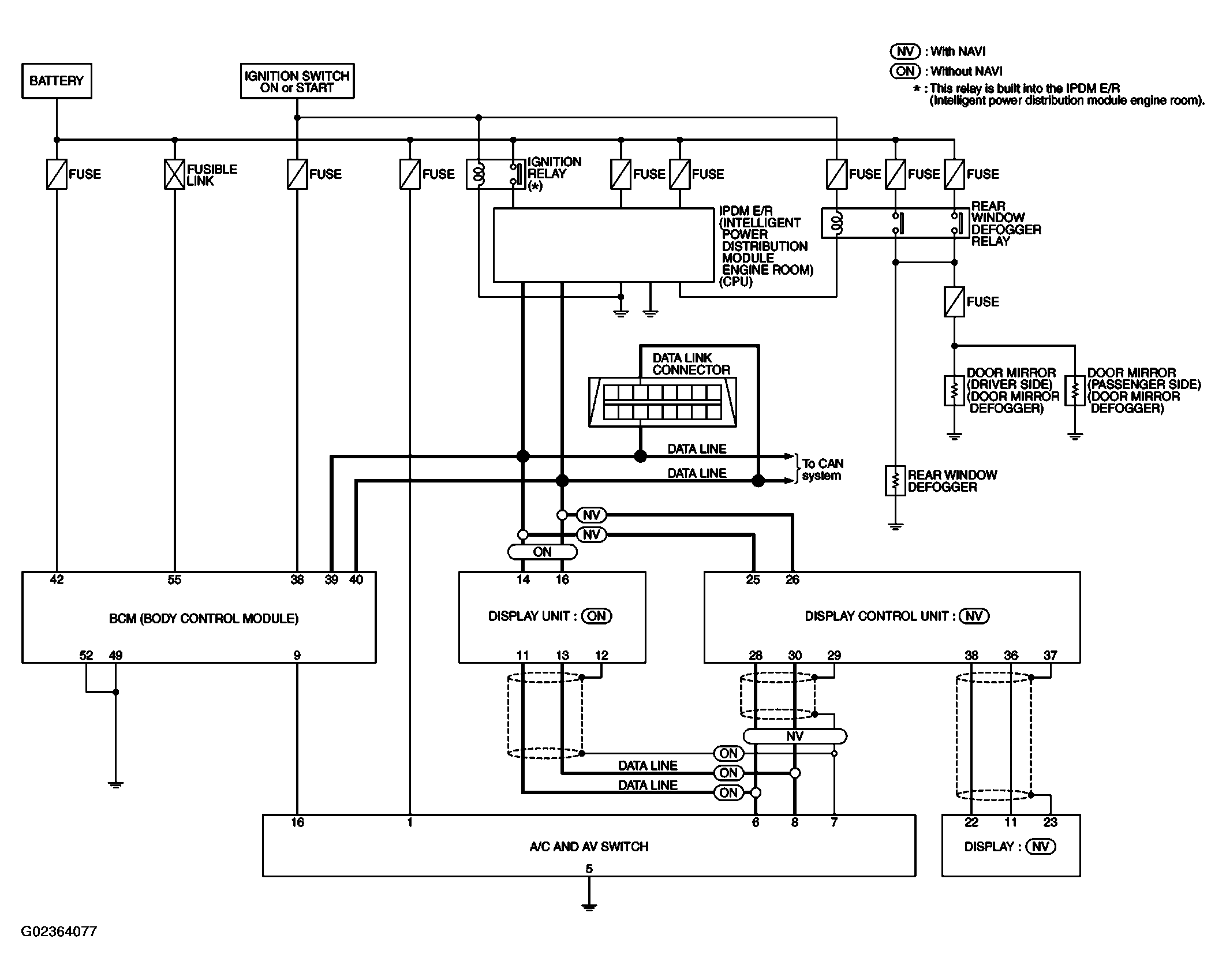

Fig 1: Schematic Diagram

G02364077

Courtesy of NISSAN MOTOR CO., U.S.A.
