Terminals and Reference Value for Display Control Unit

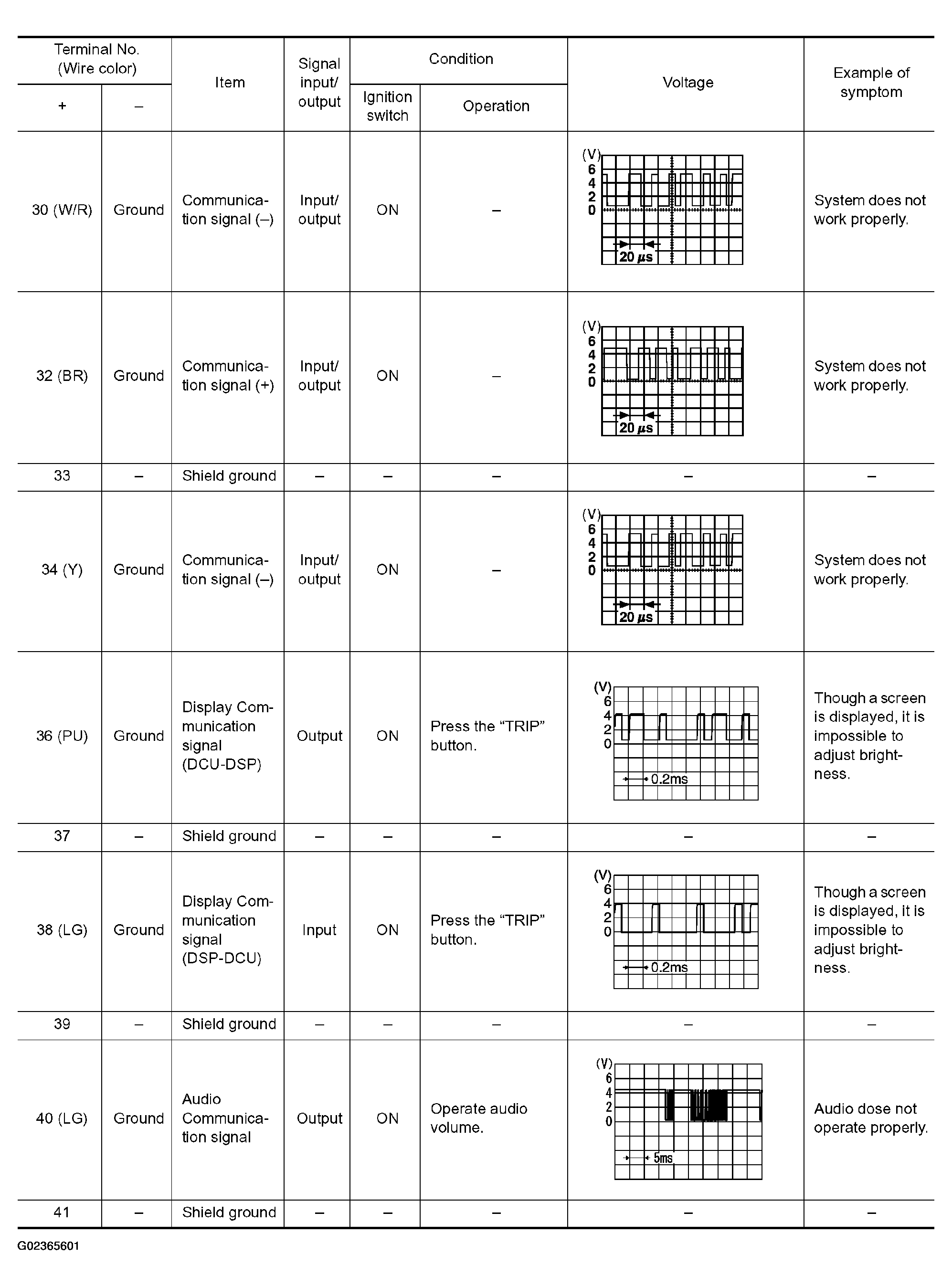

Fig 1: Terminals And Reference Value For Display Control Unit

Courtesy of NISSAN MOTOR CO., U.S.A.

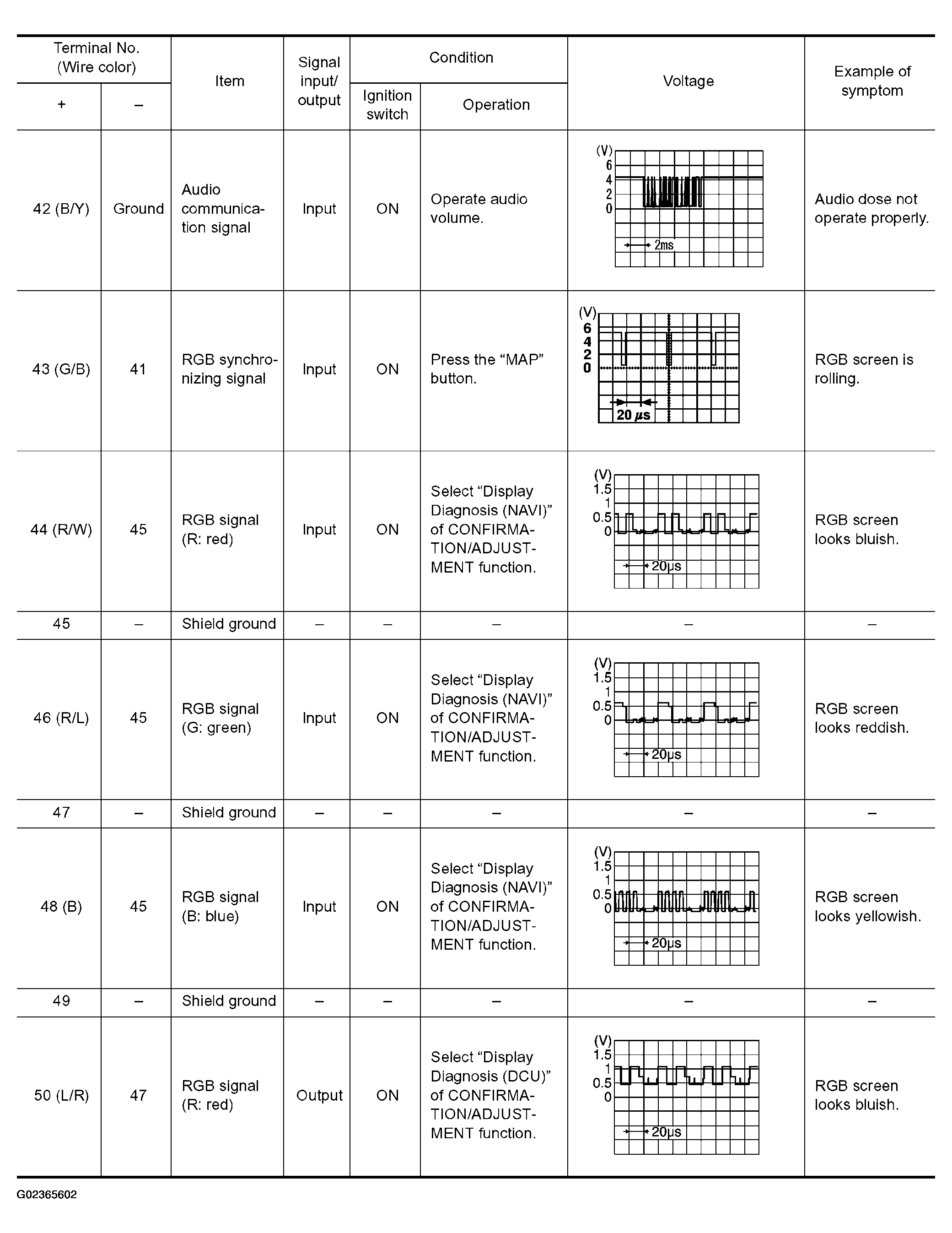

Fig 2: Terminals And Reference Value For Display Control Unit

Courtesy of NISSAN MOTOR CO., U.S.A.

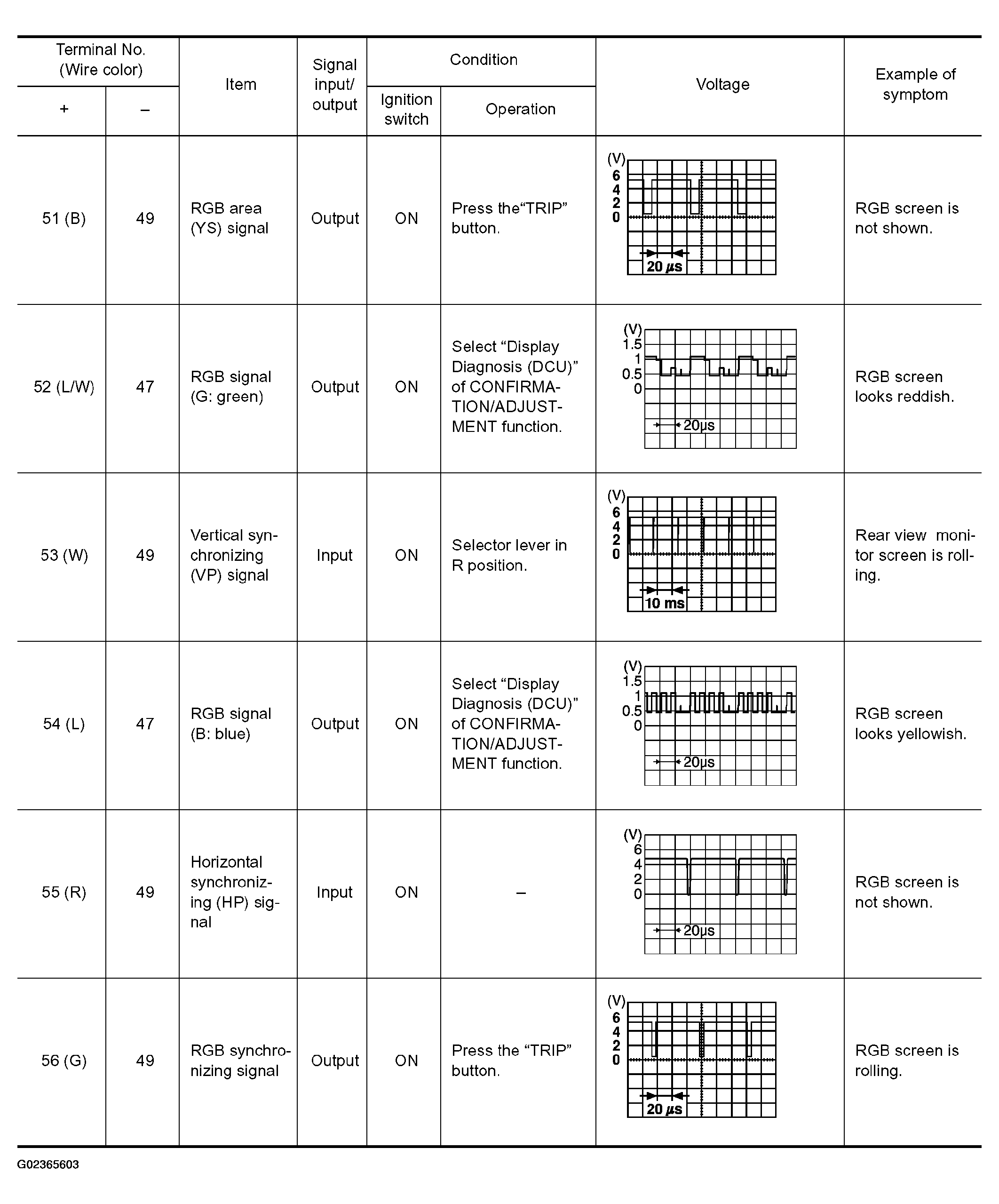

Fig 3: Terminals And Reference Value For Display Control Unit

Courtesy of NISSAN MOTOR CO., U.S.A.

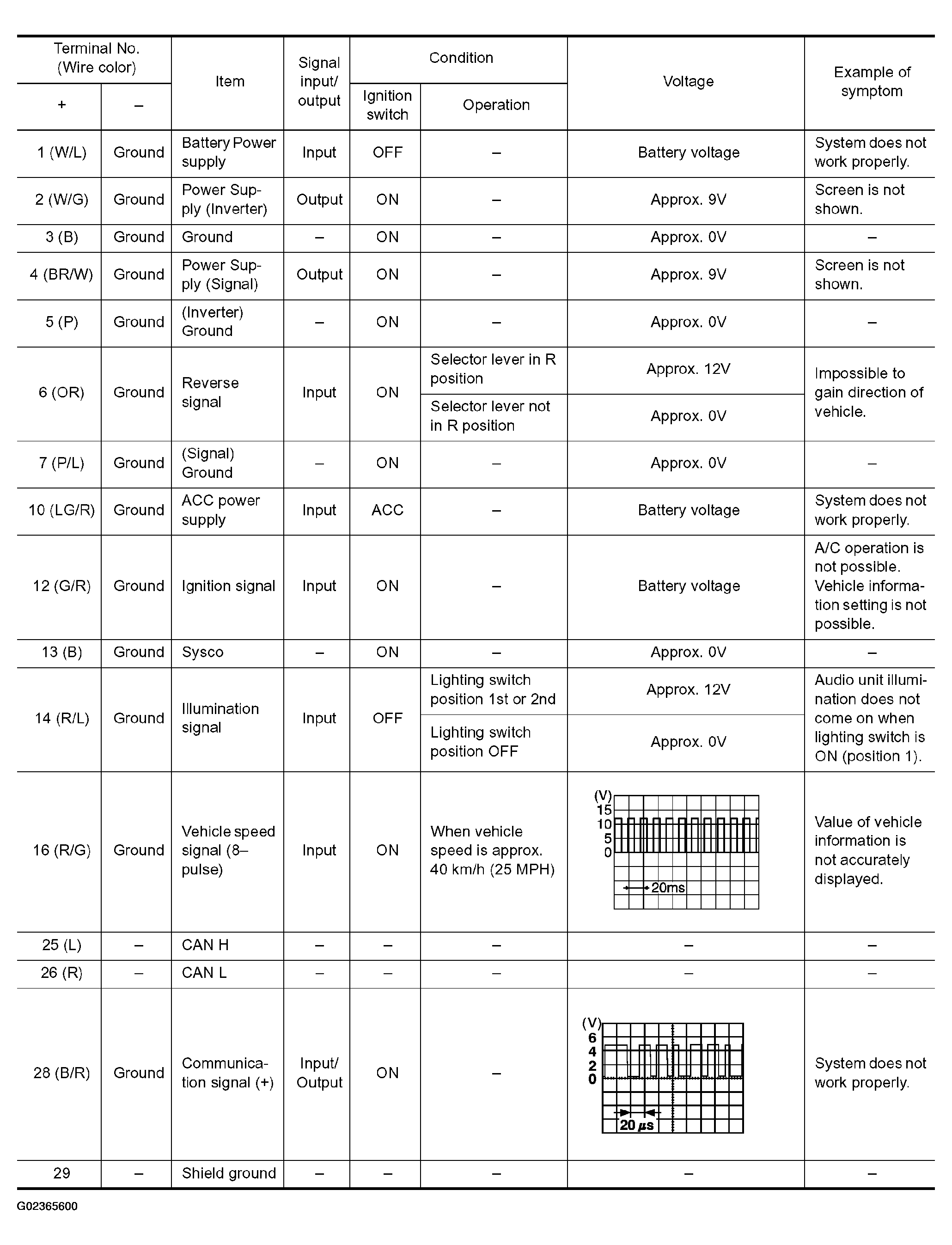

Fig 4: Terminals And Reference Value For Display Control Unit

Courtesy of NISSAN MOTOR CO., U.S.A.
