Automatic Drive Positioner: Schematic

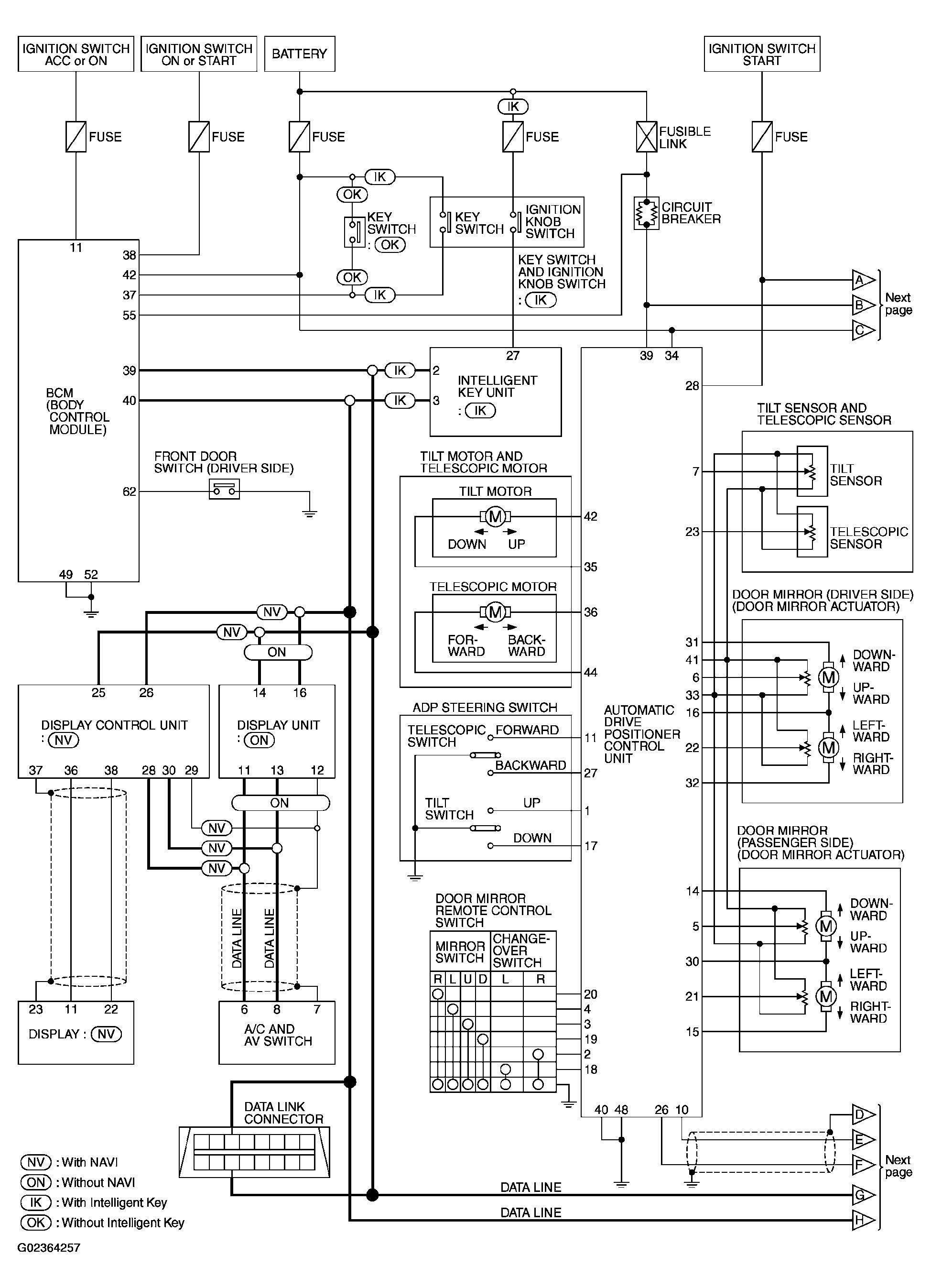

Fig 1: Schematic Diagram (1 Of 2)
G02364257Courtesy of NISSAN MOTOR CO., U.S.A.

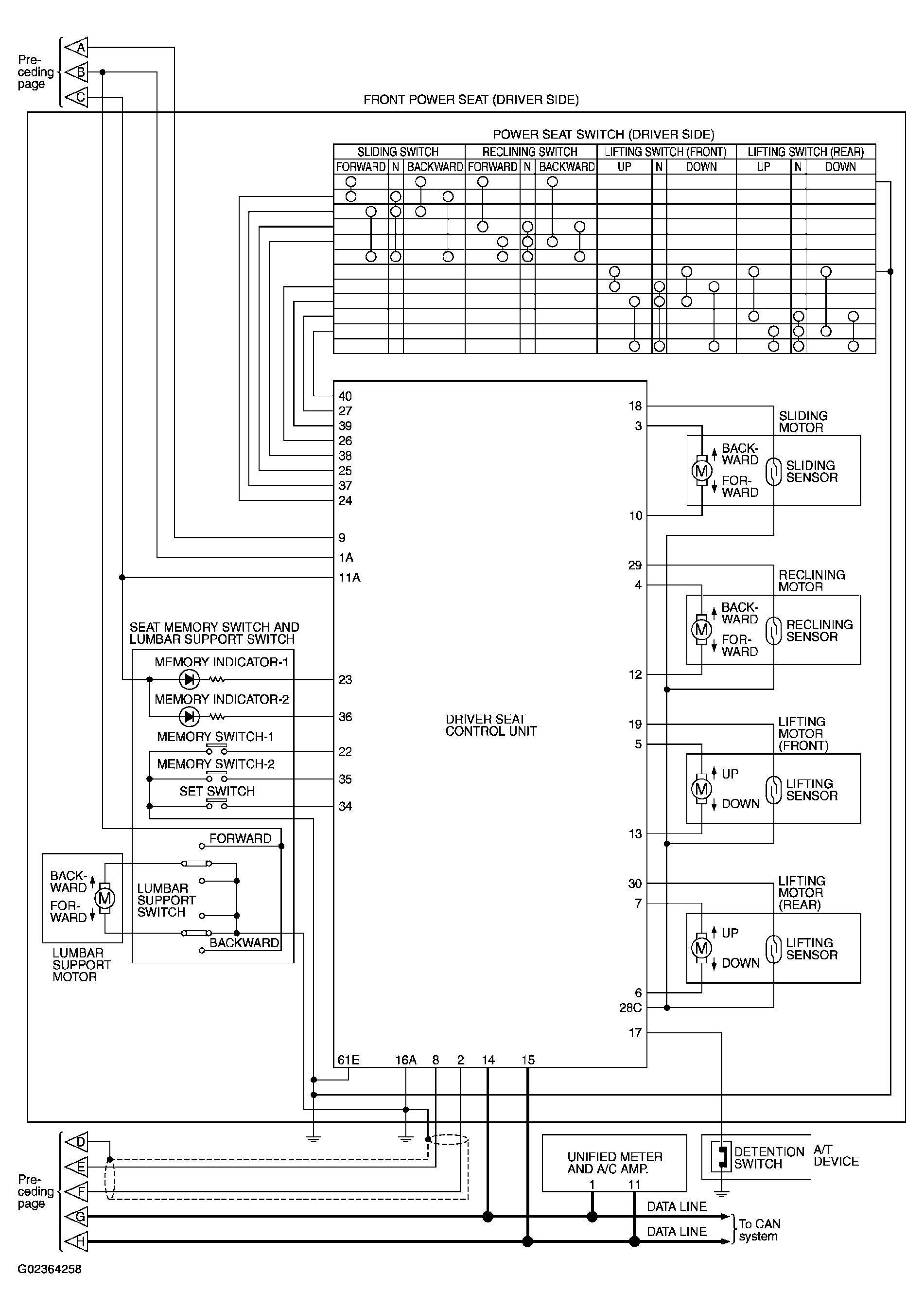

Fig 2: Schematic Diagram (2 Of 2)
G02364258Courtesy of NISSAN MOTOR CO., U.S.A.
