Limit Switch Circuit Check (Passenger Side)

CHECK POWER WINDOW SUB-SWITCH (PASSENGER SIDE) LIMIT SIGNAL
1. Turn ignition switch ON.
2. Check voltage between power window motor (front passenger side) connector and ground.

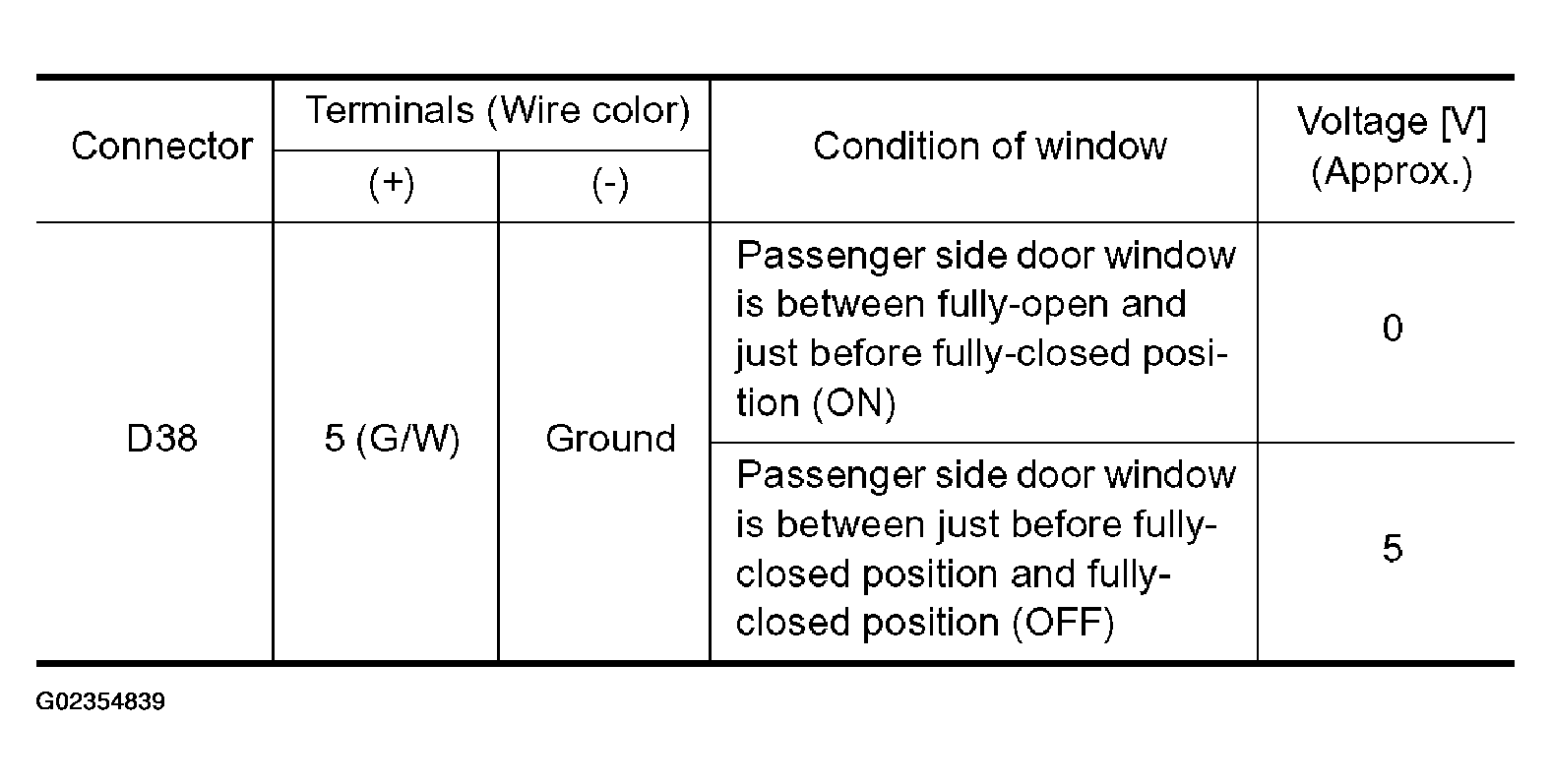

  Fig 1: Voltage Check Between Power Window Motor (Front Passenger Side) Connector And Ground Table
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Fig 2: Checking Voltage Between Power Window Motor (Front Passenger Side) Connector And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: Limit SW circuit is OK.
2. NG: GO TO 2.
CHECK LIMIT SWITCH GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect power window motor (front passenger side) connector.
3. Check continuity between power window motor (front passenger side) connector D38 terminal 6 and ground.
  6 (W/B) - Ground: Continuity should exist.
OK or NG
1. OK: GO TO 4.
2. NG: GO TO 3.

  Fig 3: Checking Continuity Between Power Window Motor (Front Passenger Side) Connector D38 Terminal 6 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK HARNESS CONTINUITY
1. Disconnect power window sub-switch (front passenger side) connector.
2. Check continuity between power window motor (front passenger side) connector D38 terminal 6 and power window sub-switch (front passenger side) connector D36 terminal 3.
  6 (W/B) - 3 (W/B): Continuity should exist.
OK or NG
1. OK: Replace power window sub-switch (front passenger side).
2. NG: Repair or replace harness.

  Fig 4: Checking Continuity Between Power Window Motor (Front Passenger Side) Connector D38 Terminal 6 And Power Window Sub-Switch (Front Passenger Side) Connector D36 Terminal 3
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK HARNESS CONTINUITY
1. Disconnect power window sub-switch (front passenger side) connector.
2. Check continuity between power window sub-switch (front passenger side) connector D36 terminal 15 and power window motor (front passenger side) connector D38 terminal 5.
  15 (G/W) - 5 (G/W): Continuity should exist.
OK or NG
1. OK: GO TO 5.
2. NG: Repair or replace harness.

  Fig 5: Checking Continuity Between Power Window Sub-Switch (Front Passenger Side) Connector D36 Terminal 15 And Power Window Motor (Front Passenger Side) Connector D38 Terminal 5
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK POWER WINDOW SUB-SWITCH (FRONT PASSENGER SIDE) OUTPUT SIGNAL
1. Connect power window sub-switch (front passenger side) connector.
2. Turn ignition switch ON.
3. Check voltage between power window sub-switch (front passenger side) connector D36 terminal 15 and ground.
  15 (G/W) - Ground: Approx. 5V
OK or NG
1. OK: Replace power window motor (front passenger side).
2. NG: Replace power window sub-switch (front passenger side).

  Fig 6: Checking Voltage Between Power Window Sub-Switch (Front Passenger Side) Connector D36 Terminal 15 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
