Monitored Item

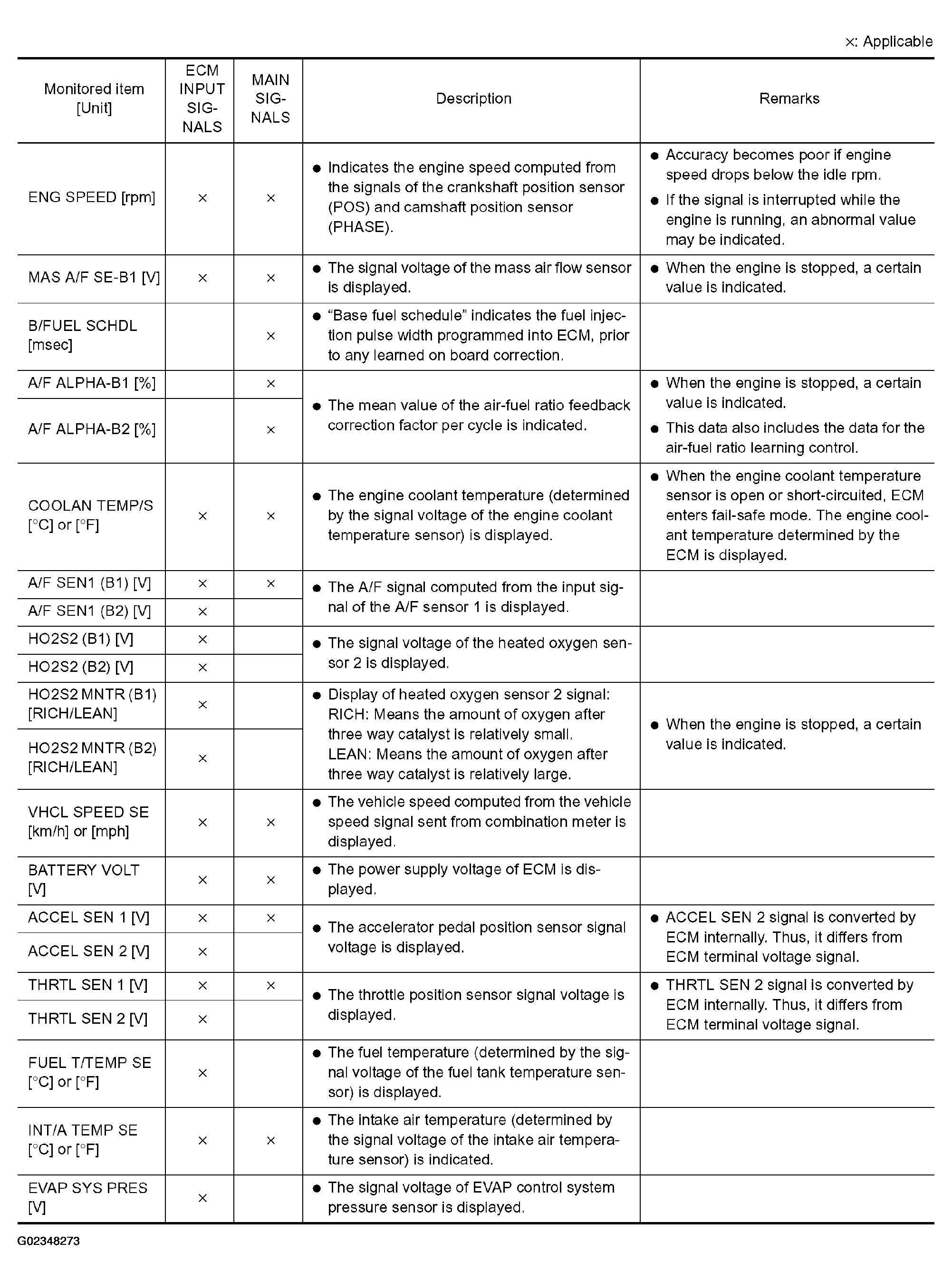

Fig 1: Data Monitor Mode Monitored Item - (1 of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

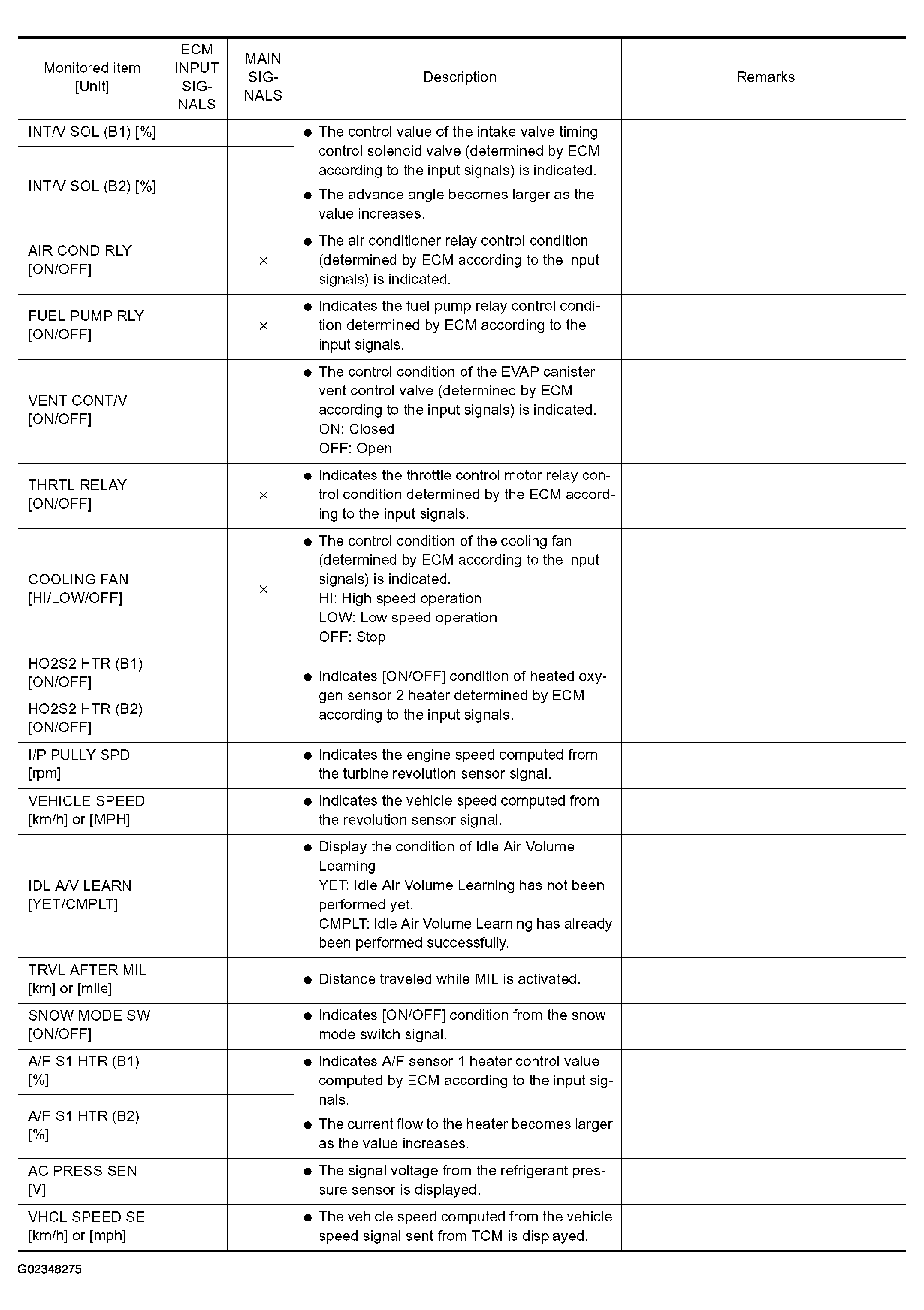

Fig 2: Data Monitor Mode Monitored Item - (2 of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

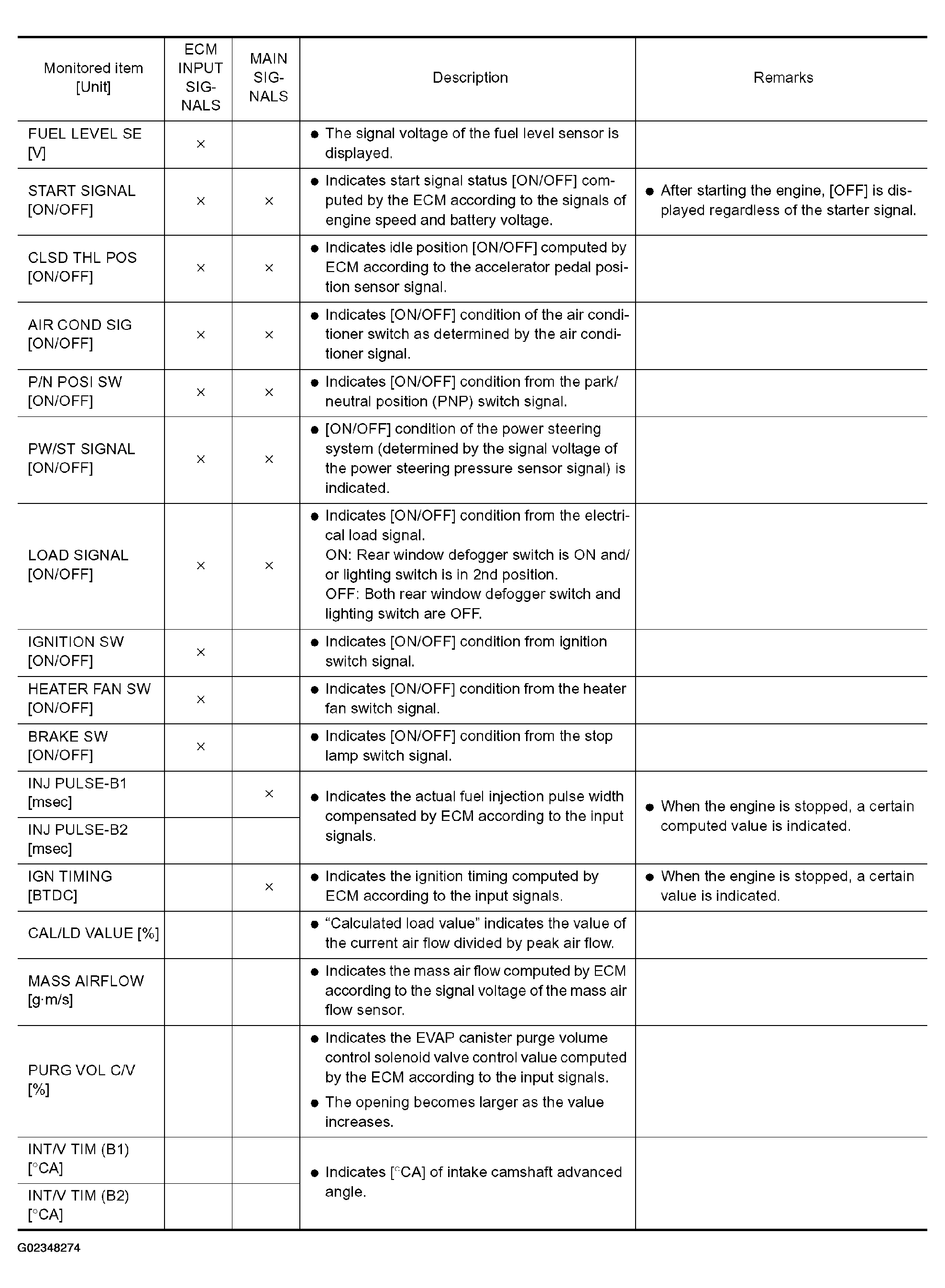

Fig 3: Data Monitor Mode Monitored Item - (3 of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

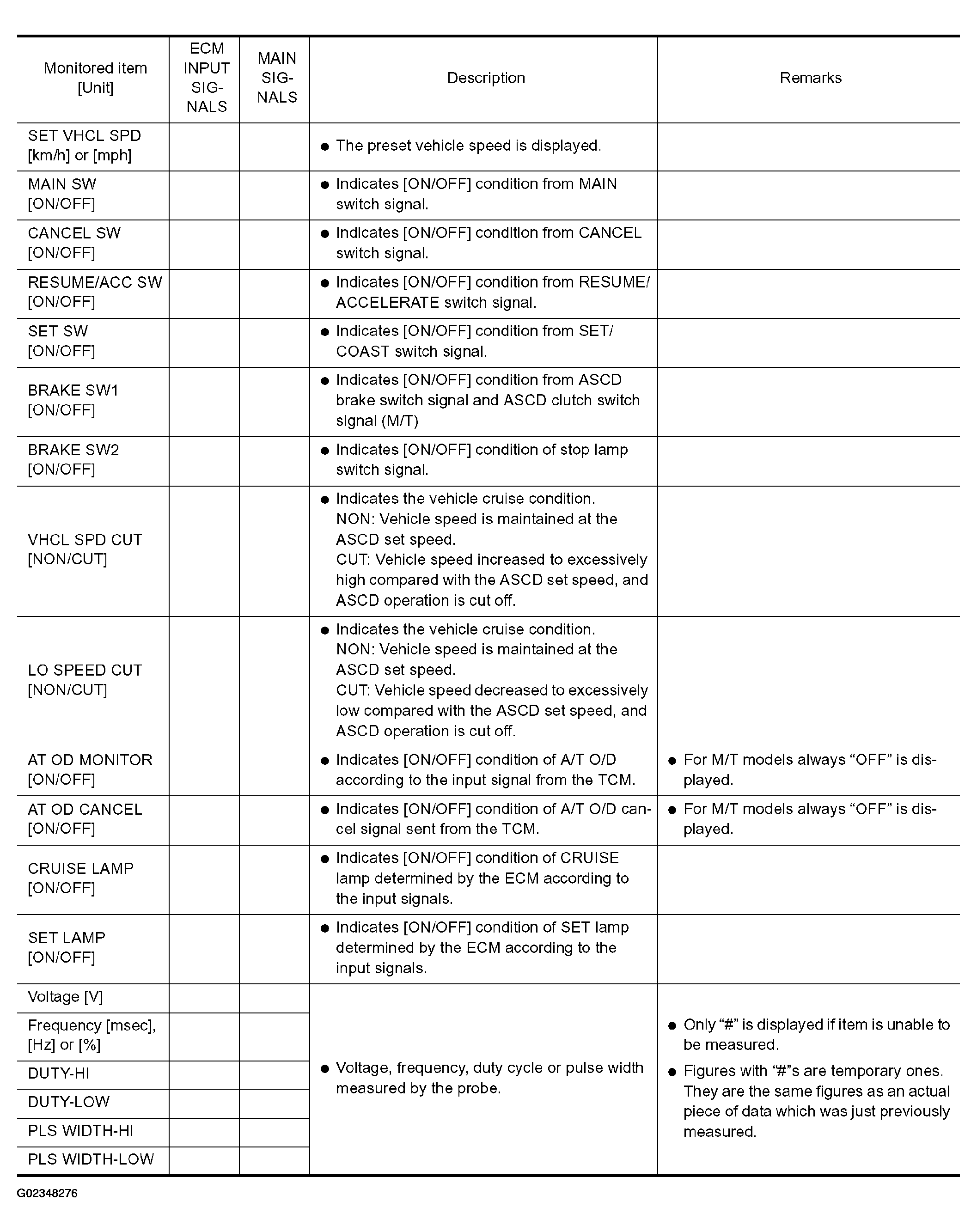

Fig 4: Data Monitor Mode Monitored Item - (4 of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
