CONSULT-II Data Link Connector (DLC) Circuit: Notes

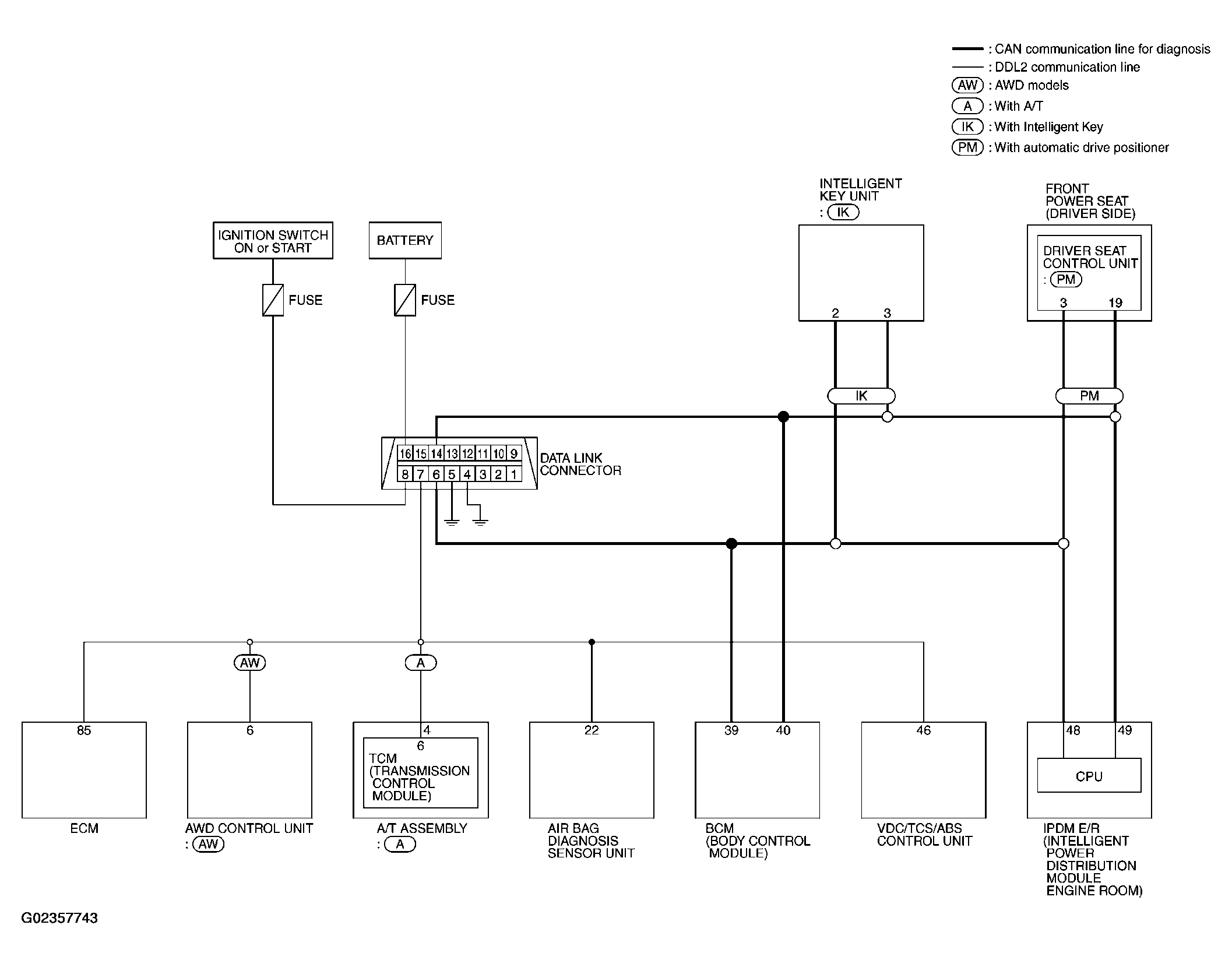

Fig 1: CONSULT-II Data Link Connector (DLC) Circuit
G02357743Courtesy of NISSAN MOTOR CO., U.S.A.
