CONSULT-II Start Procedure

NOTE: Turning ignition switch off when performing CAN diagnosis could cause CAN memory to be erased.
  1. Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.

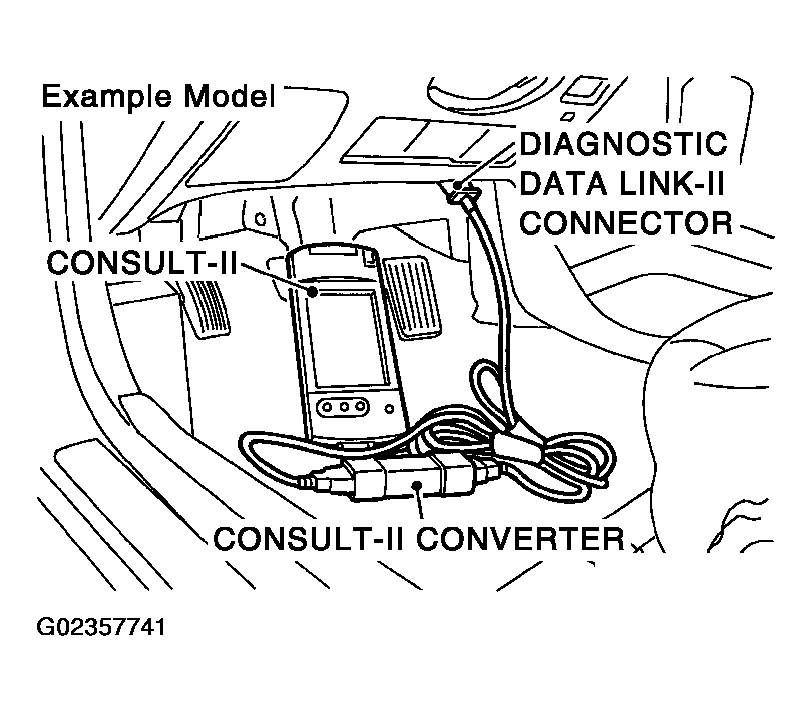

    Fig 1: Connecting CONSULT-II And CONSULT-II CONVERTER To Data Link Connector
    G02357741Courtesy of NISSAN MOTOR CO., U.S.A.
  2. If necessary, turn on the ignition switch.
  3. Touch "START(NISSAN BASED VHCL)" or System Shortcut key (eg: ENGINE) on the screen.
    Fig 2: CONSULT-II Engine Menu Display
    G02357742Courtesy of NISSAN MOTOR CO., U.S.A.
