Door Switch Check

With CONSULT-II

• Check door switch in "DATE MONITOR" mode with CONSULT-II. Refer to "DATA MONITOR "
  1. When door is opened: DOOR SW ON
  2. When door is closed: DOOR SW OFF

Without CONSULT-II

• Check all door switches in switch monitor mode. Refer to Remote keyless entry system "SWITCH MONITOR ".

OK or NG

1. OK: Door switch is OK.
2. NG: GO TO 2.

Fig 1: Checking Door Switch Input Signal

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Turn ignition switch OFF.
2. Disconnect door switch connector.
3. Check continuity between following terminals and ground.

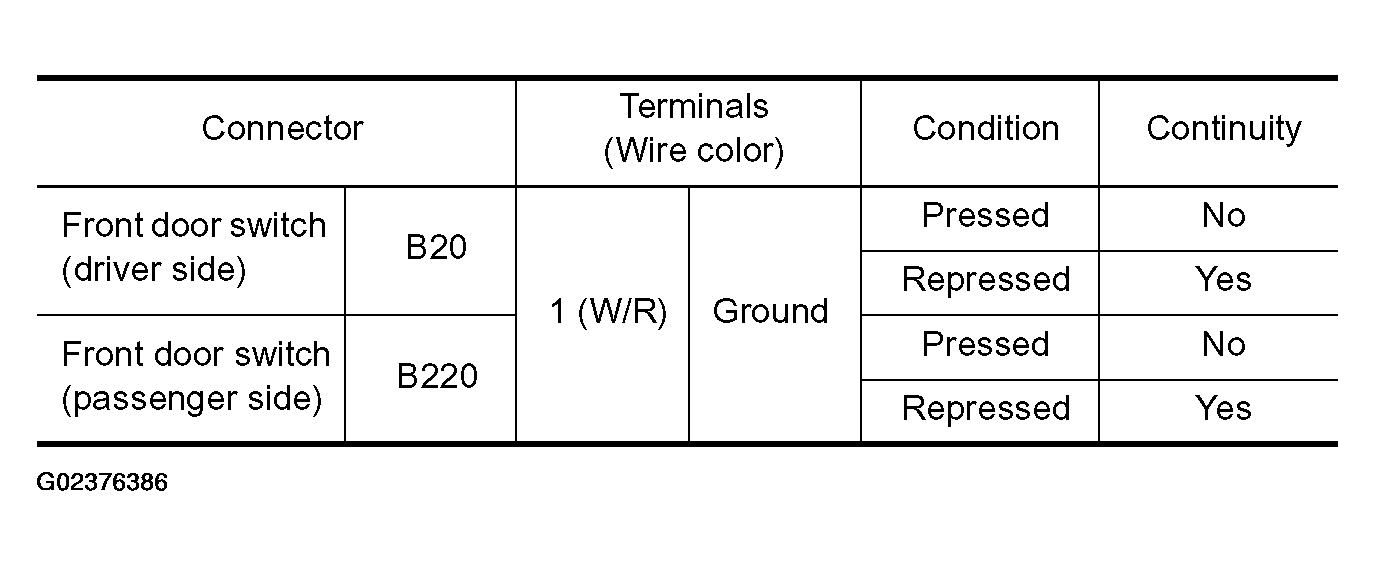

   Fig 2: Terminal Continuity Chart

   Courtesy of NISSAN MOTOR CO., U.S.A.
   Fig 3: Checking Continuity Between Following Terminals And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: Repair or replace following item, when there is a malfunction.
   • Door switch ground condition
   • Harness for open or short between door switch and BCM
2. NG: Replace door switch.
