Consult-II Basic Operation Procedure

Turn ignition switch "OFF".
Connect "CONSULT-II" and "CONSULT-II CONVERTER" to data link connector.

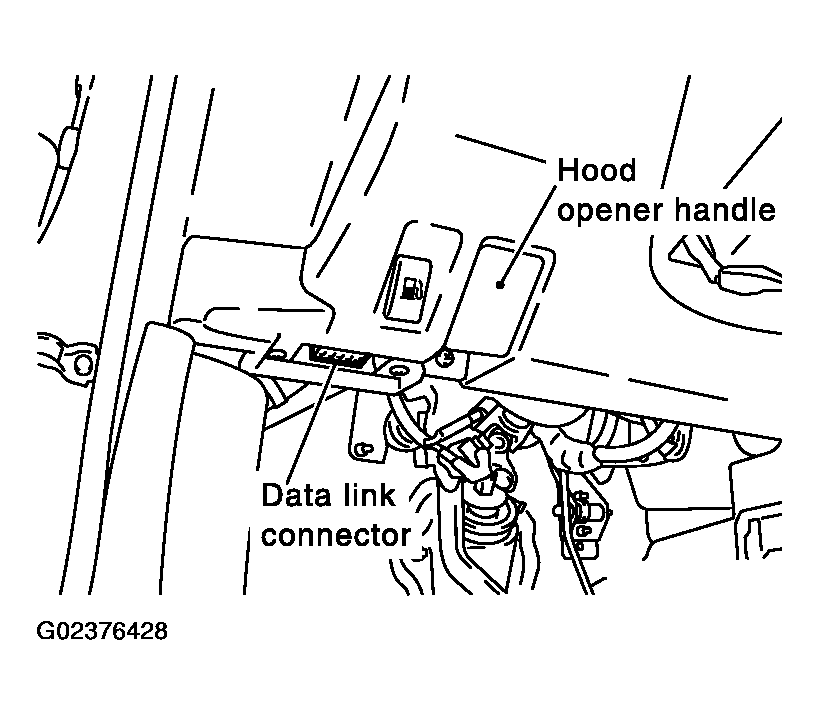

Fig 1: Connecting Consult-II And Consult-II Converter To Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START (NISSAN BASED VHCL)".

Fig 2: Consult - II Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "IVMS" on the "SELECT SYSTEM" screen. If "BCM" is not indicated, go to Refer to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

Fig 3: Select System - Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Check the model specification, and touch either "WITH SUNROOF" or "WITHOUT SUNROOF" on the "SELECT SYS COND" screen.
Touch "OK". If the selection is wrong, touch "CANCEL".
Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.

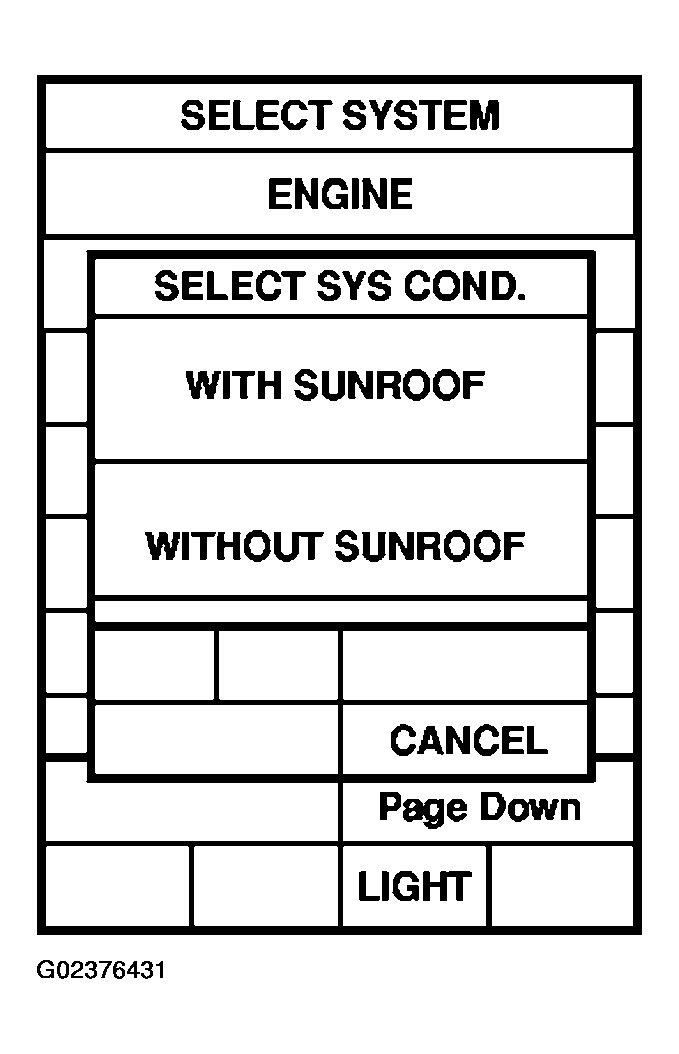

Fig 4: Select System With Sun Roof - Display
Courtesy of NISSAN MOTOR CO., U.S.A.
