Consult-II Basic Operation Procedure

Turn ignition switch "OFF".
Connect "CONSULT-II" and CONSULT-II CONVERTER to data link connector.

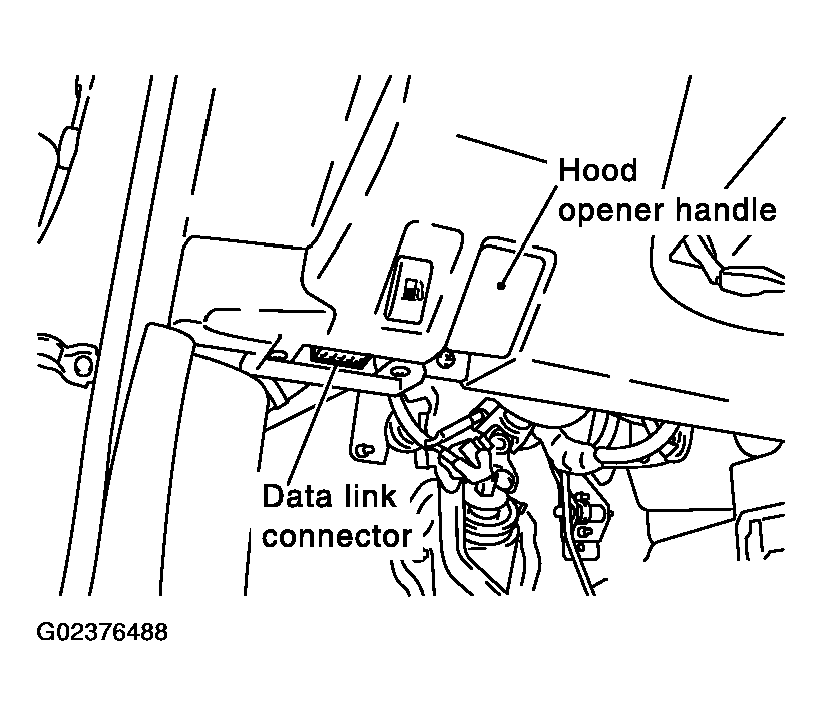

Fig 1: Connecting Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START (NISSAN BASED VHCL)".

Fig 2: Displaying Consult-II
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "IVMS" on the "SELECT SYSTEM" screen.
If "BCM" is not indicated, go to Refer to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

Fig 3: Displaying Select System
Courtesy of NISSAN MOTOR CO., U.S.A.
Check the model specification, and touch either "WITH SUNROOF" or "WITHOUT SUNROOF" on the "SELECT SYS COND" screen.
Touch "OK". If the selection is wrong, touch "CANCEL".
Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.

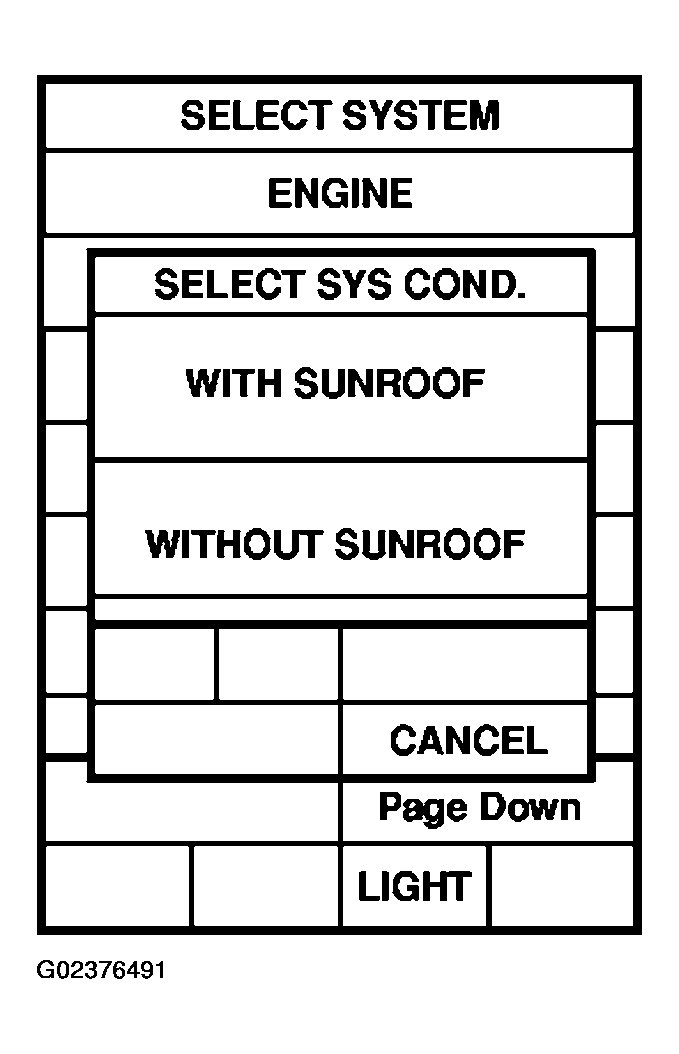

Fig 4: Displaying With Sunroof
