System Description: Notes
- When switching the door mirror remote control switch position (LH/RH), the system moves driver or passenger door mirror face downward, in relation to the A/T selector lever being shifted to Reverse Position.
- The mirror position with the reverse gear engaged can be adjusted and the adjusted mirror position can be stored in memory (2 positions).

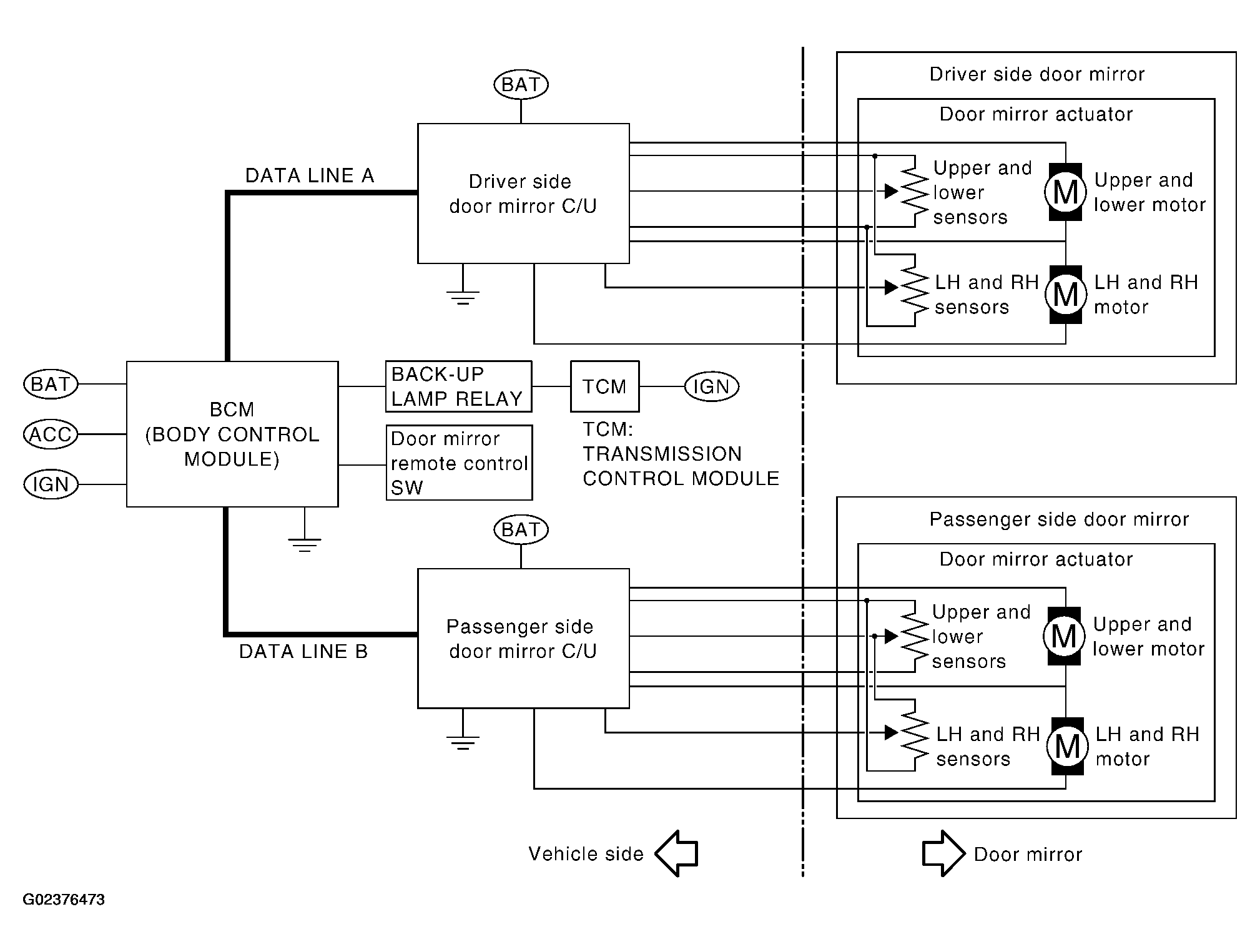

- With reverse gear-linked operation signal, the door mirror control unit- driver side (LCU03) / passenger side (LCU04) installed on the door panel drives and controls the motors (UP/DOWN, LH/RH).
- Using the self-diagnostic function and CONSULT-II, system diagnosis can be performed.
Courtesy of NISSAN MOTOR CO., U.S.A.
