Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

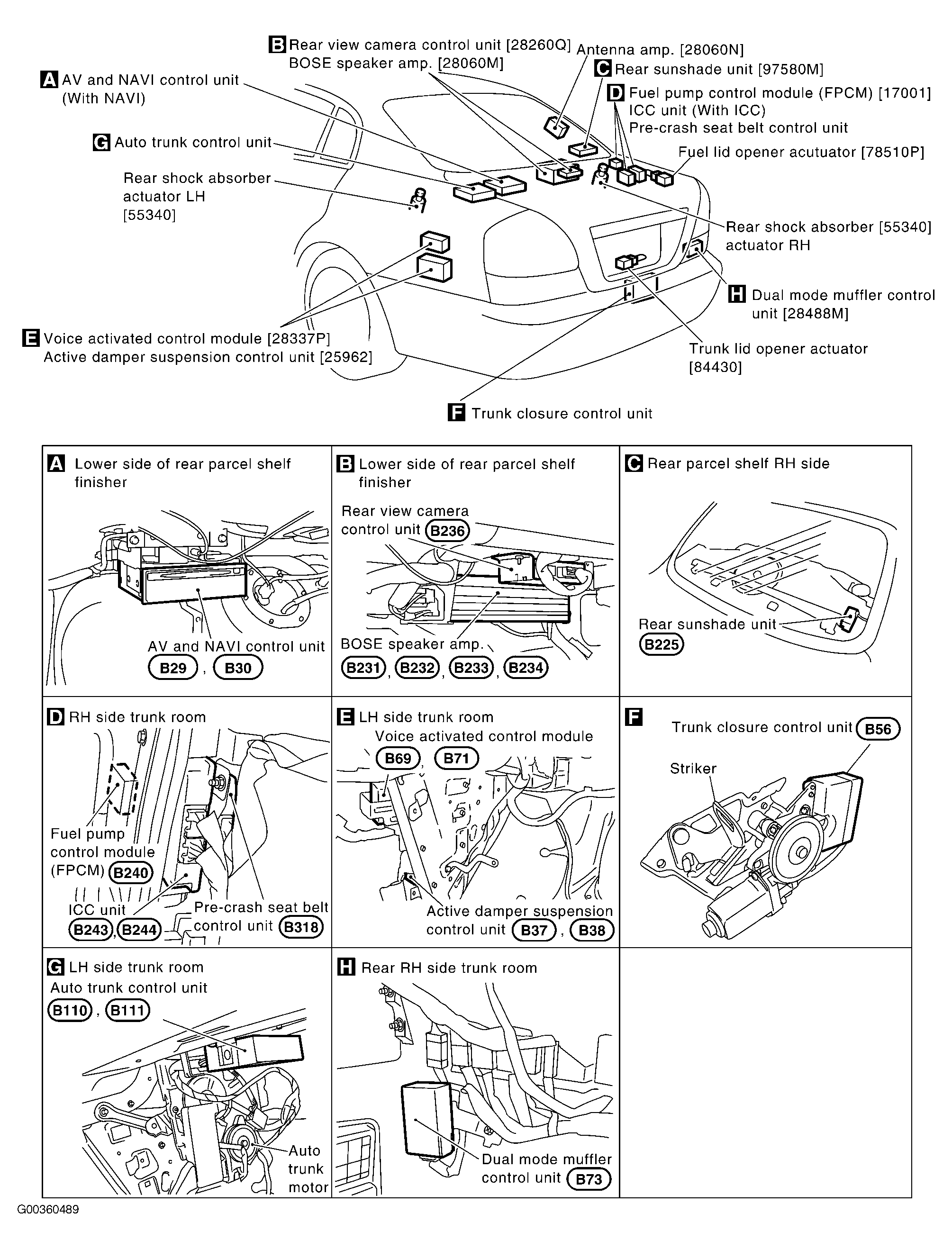

| Active Damper Suspension Control Unit | Behind left rear shock tower. See Figure . |
| Air Bag Diagnosis Sensor Unit | Under rear of center console. See Figure . |
| Auto Trunk Control Unit | At rear of luggage compartment. See Figure . |
| AV Control Unit | Behind center of dash. See Figure . |
| AV & NAVI Control Unit (W/NAVI) | Under left side of rear parcel shelf. See Figure . |

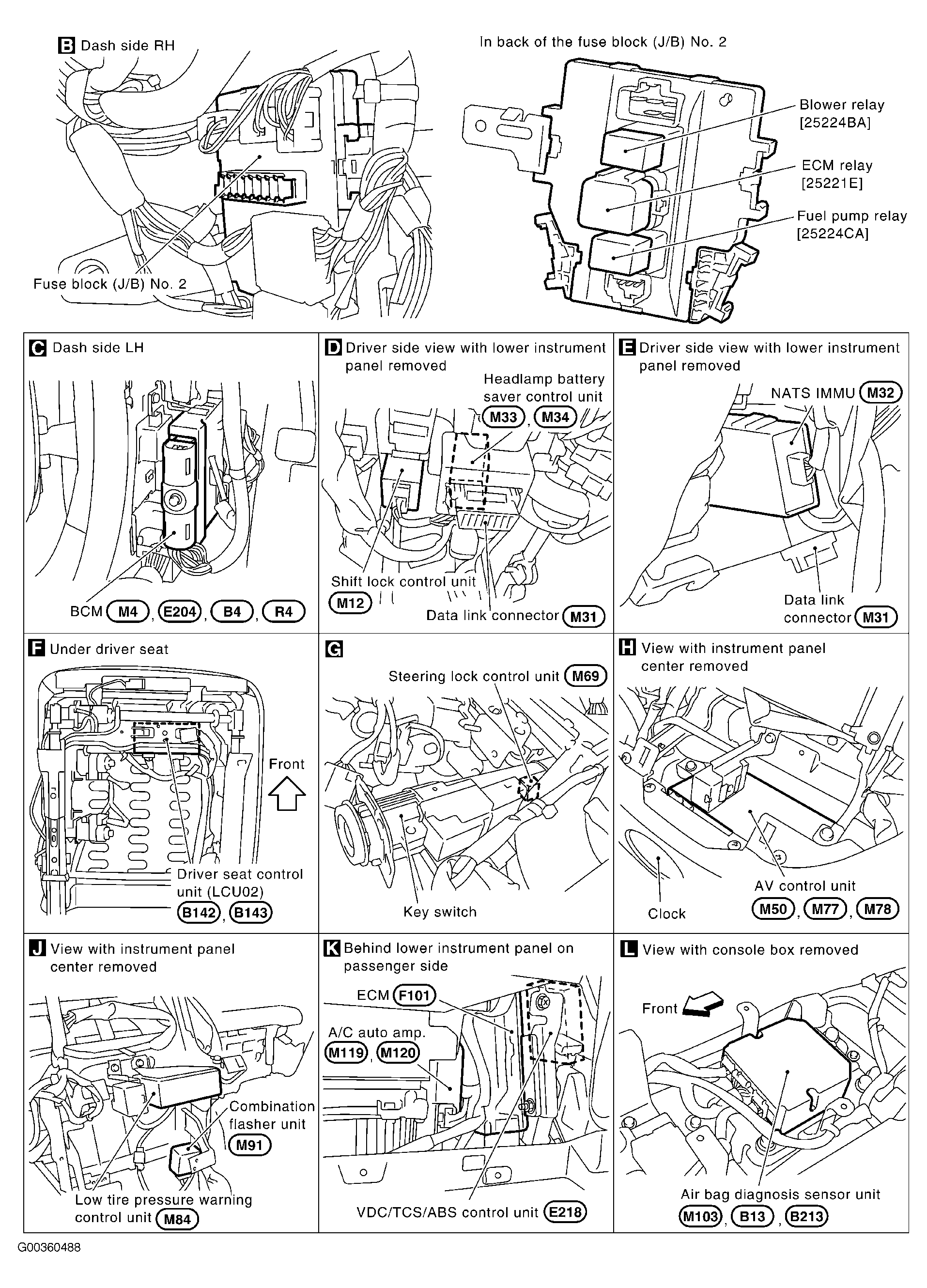

| BCM | Behind left kick panel. See Figure . |
| Daytime Light Control Unit (Canada) | Left side of engine compartment. See Figure . |

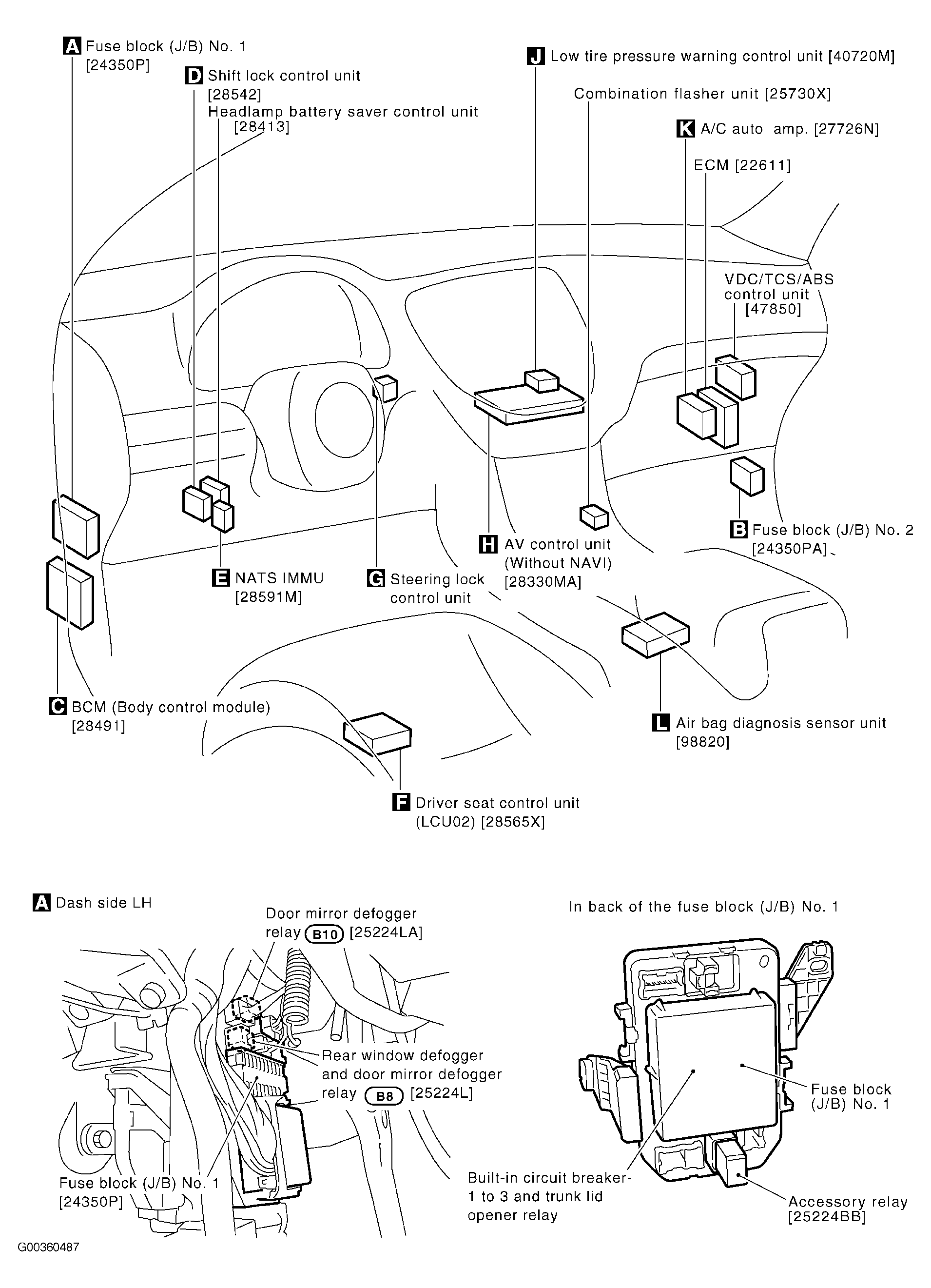

| Door Mirror Defogger Relay | On fuse block (J/B) No.1. See Figure . |

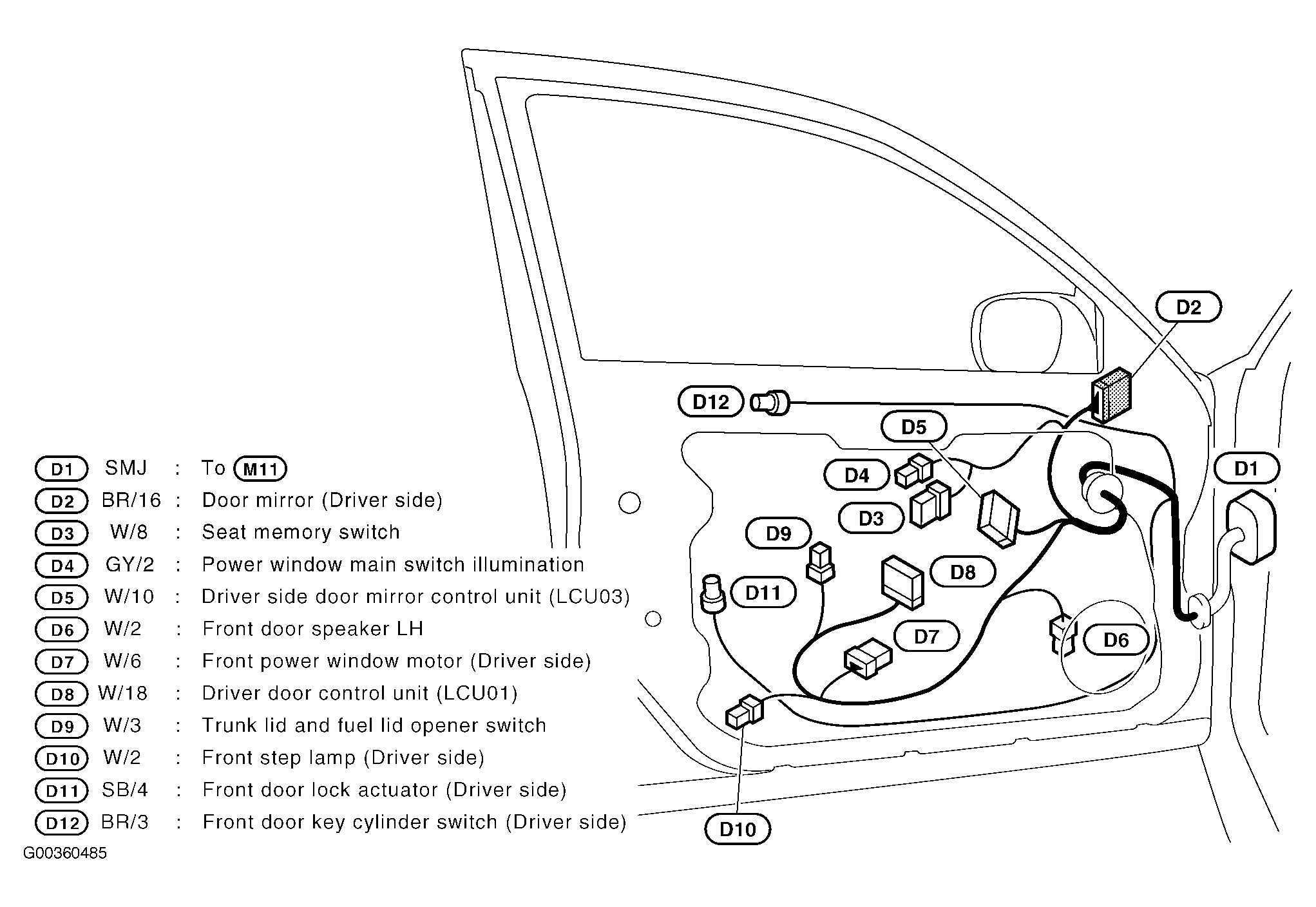

| Driver Door Control Unit (D8) | In driver's door. See Figure . |
| Driver Side Door Mirror Control Unit (D5) | In driver's door. See Figure . |
| Driver Seat Control Unit | Under driver's seat. See Figure . |
| Dual Mode Muffler Control Unit | At right side of trunk. See Figure . |
| ECM | Behind glove box. See Figure . |
| Fuel Level Sensor & Fuel Pump (B239) | At fuel tank. See Figure . |
| Fuel Pump Control Module | At right side of trunk. See Figure . |
| Headlamp Battery Saver Control Unit | Behind dash, left of steering column. See Figure . |
| ICC Unit | At right side of trunk. See Figure . |
| Left Side Curtain Air Bag Module (B24) | At left "B" pillar. See Figure . |
| Low Tire Pressure Warning Control Unit | Behind center of dash. See Figure . |
| NATS IMMU | Behind dash, left of steering column. See Figure . |
| Passenger Door Control Unit | In front passenger's door. See Figure . |
| Passenger Side Door Mirror Control Unit | In front passenger's door. See Figure . |
| Pre-Crash Seat Belt Control Unit (B318) | Right side of luggage compartment. See Figure . |
| Rear LH Door Control Unit (D58) | In left rear door. See Figure . |
| Rear Power Seat Control Unit (LH) | Under left rear seat. See Figure . |
| Rear Power Seat Control Unit (RH) | Under right rear seat. See Figure . |
| Rear RH Door Control Unit | In right rear door. See Figure . |
| Rear Sunshade Unit | At right "C" pillar. See Figure . |
| Rear View Camera Control Unit | At center front of trunk. See Figure . |
| Right Side Curtain Air Bag Module (B224) | At right "C" pillar. See Figure . |
| Shift Lock Control Unit | Behind dash, left of steering column. See Figure . |
| Steering Lock Control Unit | Behind dash, right of steering column. See Figure . |
| Trunk Closure Control Unit | At center rear of trunk. See Figure . |
| Trunk Lid Opener Relay | On back of fuse block (J/B) No.1. See Figure . |
| VDC/TCS/ABS Control Unit | Behind right kick panel. See Figure . |
| Voice Activated Control Module | Left rear of trunk. See Figure . |
