Terminals and Reference Value for Combination Meter

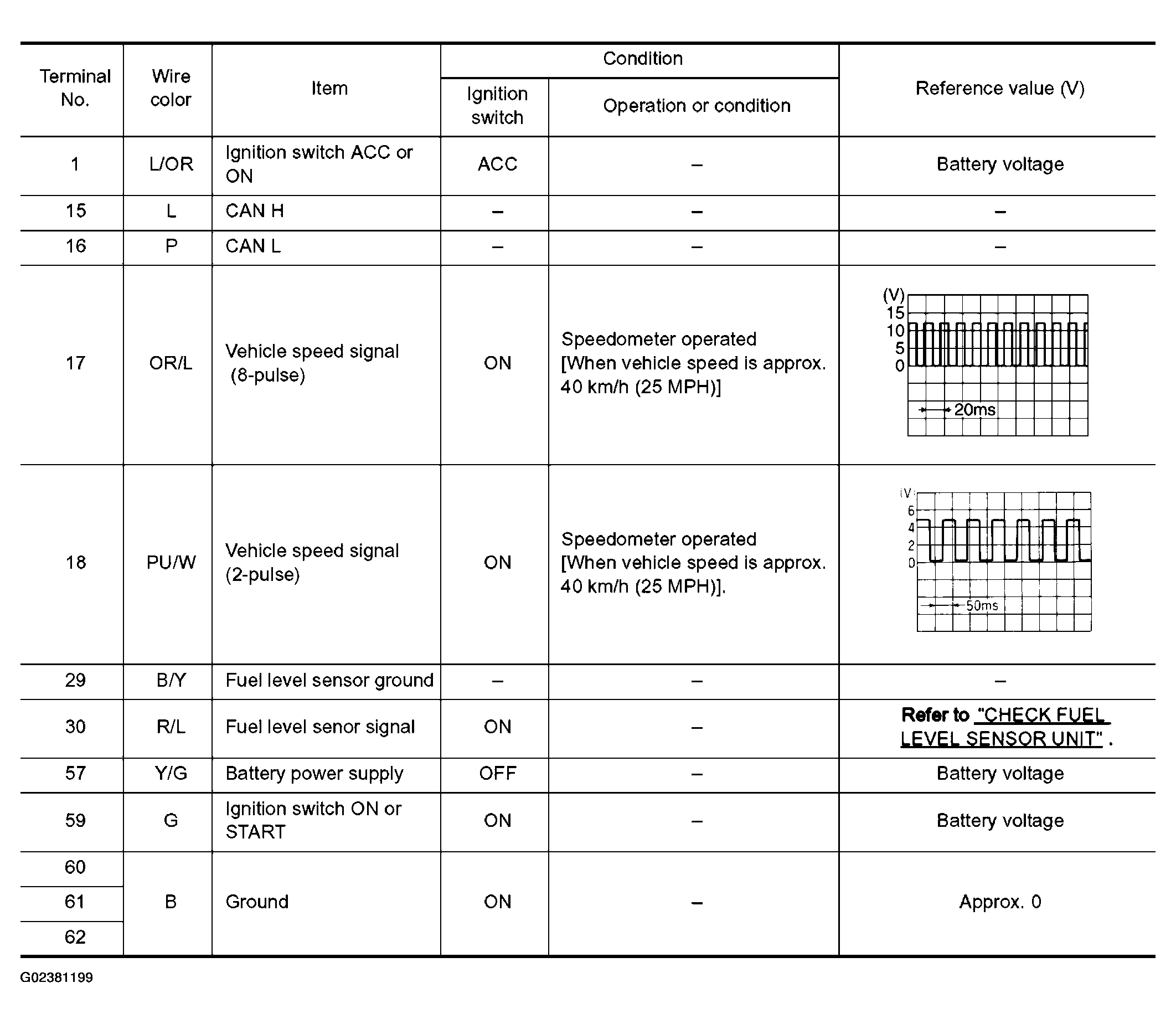

Fig 1: Terminals And Reference Value For Combination Meter Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
