Terminals and Reference Value for Multifunction Switch

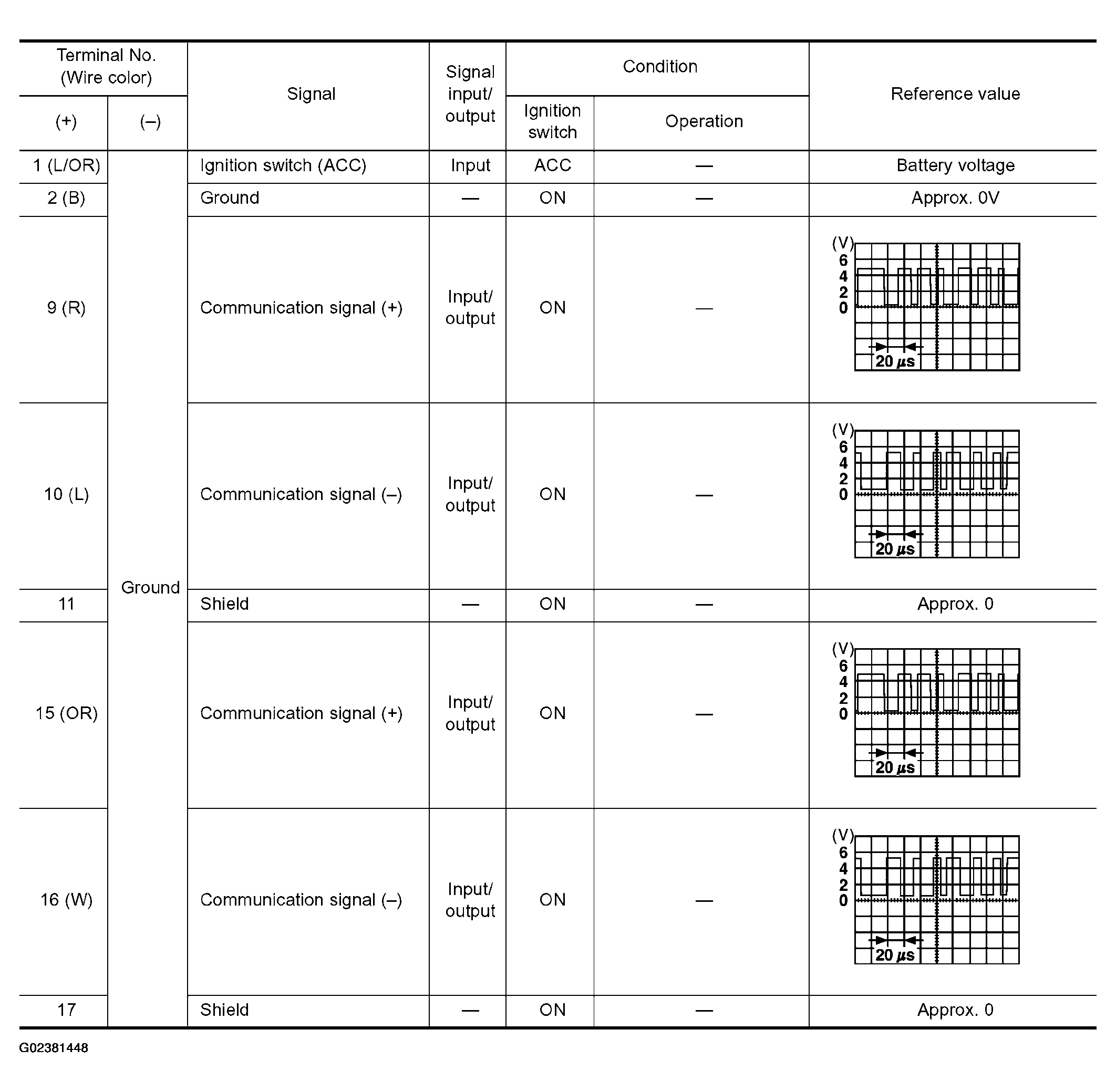

Fig 1: Terminals And Reference Value For Multifunction Switch Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
