Signal Monitor

Displays status of the vehicle signal input to the AV control unit.
(Refer to "CONFIRMATION/ADJUSTMENT MODE " for operation conditions for the connections to be indicated.)

Fig 1: Displaying Consult II Signal Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.
For each signal, a comparison of actual operating status and the status recognized by the system can be checked.

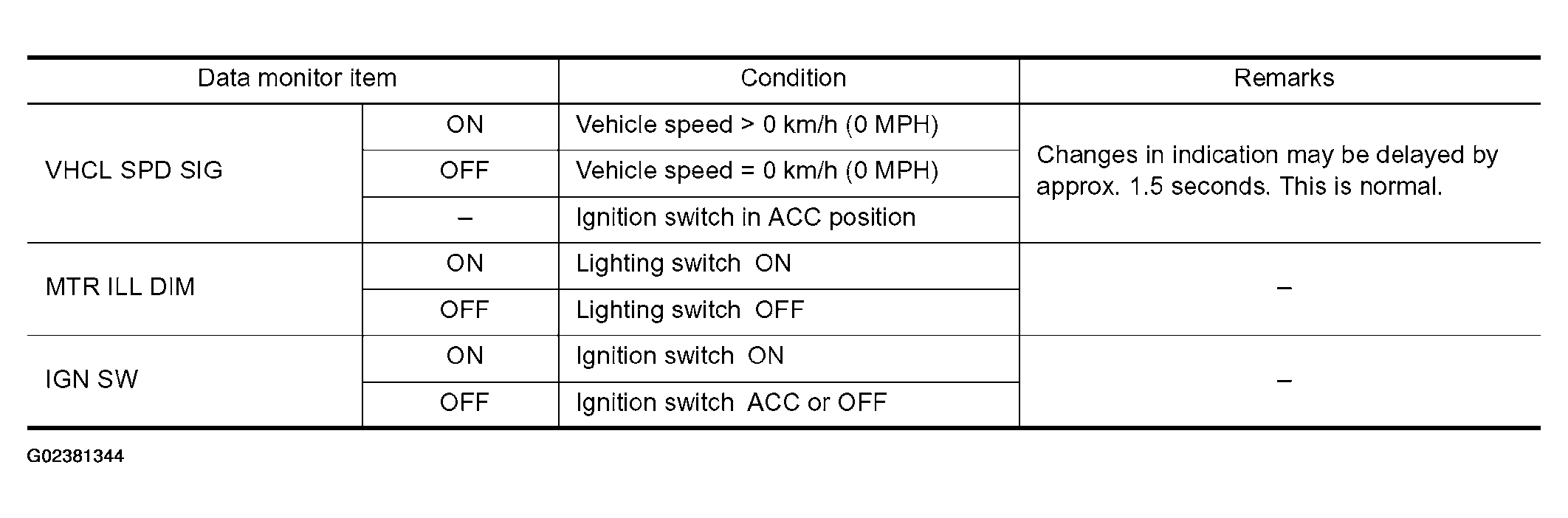

Fig 2: Data Monitor Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
