Setting Of Vehicle Status: Notes

Setting of electric status can be changed by multifunction switch. The signal is sent to BCM through AV control unit to change vehicle electric system setting.
AV control unit is communicating with BCM and combination meter.

Press "SETTING" switch to display vehicle information display.

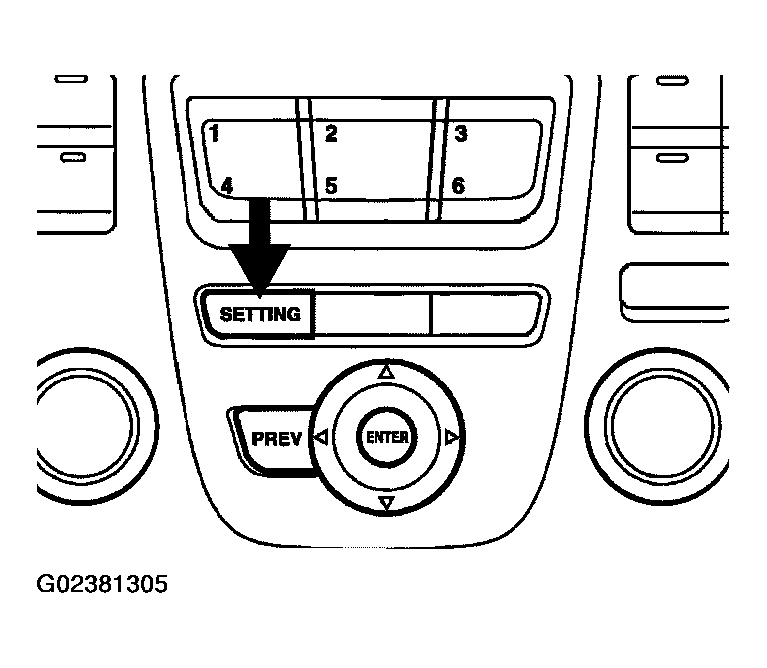

Fig 1: Identifying Setting Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Select "Vehicle Electronic Systems".

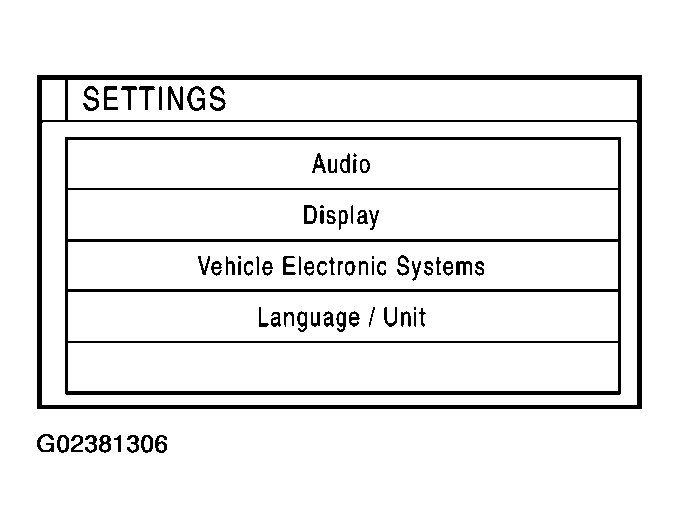

Fig 2: Displaying Vehicle Electronic Systems
Courtesy of NISSAN MOTOR CO., U.S.A.
Select a vehicle status shown on the display.
Adjustable vehicle status
- Lift Steering Column When Exiting Vehicle
- Adjust Driver Seat When Exiting Vehicle
- Illuminate Interior When Unlocking Vehicle
- Interior Lights Off Delay

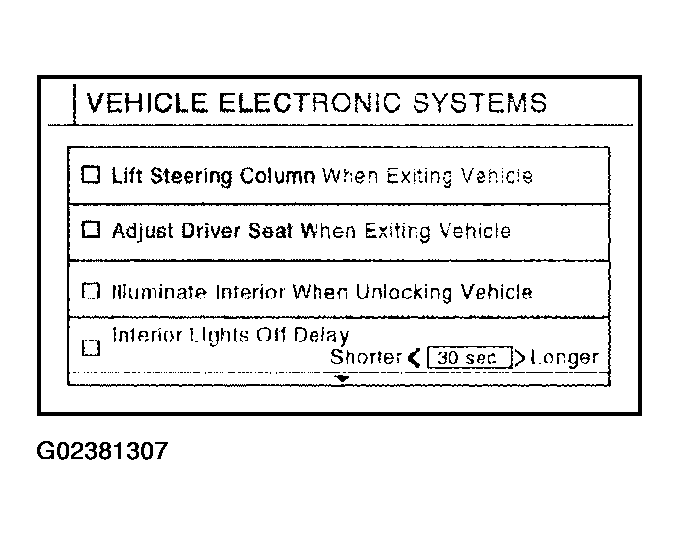

  Fig 3: Displaying Vehicle Status System
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Sensitivity of Automatic Headlights
- Automatic Headlights Off Delay
- Keyless Remote Response - Horn/Lights
- Remote Custom Setting

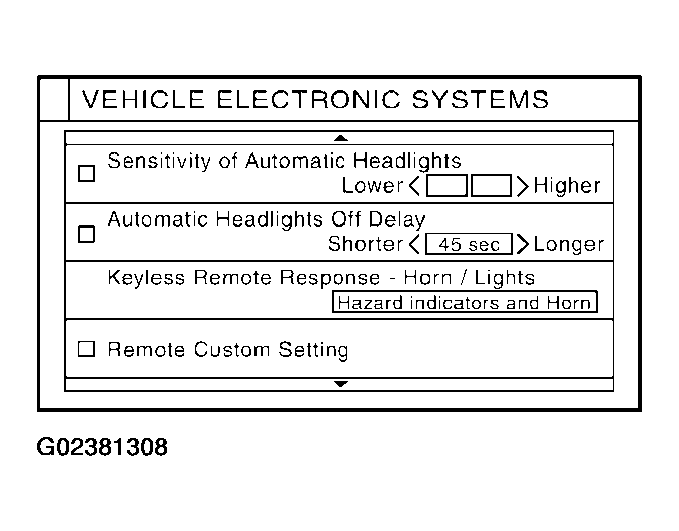

  Fig 4: Displaying Vehicle Electronic System (1 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Rain-Sensing Auto Wipers
- Return All Settings to Default

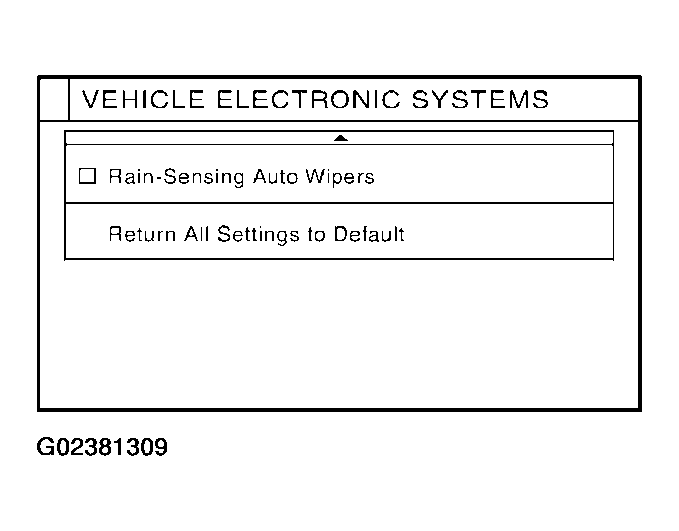

Fig 5: Displaying Vehicle Electronic System (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
