Vehicle Information System: Notes

AV control unit is received vehicle information system of signals from combination meter.
AV control unit is communicating with BCM and combination meter.

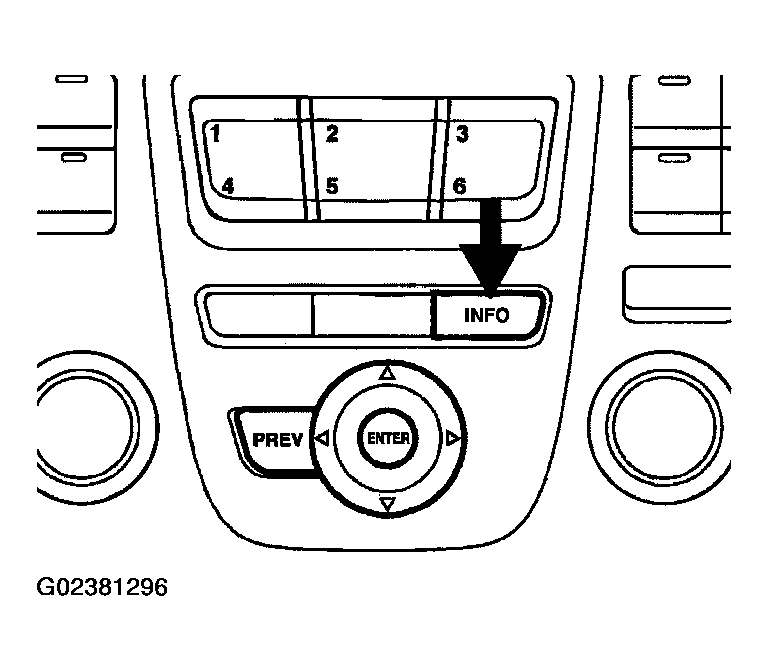

Press "INFO" switch to display vehicle information display.

Fig 1: Identifying Info Switch Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

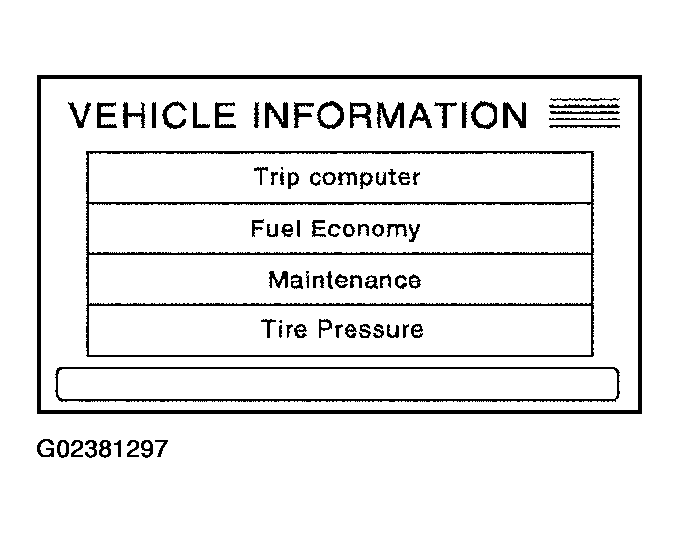

Select "Trip computer", "Fuel Economy", "Maintenance" or "Tire Pressure".

Fig 2: Displaying Trip Computer Fuel Economy
Courtesy of NISSAN MOTOR CO., U.S.A.

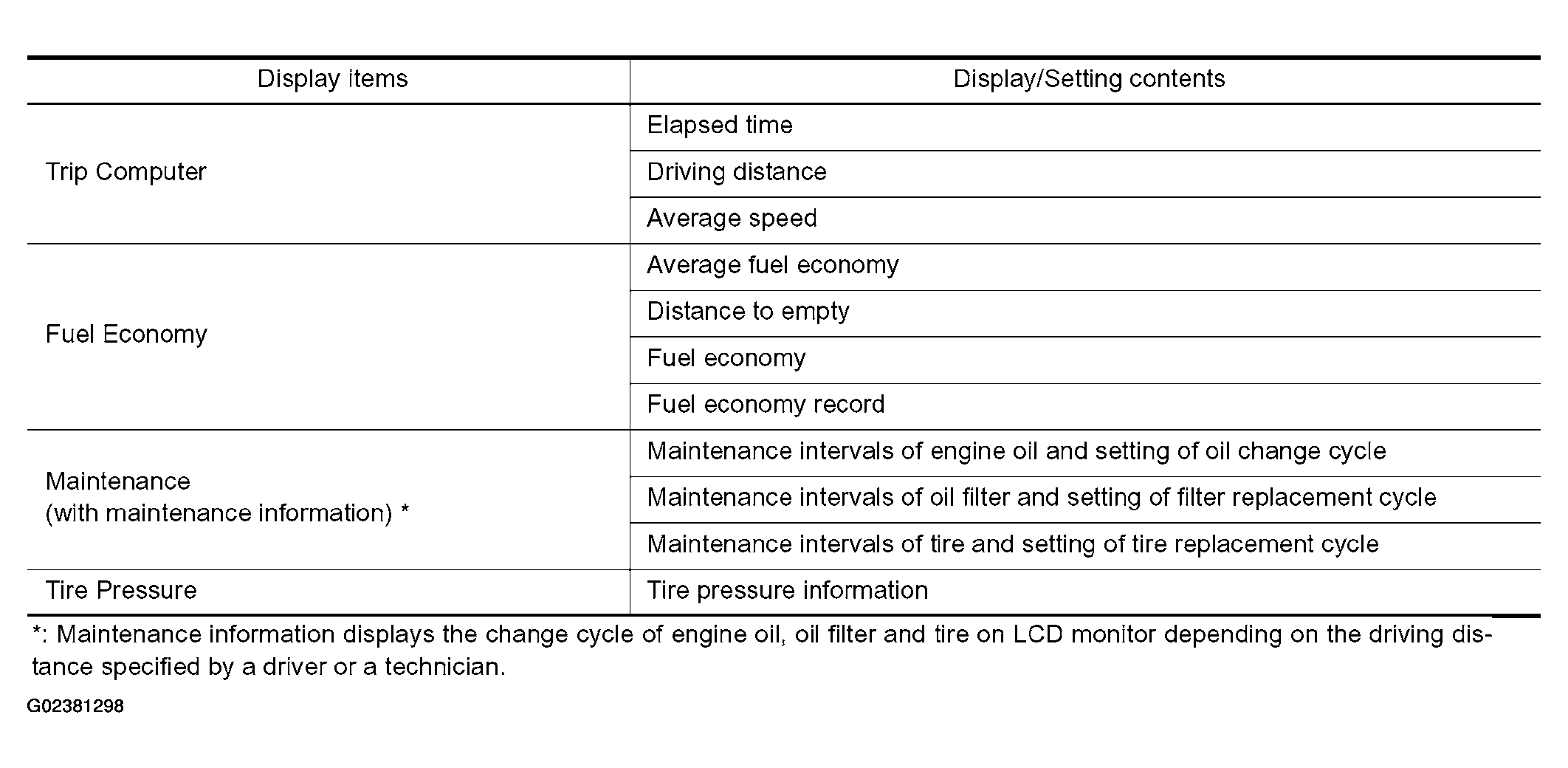

Fig 3: Displaying Setting Content
Courtesy of NISSAN MOTOR CO., U.S.A.
