Terminals and Reference Value for Dual Mode Muffler Control Unit

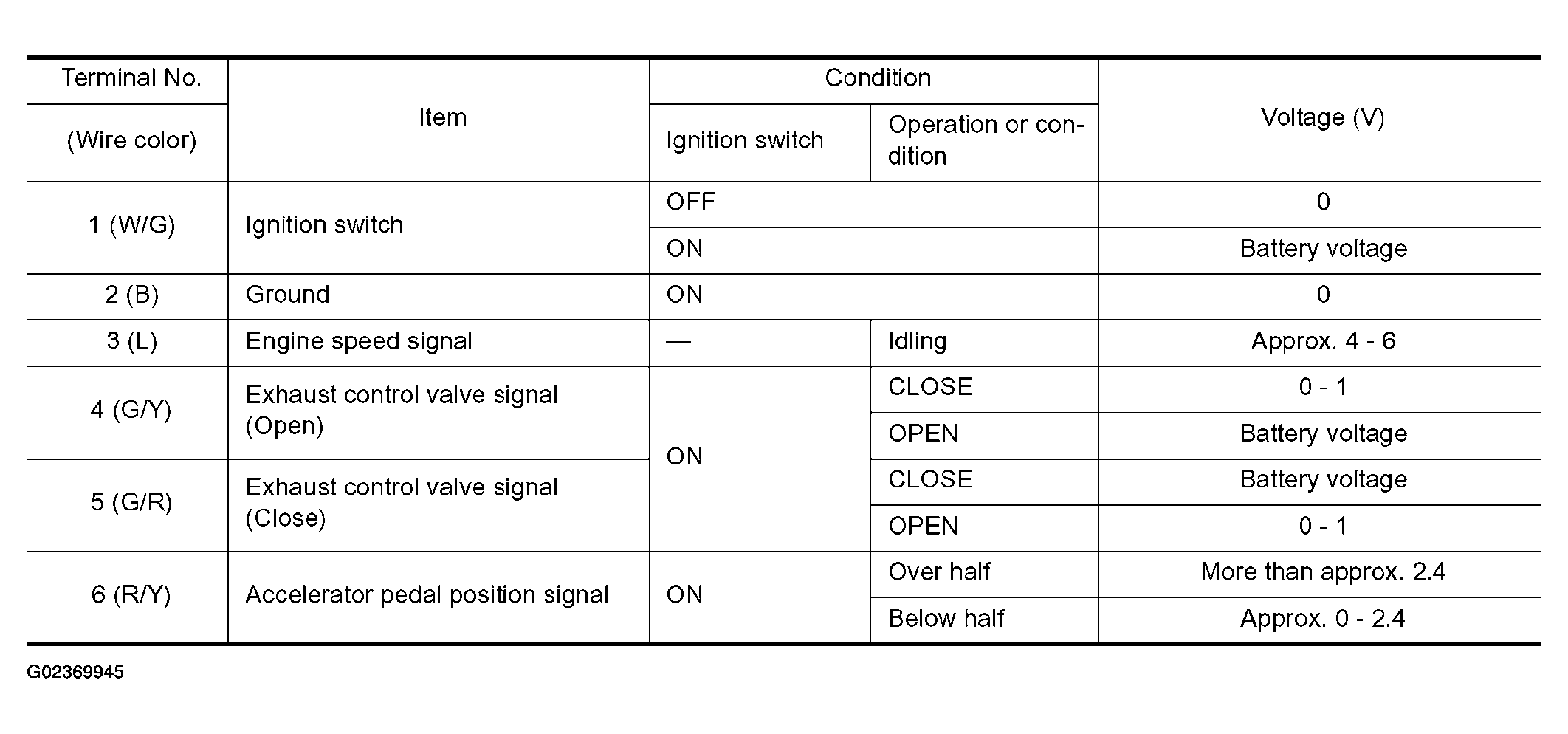

Fig 1: Dual Mode Muffler Control Reference Terminals
G02369945Courtesy of NISSAN MOTOR CO., U.S.A.
