Engine Control System - DTCS U1000 To P0430
>>
DTC P0101: MAF Sensor
>>
On Board Diagnosis Logic
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
On Board Diagnosis Logic

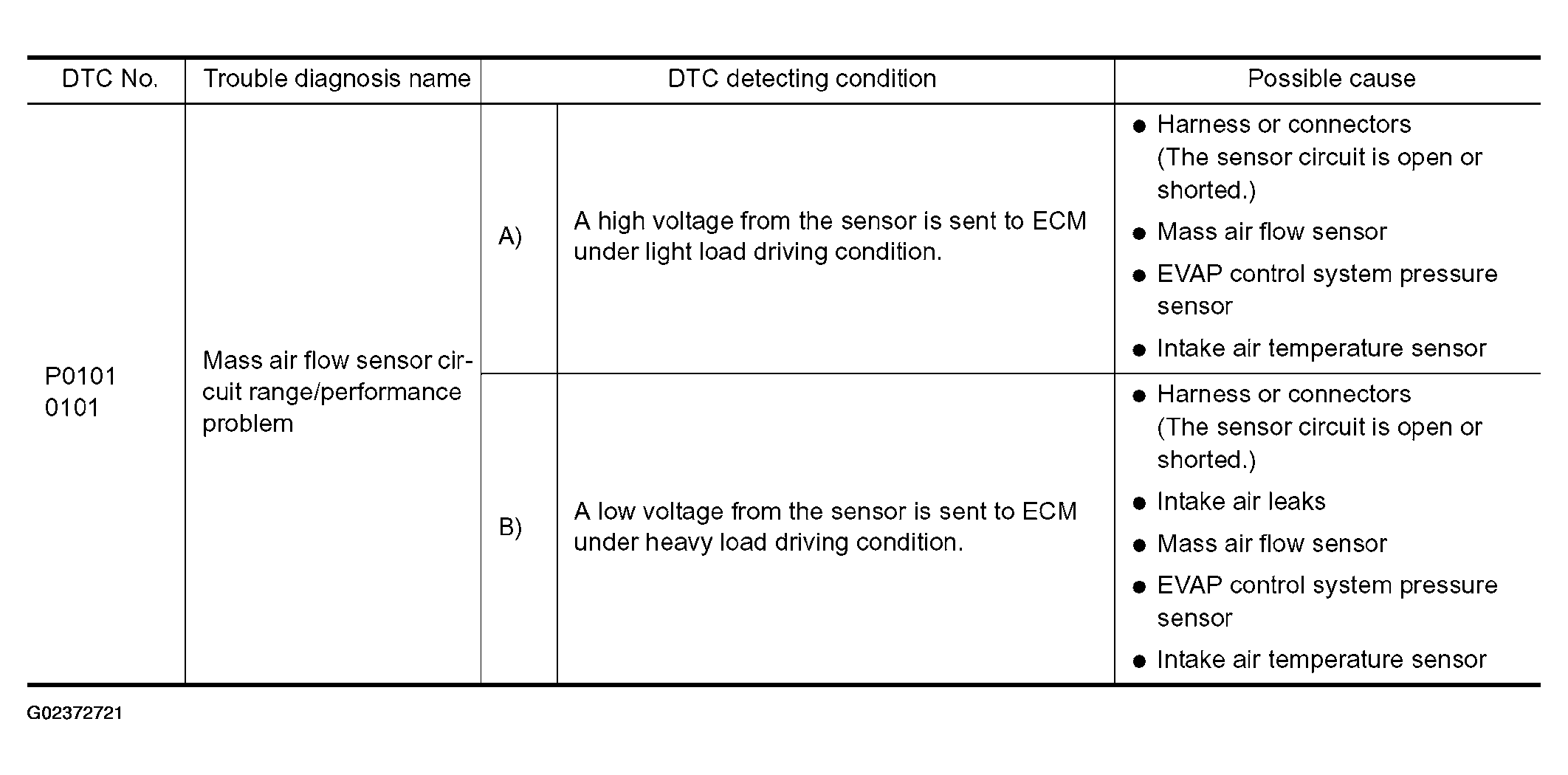

Fig 1: DTC Detection Condition Diagnosis Logic
Courtesy of NISSAN MOTOR CO., U.S.A.
