Rear View Monitor: Schematic

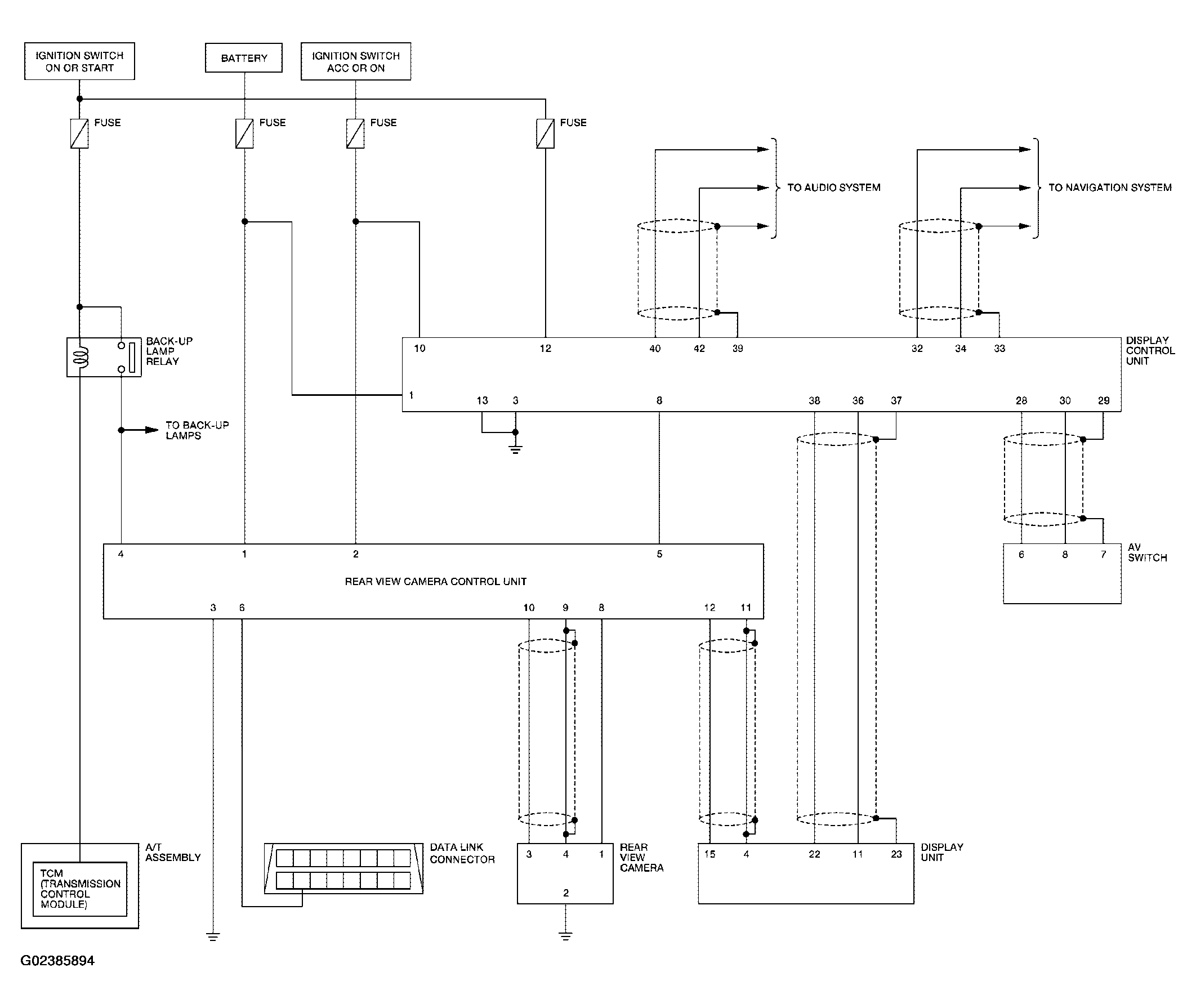

Fig 1: Rear View Monitor - Schematic
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
