Terminals and Reference Value for Rear View Camera Control Unit

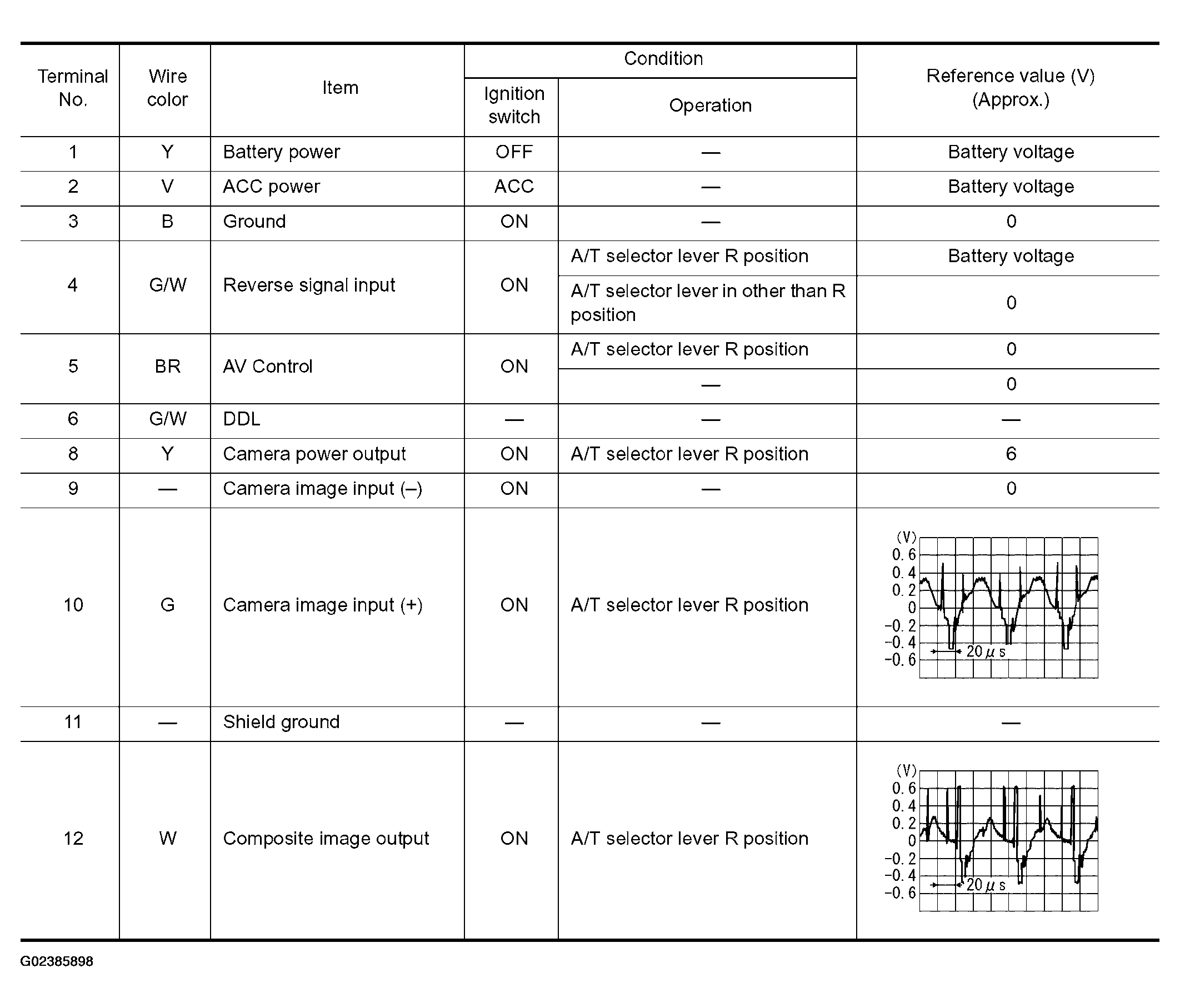

Fig 1: Rear View Camera Control Unit Terminals And Reference Value Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
