Snow Mode Switch: Wiring Diagram

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

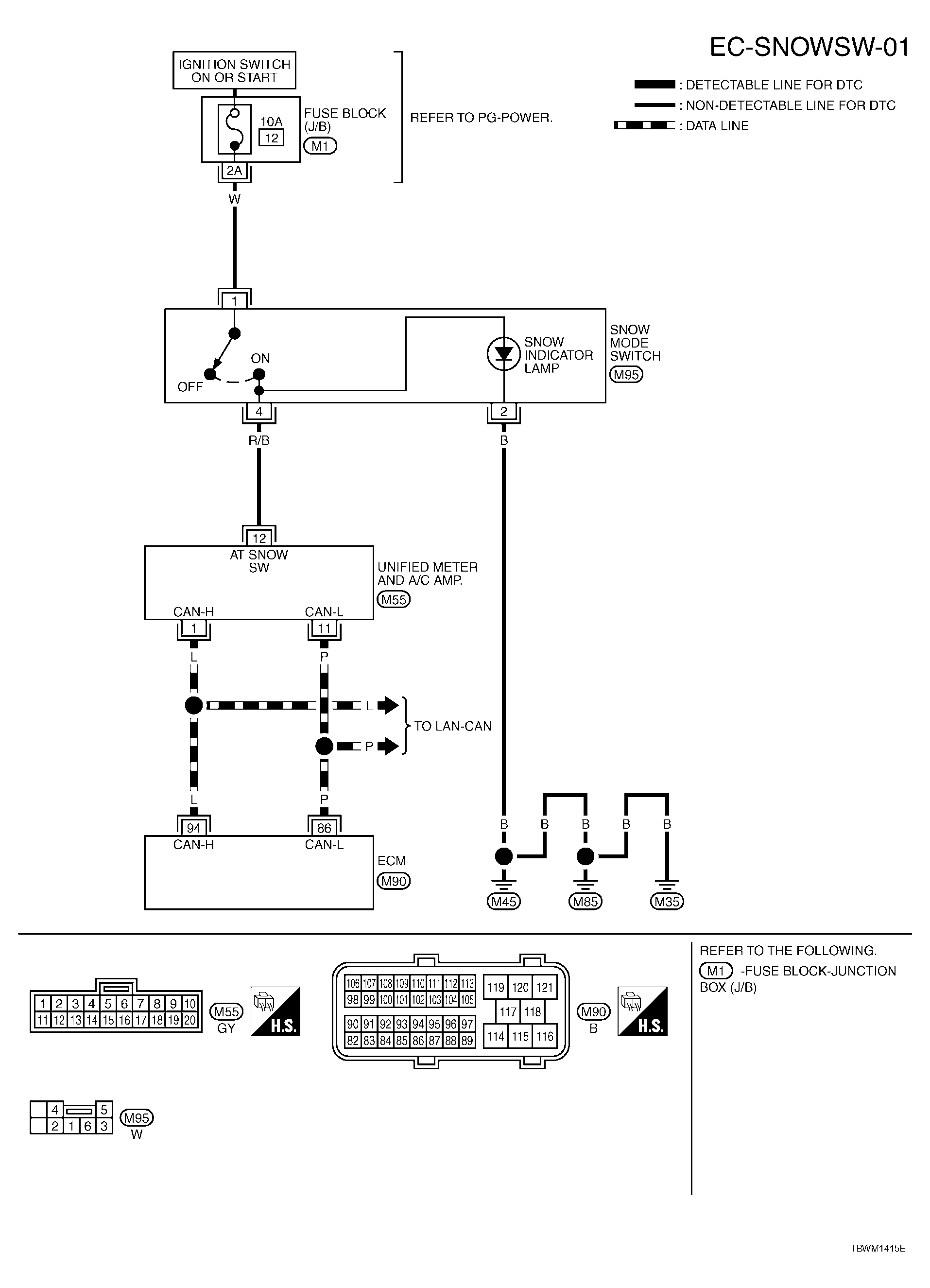

Fig 1: EC-SNOWSW-01 - Wiring Diagram
G04074457Courtesy of NISSAN MOTOR CO., U.S.A.
