Switch Operation
The system is operated by MAIN switch and four control switches, all mounted on the steering wheel.

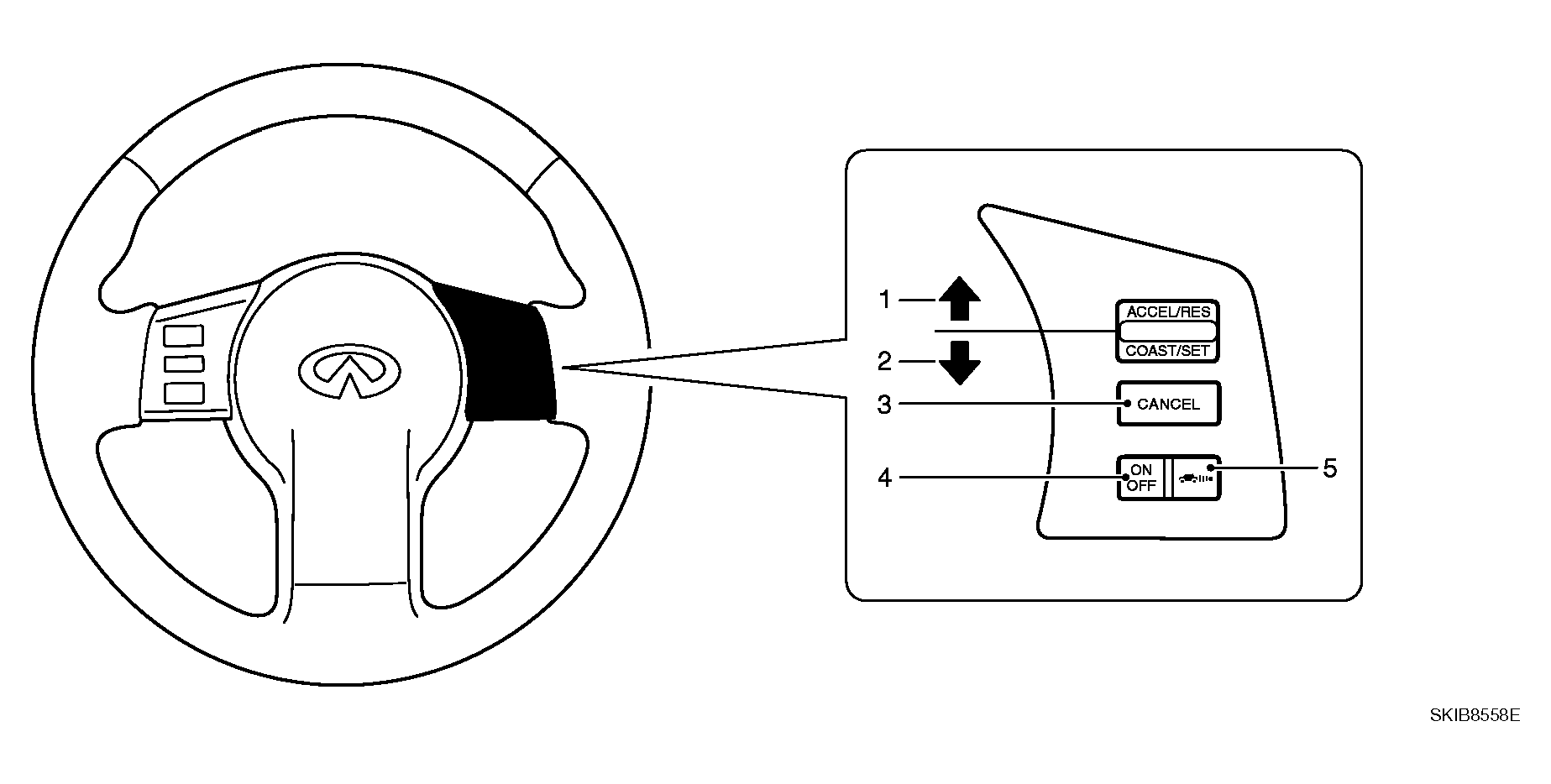

SWITCH DESCRIPTION CHART
| No. | Switch name | Description |
|---|---|---|
| 1 | RESUME/ACCELERATE switch | Resumes set speed or increases speed incrementally. |
| 2 | SET/COAST switch | Sets desired cruise speed, reduces speed incrementally. |
| 3 | CANCEL switch | Deactivates system without erasing set speed. |
| 4 | MAIN switch | Master switch to activate the system |
| 5 | DISTANCE switch | Changes the following distance from: Long, Middle, Short. |
