Home >> Infiniti >> 2006 >> FX45 >> Repair and Diagnosis >> Electrical >> Gauges >> Instrument Panel >> Instrument Panel Assembly >> Component Parts Drawing
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Component Parts Drawing

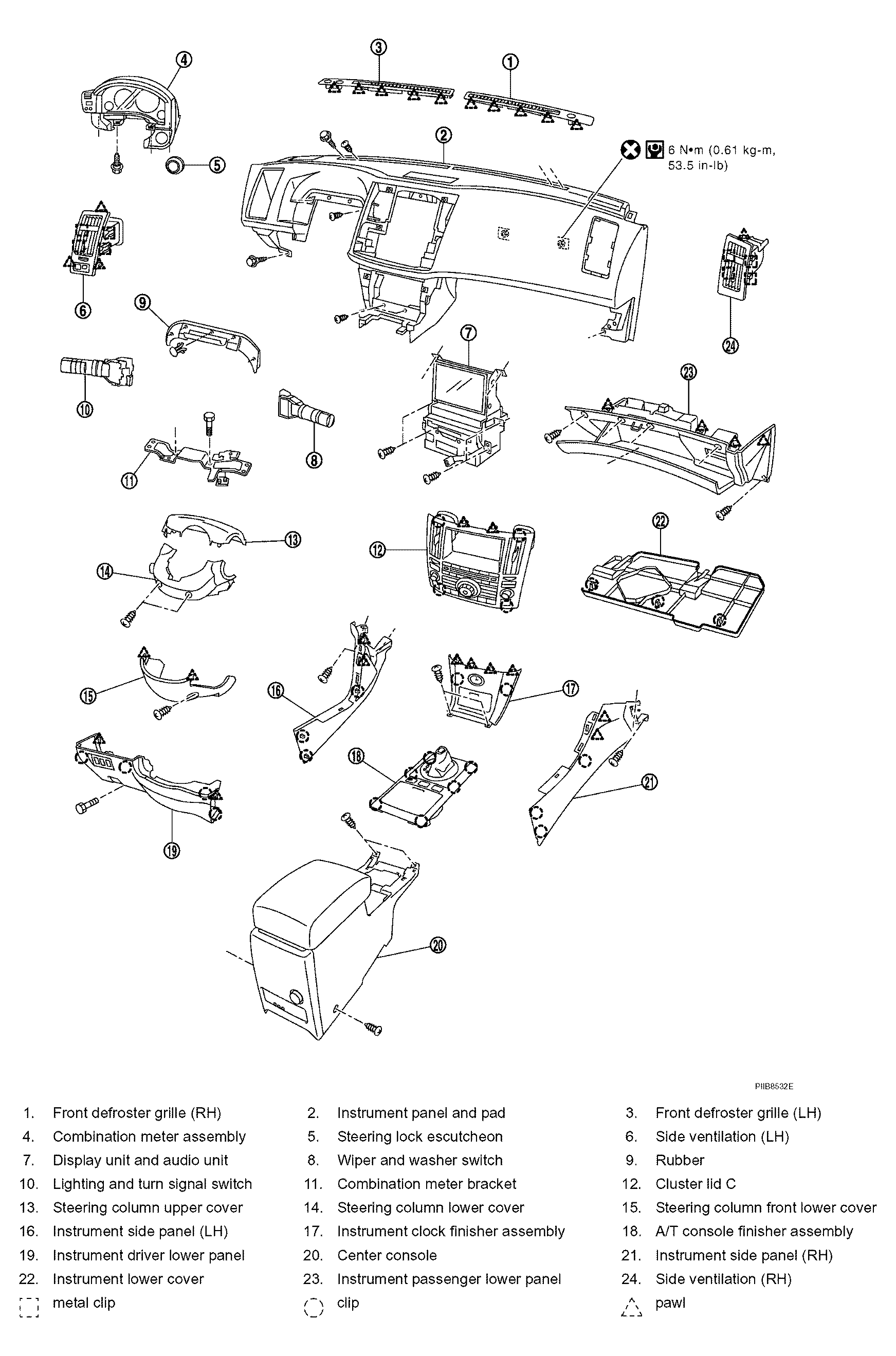

Fig 1: Replacement Components Instrument Panel Assembly With Torque Specifications
G04077571Courtesy of NISSAN MOTOR CO., U.S.A.
