Cross-sectional View (VQ35DE Models for AWD)

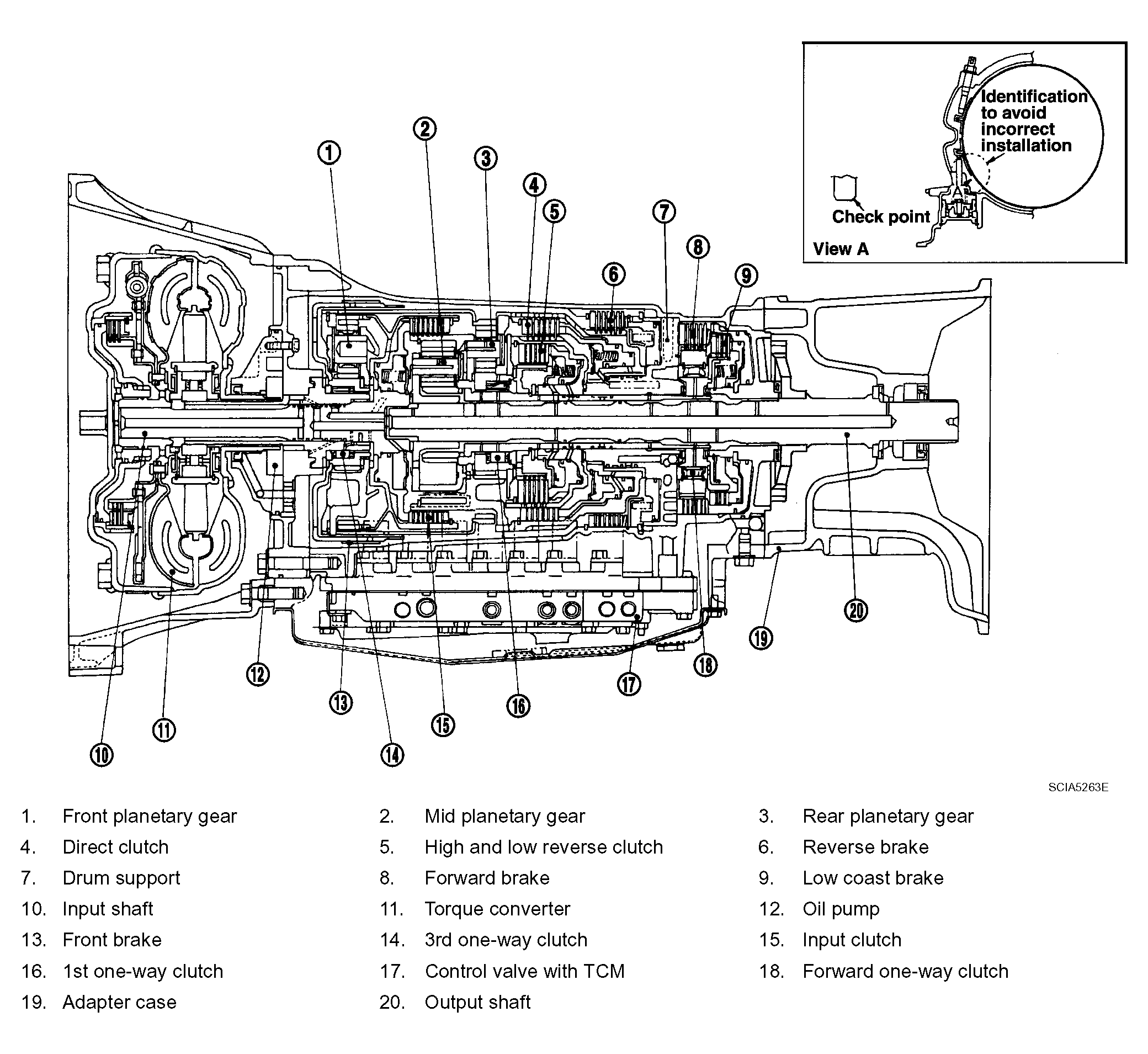

Fig 1: Cross-Sectional View Of (VQ35DE Models For AWD) - A/T Control System
G04075402Courtesy of NISSAN MOTOR CO., U.S.A.
