Revolution Sensor Components (2WD Models Only): Installation

CAUTION: After completing installation, check A/T position, A/T fluid leakage and A/F fluid level. Refer to "CHECKING OF A/T POSITION ", "CHECKING A/T FLUID ".
  1. Install revolution sensor in transmission case, and then tighten revolution sensor mounting bolt to the specified torque. Refer to "COMPONENTS ".
    CAUTION:
    • Do not subject it to impact by dropping or hitting it.
    • Do not disassemble.
    • Do not allow metal filings, etc. to get on the sensor's front edge magnetic area.
    • Do not place in an area affected by magnetism.

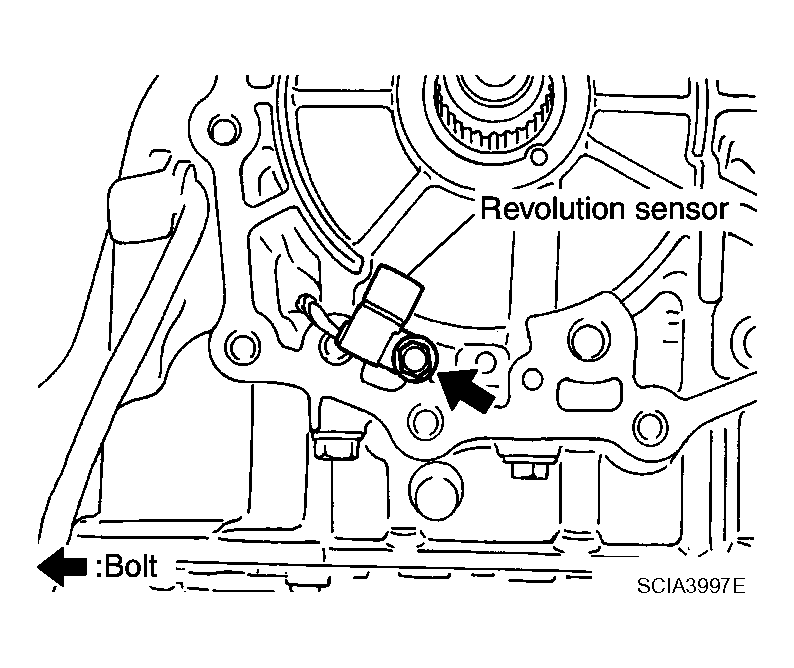

      Fig 1: Identifying Tightening Revolution Sensor Mounting Bolt
      G04075724Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Connect revolution sensor connector.

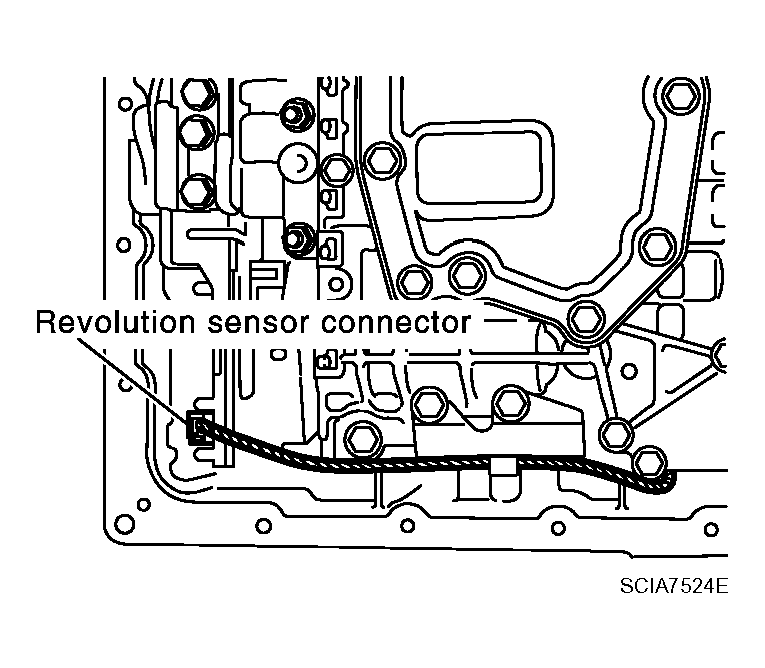

    Fig 2: Identifying Revolution Sensor Connector
    G04075725Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Securely fasten revolution sensor harness with clip.

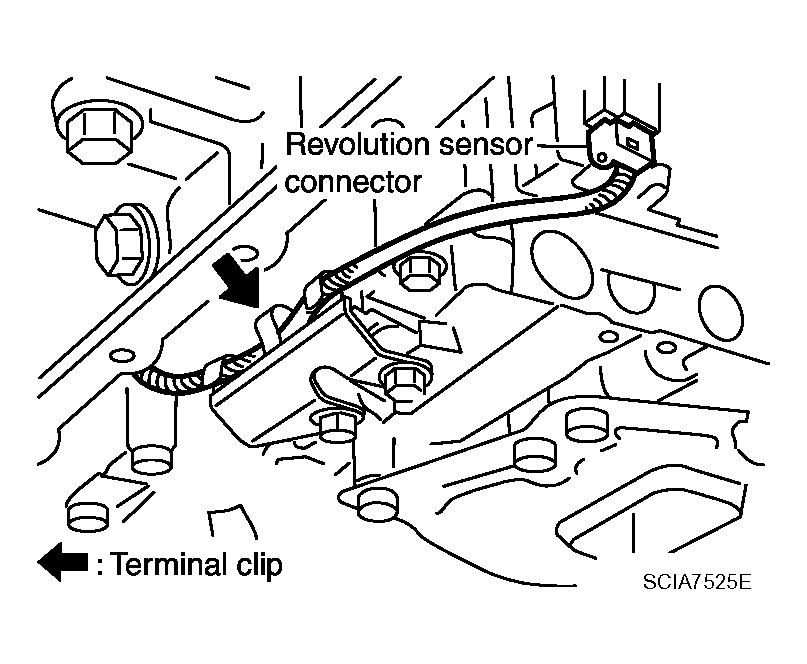

    Fig 3: Fastening Revolution Sensor Harness With Clip
    G04075726Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Apply recommended sealant (Genuine Anaerobic Liquid Gasket or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".) to rear extension assembly as shown in the figure.
    CAUTION: Completely remove all moisture, oil and old sealant, etc. from transmission case and rear extension assembly mounting surfaces.

    For GI, go to GENERAL INFORMATION .

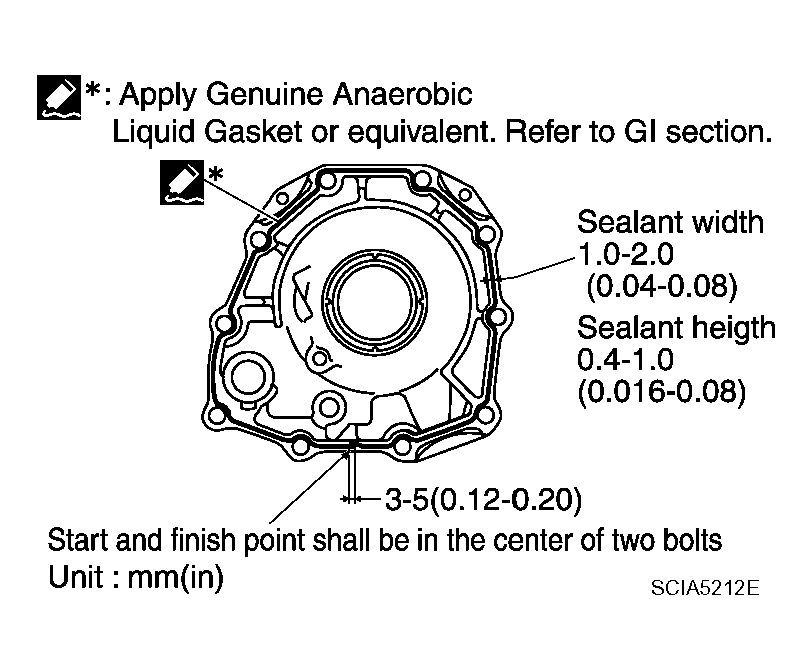

    Fig 4: Identifying Recommended Sealant To Rear Extension Assembly
    G04075727Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install rear extension assembly to transmission case. (With needle bearing.)
    CAUTION: Insert the tip of parking rod between the parking pole and the parking actuator support when assembling the rear extension assembly.
    Fig 5: Installing Rear Extension Assembly To Transmission Case
    G04075728Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Tighten rear extension assembly mounting bolts to specified torque. Refer to "COMPONENTS ".
    CAUTION: Do not reuse self-sealing bolts.
  7. Install rear engine mounting member. Refer to "REMOVAL AND INSTALLATION (2WD MODELS) ".
  8. Install oil pan to transmission case.

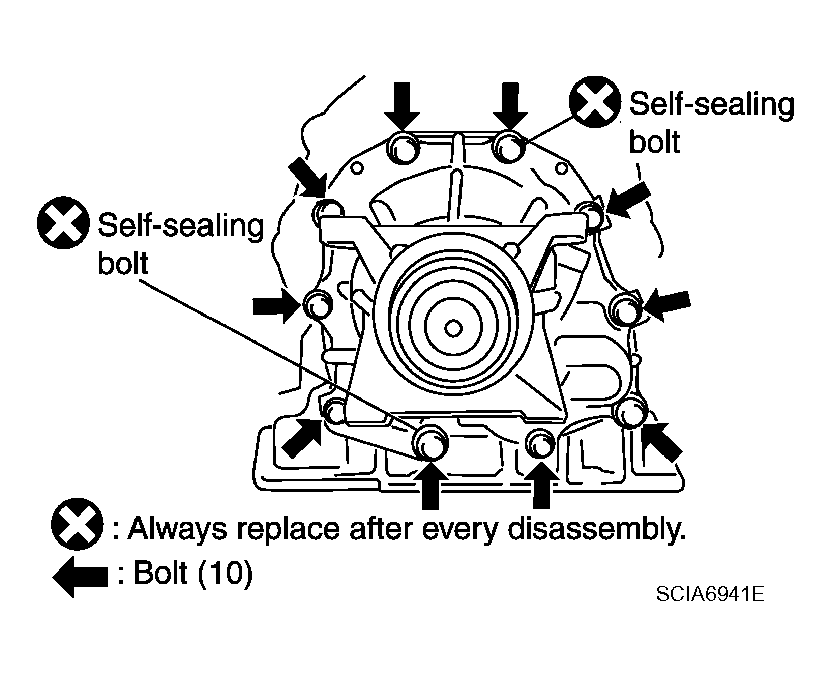

    Fig 6: Identifying Oil Pan Bolts To Transmission Case
    G04075729Courtesy of NISSAN MOTOR CO., U.S.A.
    1. Install oil pan gasket to oil pan.
      CAUTION:
      • Do not reuse oil pan gasket.
      • Install it in the direction to align hole positions.
      • Completely remove all moisture, oil and old gasket, etc. from oil pan mounting surface.
    2. Install oil pan (with oil pan gasket) to transmission case.
      CAUTION:
      • Install it so that drain plug comes to the position as shown in the figure.
      • Be careful not to pinch harnesses.
      • Completely remove all moisture, oil and old gasket, etc. from oil pan mounting surface.

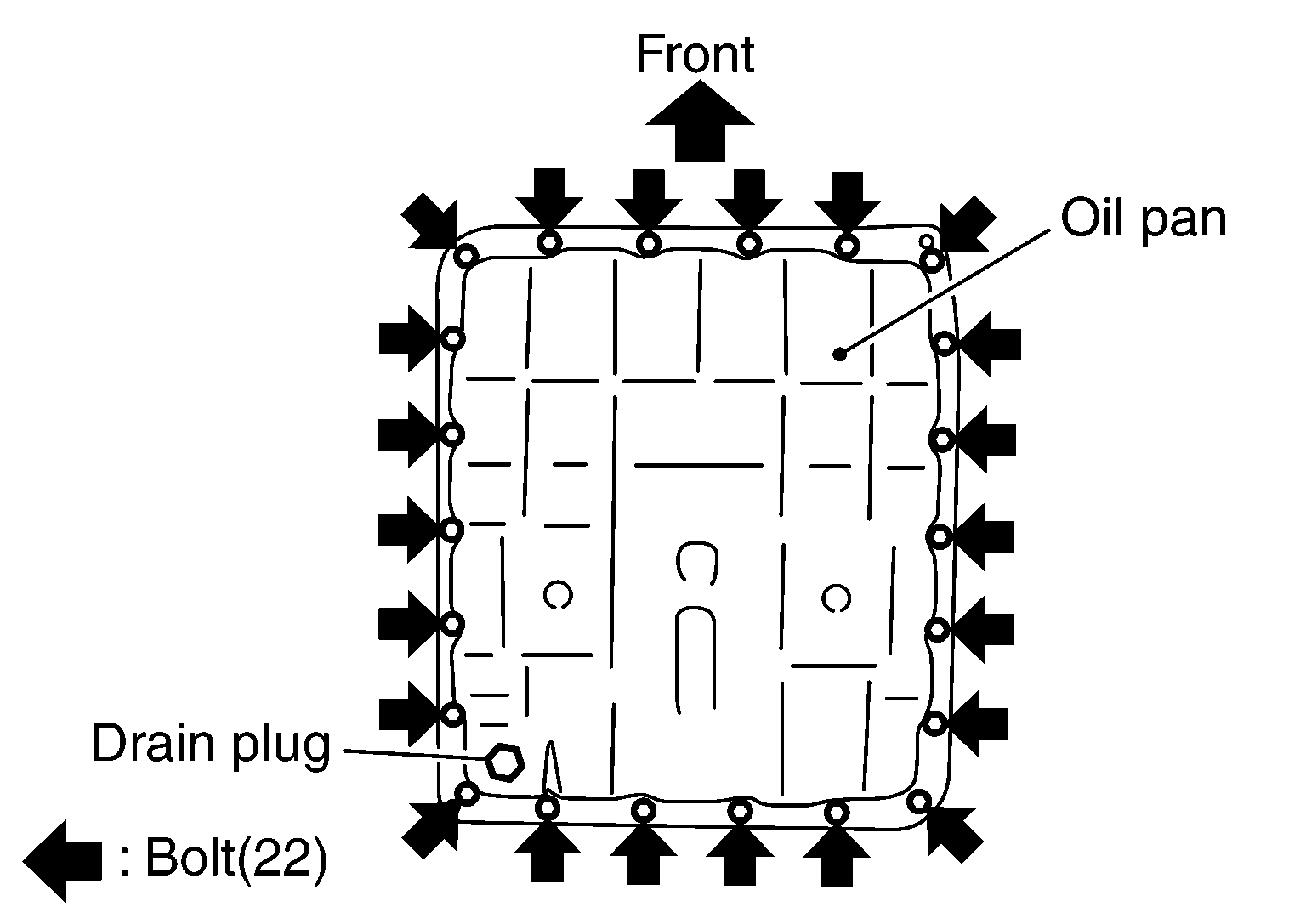

        Fig 7: Identifying Oil Pan Bolts
        G04075672Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure after temporarily tightening them. Refer to "COMPONENTS ".
      CAUTION: Do not reuse oil pan mounting bolts.

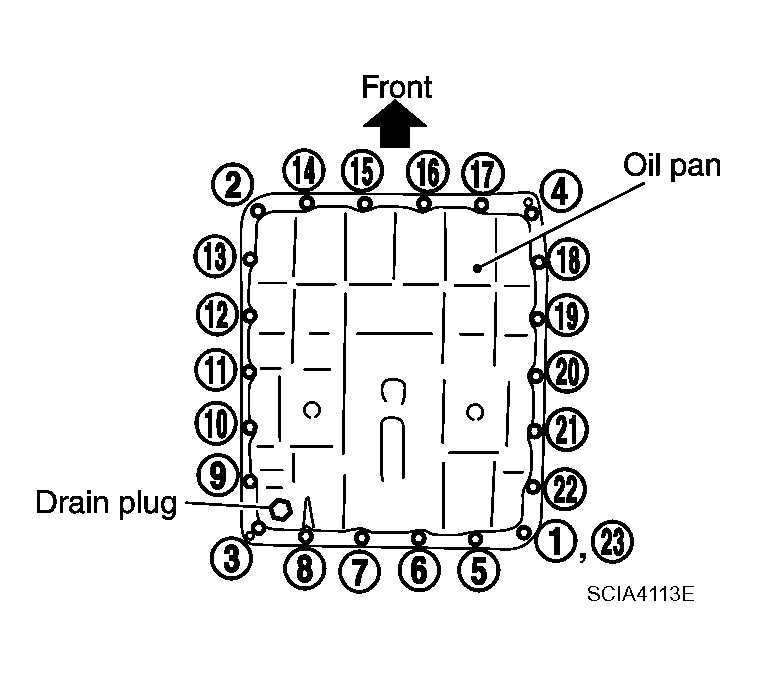

      Fig 8: Identifying Tightening Oil Pan Mounting Bolts In Sequence
      G04075731Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Install drain plug to oil pan, and then tighten drain plug to the specified torque. Refer to "COMPONENTS ".
    CAUTION: Do not reuse drain plug gasket.
  10. Install control rod. Refer to "CONTROL ROD REMOVAL AND INSTALLATION ".
  11. Install rear propeller shaft. Refer to "REMOVAL AND INSTALLATION ".
  12. Install exhaust front tube and center muffler. Refer to "COMPONENTS ".
  13. Install front cross bar. Refer to "REMOVAL AND INSTALLATION ".
  14. Pour ATF into A/T assembly. Refer to "CHANGING A/T FLUID ".
  15. Connect the battery cable to the negative terminal.
