Oil Pump: Components

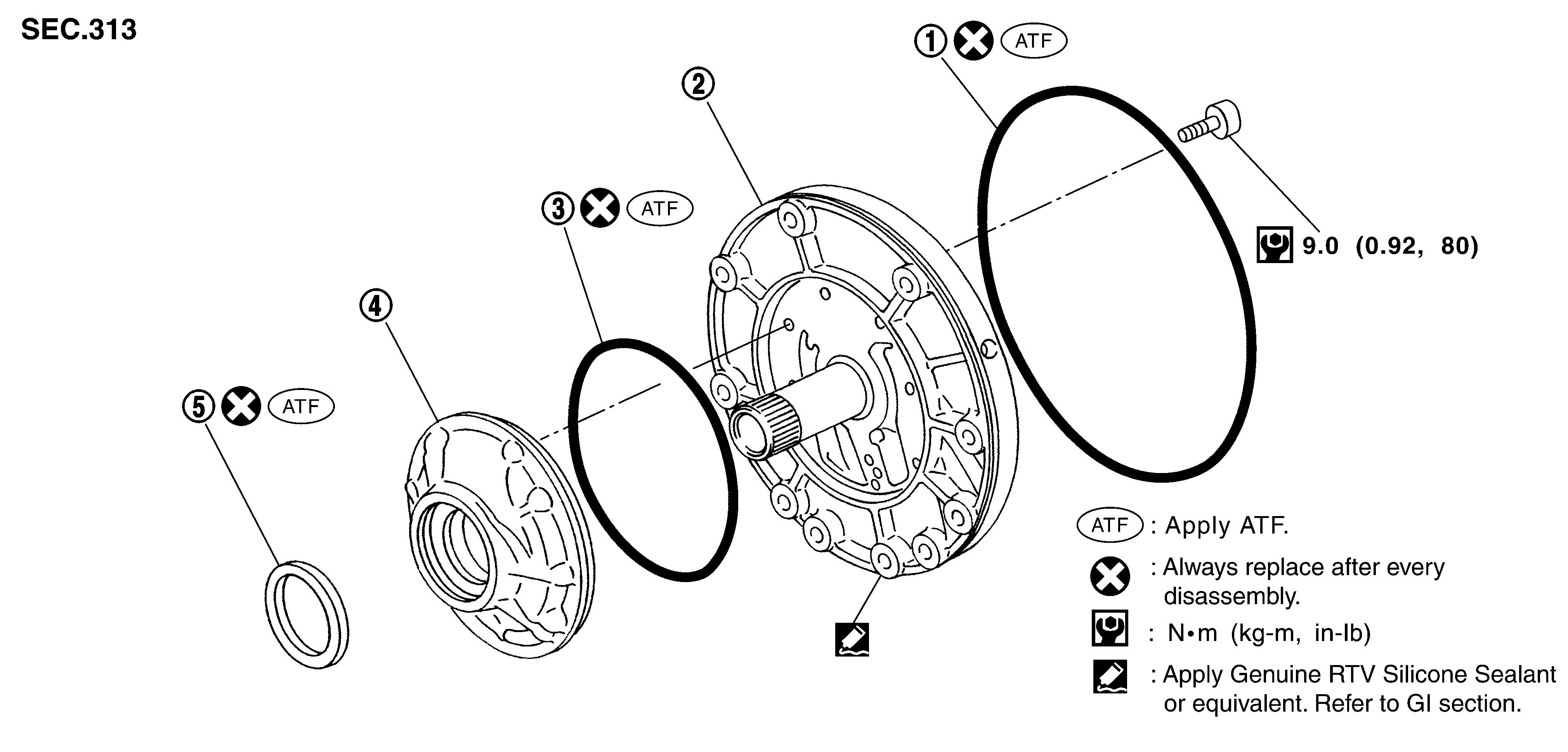

Fig 1: Oil Pump Replacement Components With Torque Specifications
G04075846Courtesy of NISSAN MOTOR CO., U.S.A.
