ASCD Indicator: Wiring Diagram

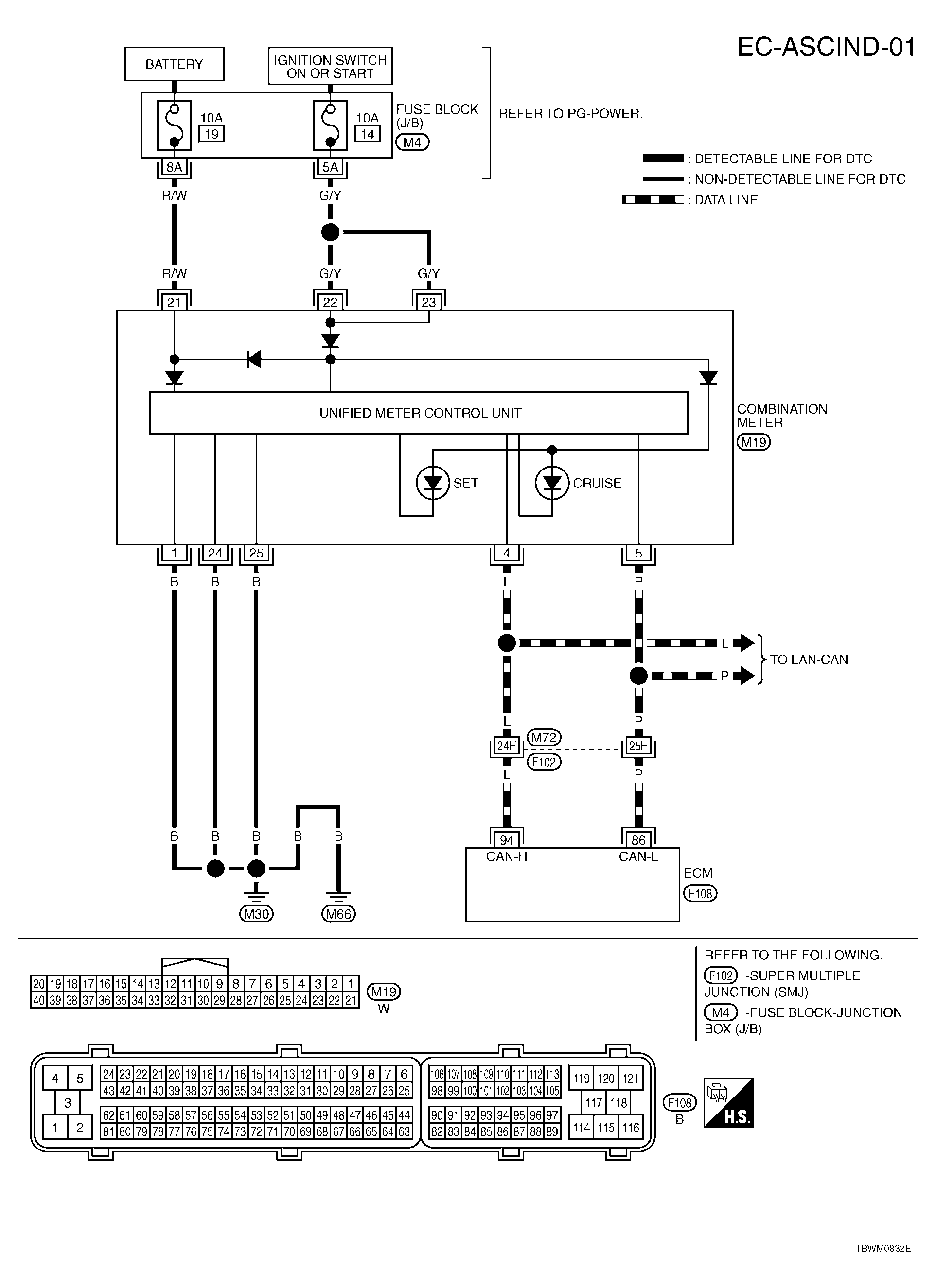

Fig 1: EC-ASCIND-01 - Wiring Diagram

G04180226

Courtesy of NISSAN MOTOR CO., U.S.A.
