Engine Control Component Parts Location (M/T Models)

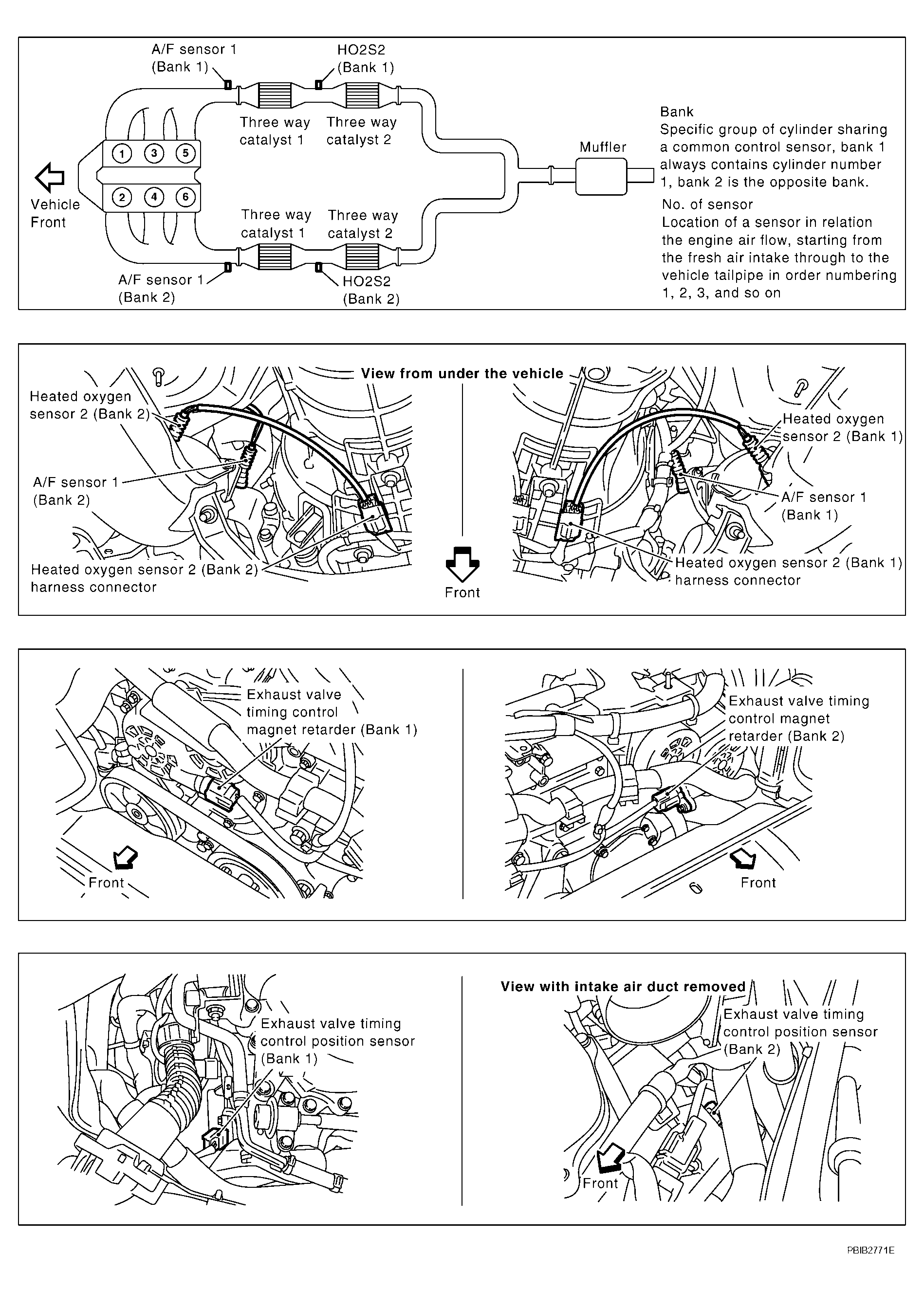

Fig 1: Engine Control Component Parts Location - M/T Models (1 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

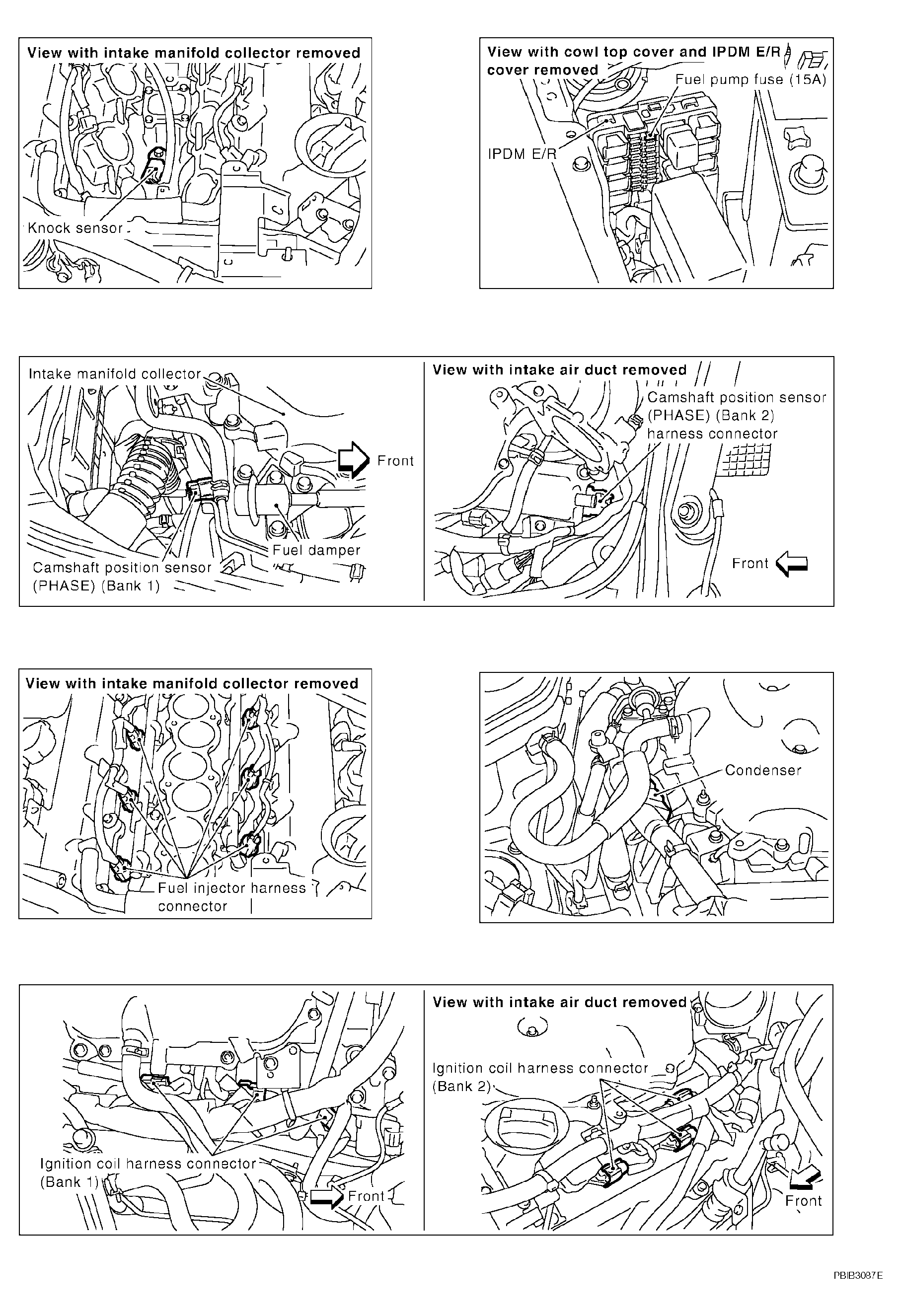

Fig 2: Engine Control Component Parts Location - M/T Models (2 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

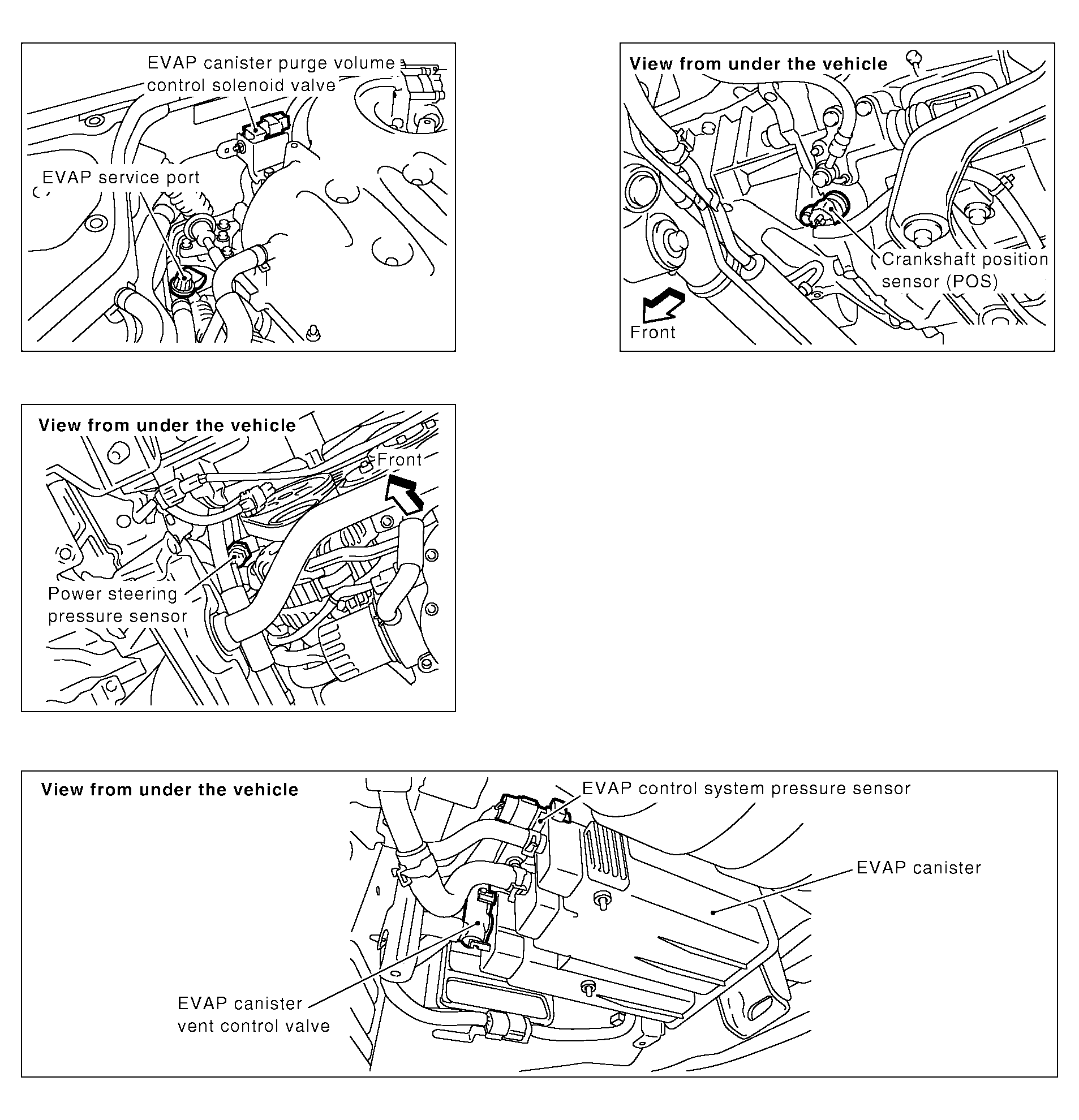

Fig 3: Engine Control Component Parts Location - M/T Models (3 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

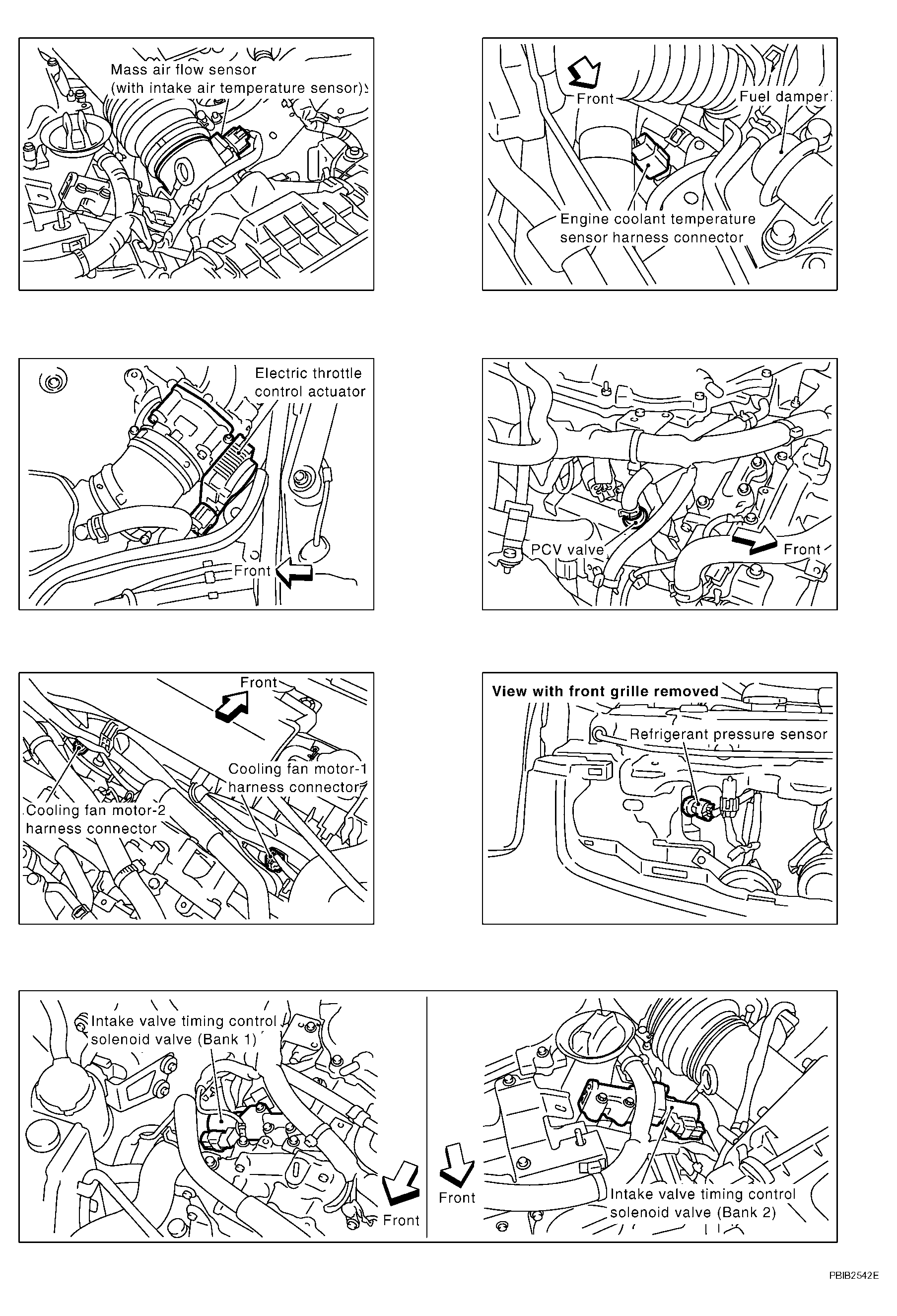

Fig 4: Engine Control Component Parts Location - M/T Models (4 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

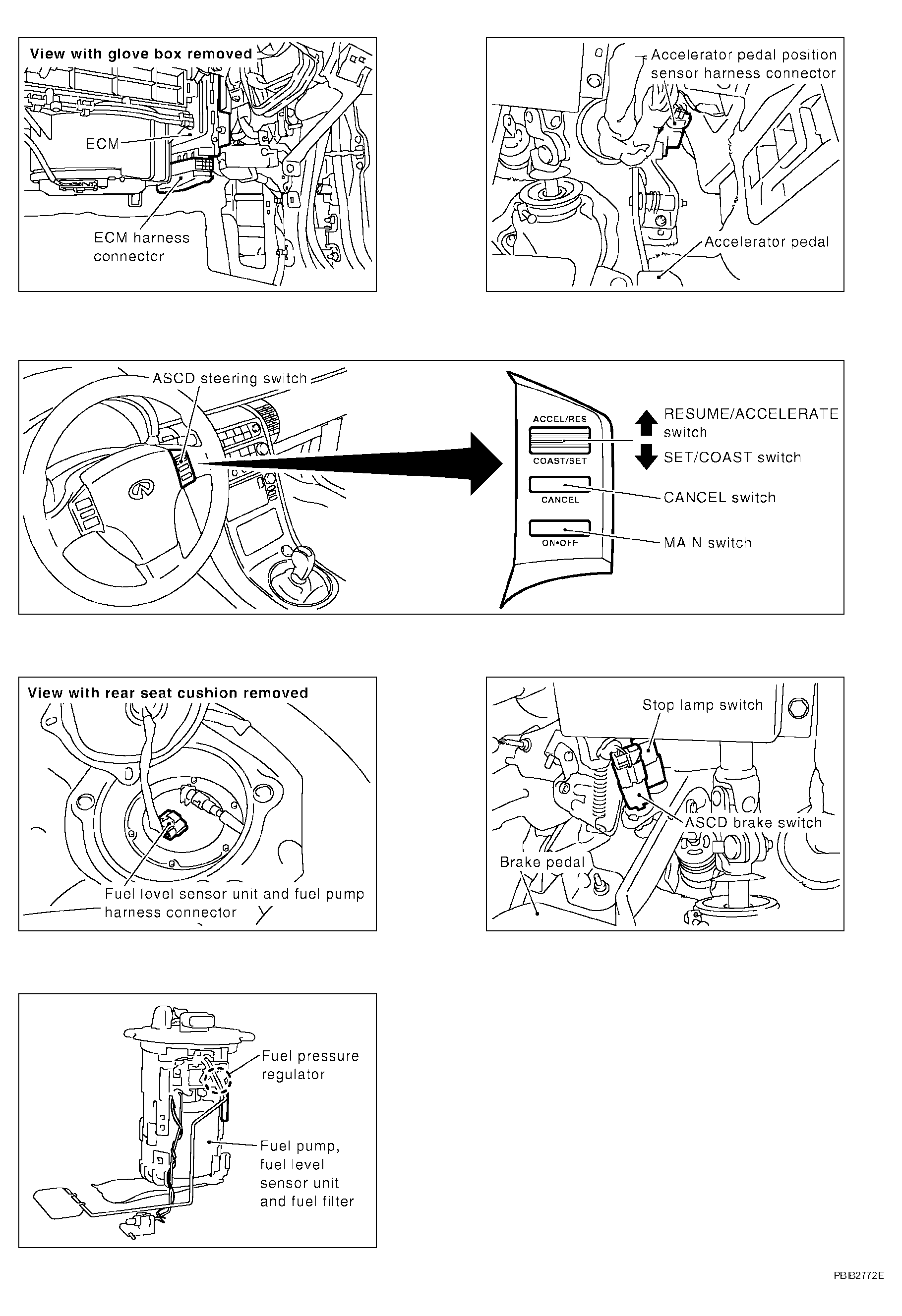

Fig 5: Engine Control Component Parts Location - M/T Models (5 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

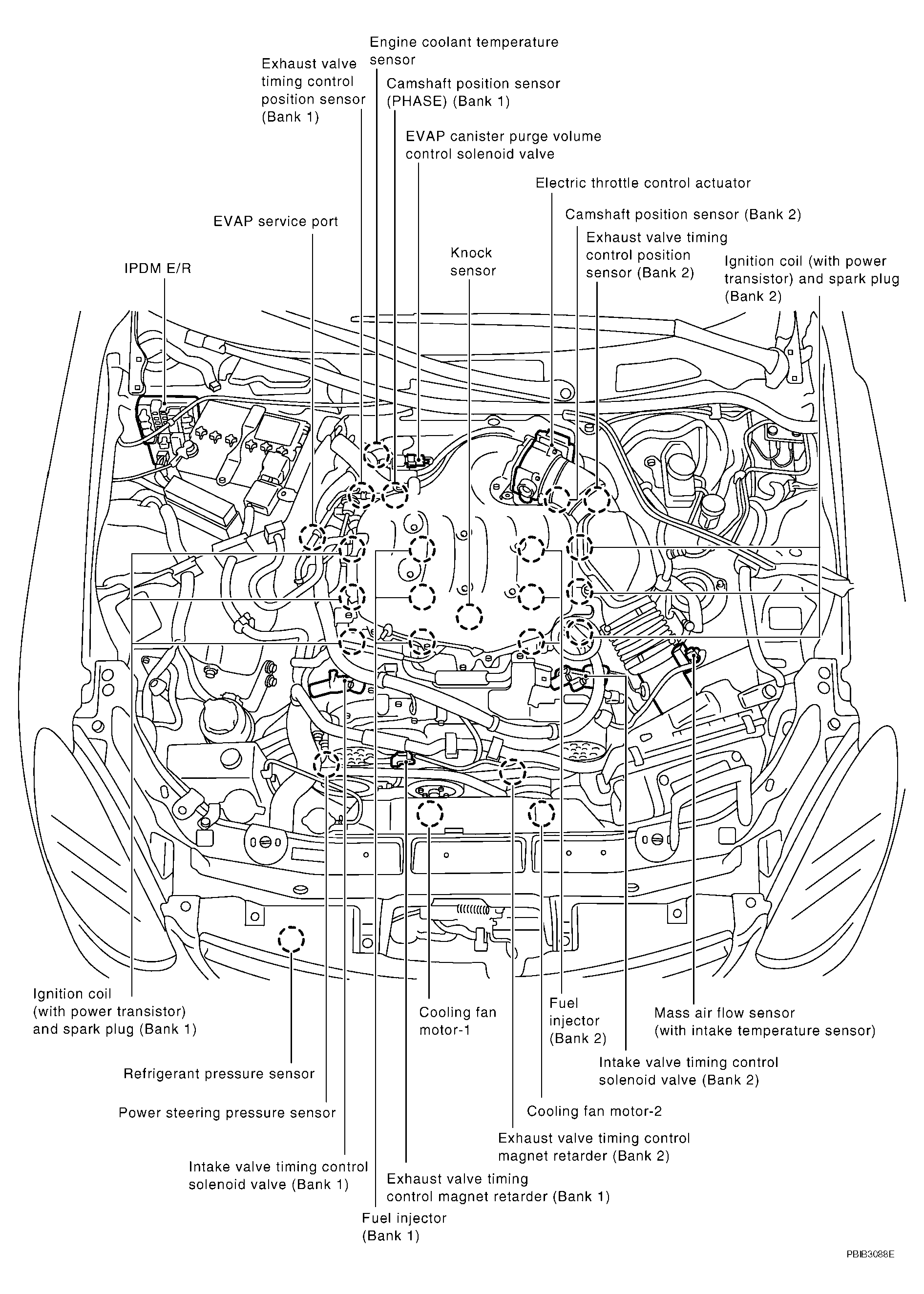

Fig 6: Engine Control Component Parts Location - M/T Models (6 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.
