Aiming Adjustment

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

The fog lamp is a semi-sealed beam type which uses a replaceable halogen bulb. Before performing aiming adjustment, make sure of the following.

Keep all tires inflated to correct pressure.
Place vehicle on level ground.
See that vehicle is unloaded (except for full levels of coolant, engine oil and fuel, and spare tire, jack, and tools). Have the driver or equivalent weight placed in driver seat.

Set the distance between the screen and the center of the fog lamp lens as shown.
Turn front fog lamps ON.
Remove front portion of fender protector(s) for adjustment screw access. Refer to "REAR FENDER PROTECTOR "

Fig 1: Identifying Aiming Adjustment
Courtesy of NISSAN MOTOR CO., U.S.A.
Adjust front fog lamps.
- When performing adjustment, if necessary, cover the headlamps and opposite fog lamp.

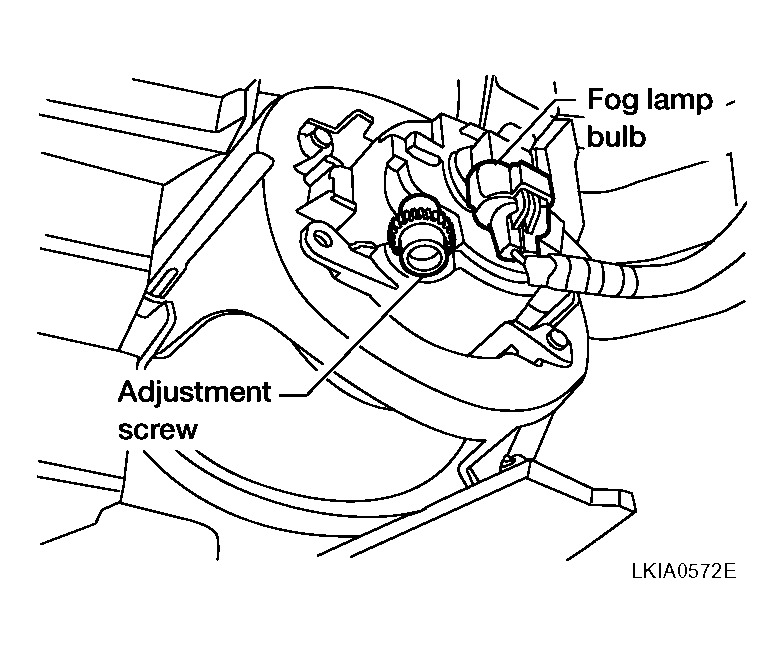

- Adjust aiming in the vertical direction by turning the adjustment screw, as shown.
  NOTE: Use a Phillips screwdriver to adjust. Turn screw clockwise to raise pattern and counterclockwise to lower pattern.

  Fig 2: Adjusting Front Fog Lamps
  Courtesy of NISSAN MOTOR CO., U.S.A.

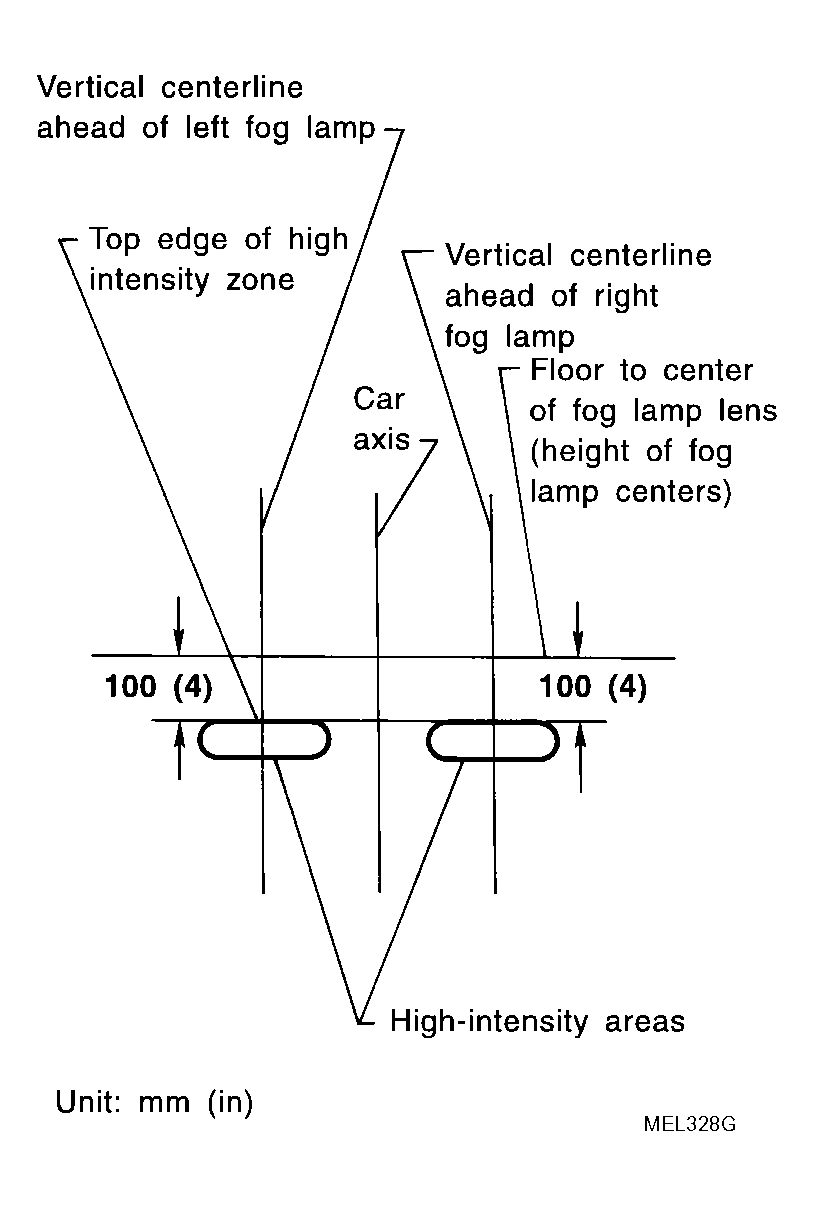

- Use adjustment screw so that the top edge of the high intensity zone is 100 mm (4 in) below the height of the fog lamp centers as shown.
Fig 3: High Intensity Zone Specification
Courtesy of NISSAN MOTOR CO., U.S.A.
